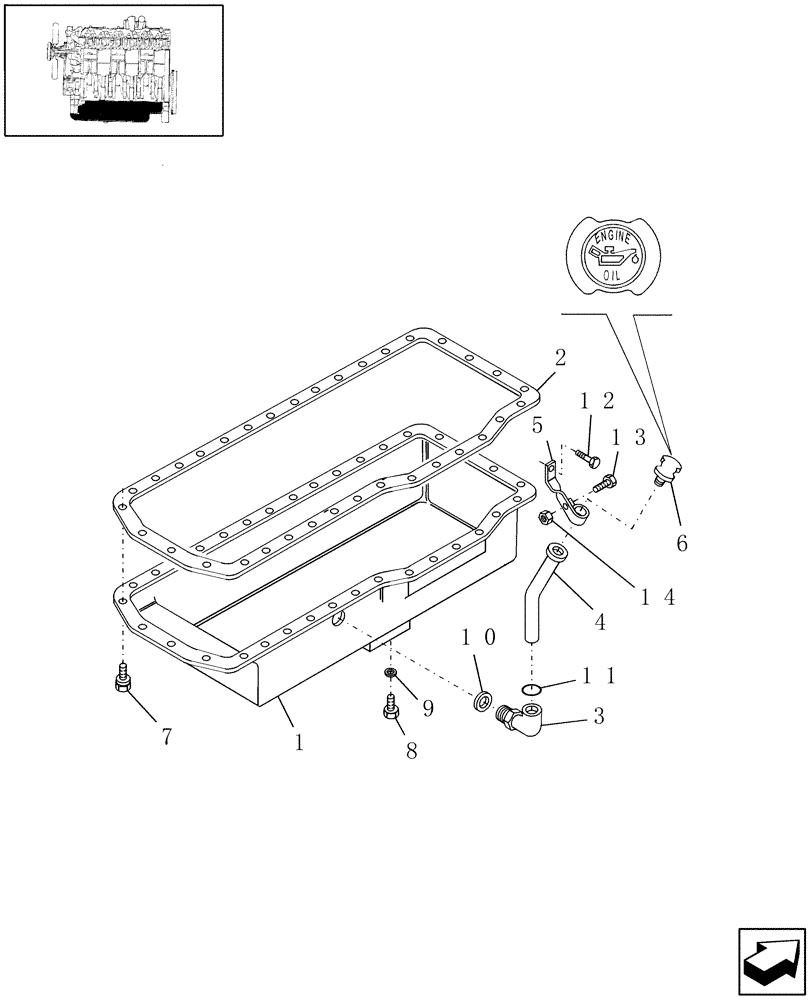

Запчасти Case IH WDX2302 (01.03[1]) - ENGINE OIL PAN (01) - ENGINE

1

87803000

ENGINE OIL PAN

1шт.

2

81876942

OIL PAN GASKET SET,2.79mm Thk

1шт.

3

F2NN6N718AA

ELBOW

1шт.

4

F2NN6N733AA

HYD TUBE,9.5, 2.7" L

Oil Fill

1шт.

5

82014577

BRACKET

Oil Fill Tube

1шт.

6

F3AE6766BA

FILLER CAP

Oil

1шт.

7

81876943

BOLT

Hex Flange Hd., 3/8"-16 UNRC-2A x 3/4"

34шт.

8

C9NN6730B

PLUG

Oil Drain

1шт.

9

C9NN6734A

OIL PAN GASKET SET,19.18mm ID x 25.4mm OD x 1.52mm Thk

3/4" ID x .06" Thk, Drain Plug

1шт.

10

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

11

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

12

56558S36

SCREW

Cap, Flg Hd., G5, 7/16"-14 x 3/4"

3шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

14

87305

JAM NUT,Jam, 1/4"-20, G2

1шт.
