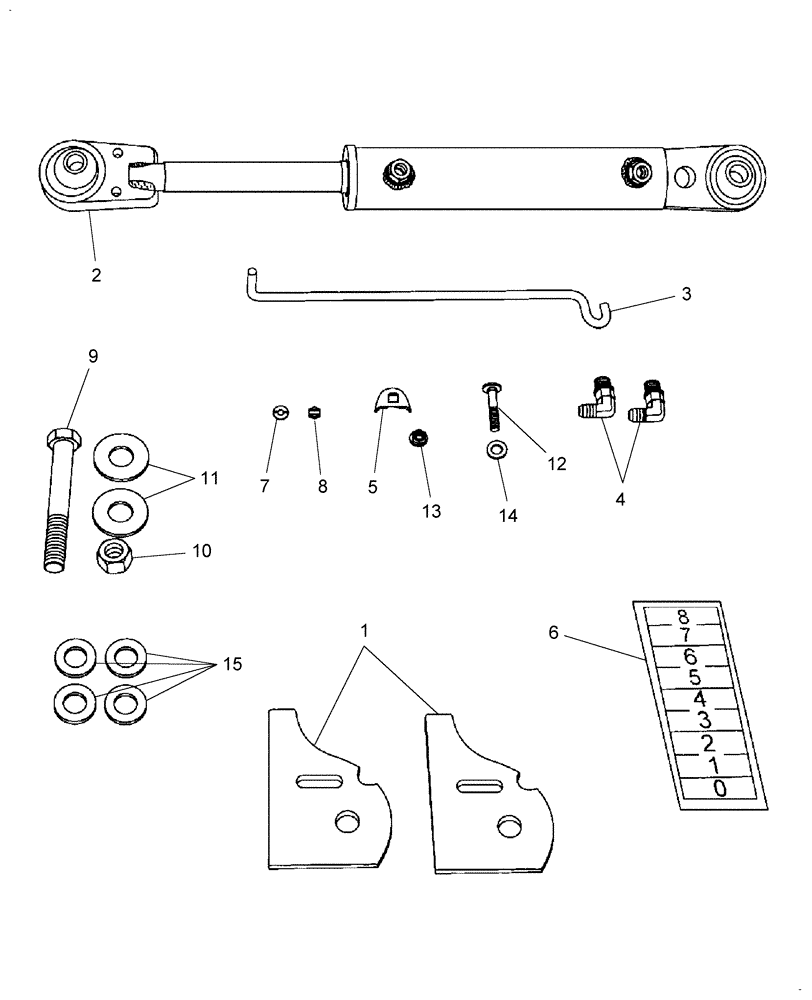

Запчасти Case IH WDX2302 (18.34) - TILT CYLINDER MOUNT REWORK KIT Attachments

84316352

KIT

Tilt Cylinder Mount Rework Kit

1шт.

Includes: Installation Instructions

1шт.

1

84315893

PLATE

2шт.

2

84316389

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

1шт.

3

84221124

ROD

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

5

772028

CLIP

Tine

1шт.

6

84221213

DECAL

1шт.

7

87029579

ORIFICE

Threaded

1шт.

8

261066

ORIFICE,9/16" - 18, 0.813" Orifice

Plate

1шт.

9

9602203

BOLT,Hex, 3/4" x 5", Gr 8

1шт.

10

280375

NUT,3/4"-10, GC

1шт.

11

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

12

86508771

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

1шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

15

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

4шт.
