Запчасти Case IH WDX2302 (18.30[1]) - AUXILIARY HYDRAULIC KIT FOR CROP MERGER Attachments

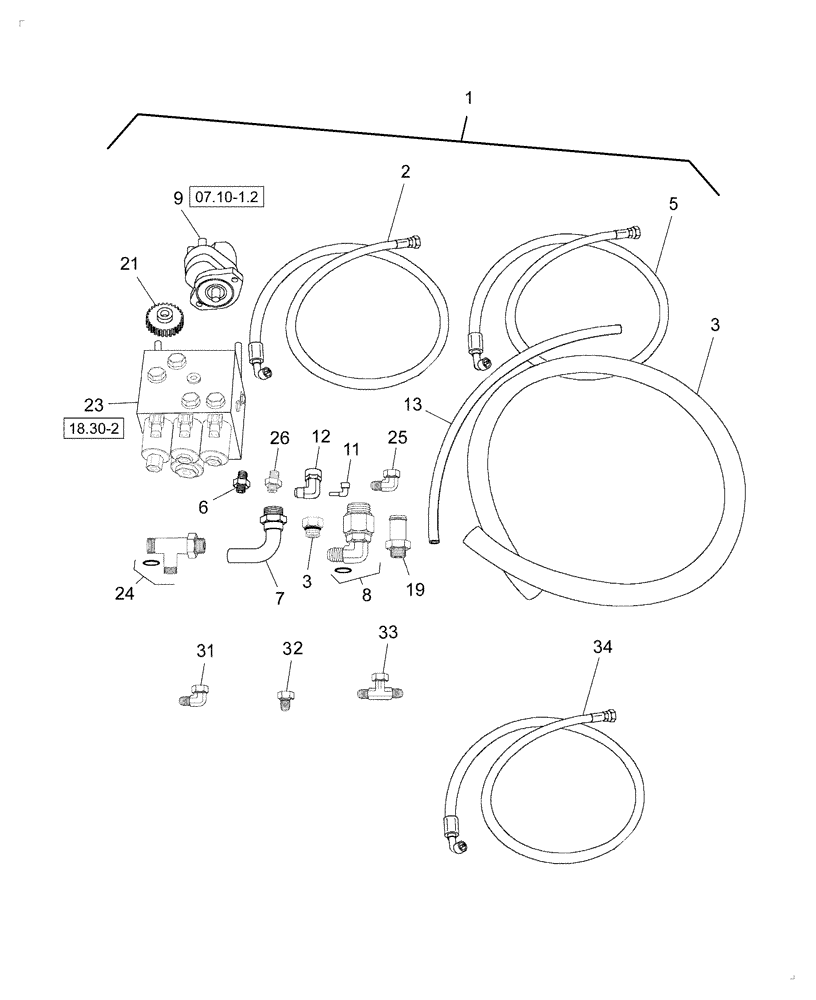

Схема запчастей Case IH WDX2302 - (18.30[1]) - AUXILIARY HYDRAULIC KIT FOR CROP MERGER Attachments
25
31
11
8
1
19
24
13
7
5
26
34
6
2
3
23
3
12
33
32
21
07.10-1.2
18.30-2
9

Артикул

Название

Примечание

Количество

1

87734599

PACKAGE,SERVICE

Auxiliary Hydraulic Kit for Crop Merger

1шт.

2

87028064

HOSE ASSY.

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

4

87027894

HOSE,1.00" ID x 66.00", SAE 100R4

1шт.

5

87028642

HOSE ASSY.

1шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 29

2шт.

7

769309

HYD CONNECTOR

Includes: Ref. 28

1шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Includes:Ref. 27

1шт.

9

86705514

HYDRAULIC PUMP,19.7 CC

Eaton #26007-LAW, Refer to Fig. 07.10-1.2

1шт.

10

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

11

696519

FITTING,90 Degree, 5/16" Hose x 1/4" NPTF, Barbed

1шт.

12

86599528

FITTING

Includes: Ref. 30

1шт.

13

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

1/ARшт.

Cut to fit

1шт.

14

88130

NUT,1/2"-20, GC

1шт.

15

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

82062

HEX SOC SCREW,3/8" - 16 x 1 1/2"

2шт.

18

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

19

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

20

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

21

86503175

GEAR

28T

1шт.

23

84231477

CONTROL VALVE

Refer to Fig. 18.30-2

1шт.

24

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Includes: Ref. 28

1шт.

25

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Includes: Ref. 28

1шт.

26

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Includes: Ref. 28

1шт.

27

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1/ARшт.

Not Illustrated

1шт.

28

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4/ARшт.

Not Illustrated

1шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2/ARшт.

Not Illustrated

1шт.

30

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1/ARшт.

Not Illustrated

1шт.

31

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

32

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

1шт.

33

86513017

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.

34

84130830

HOSE

Hydraulic, 28" Long

1шт.
