Запчасти Case IH WDX2302 (18.29) - REAR SUSPENSION DAMPENER KIT Attachments

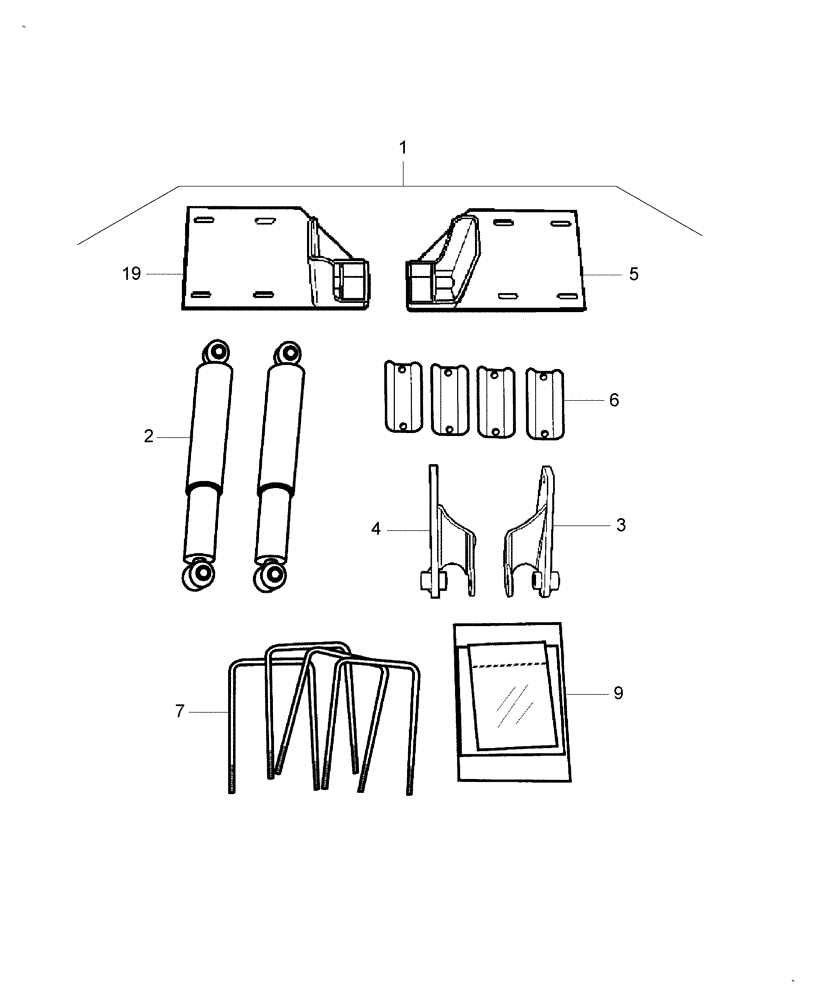

Схема запчастей Case IH WDX2302 - (18.29) - REAR SUSPENSION DAMPENER KIT Attachments
2
6
9
5
3
19
1
4
7

Артикул

Название

Примечание

Количество

1

87643624

KIT

Rear Suspension Dampener, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87645158

SHOCK ABSORBER

1шт.

3

87742874

SUPPORT

RH

1шт.

4

87742873

SUPPORT

LH

1шт.

5

87733460

BRACKET

RH

1шт.

6

87627685

CHANNEL

4шт.

7

87627435

U-BOLT

4шт.

8

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

LH

1шт.

Not Illustrated

1шт.

9

87052834

DECAL

ATTENTION

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

Not Illustrated

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

Not Illustrated

1шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

Not Illustrated

1шт.

13

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

Not Illustrated

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.

Not Illustrated

1шт.

15

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

Not Illustrated

1шт.

16

280954

NUT,3/4"-10, G5

4шт.

Not Illustrated

1шт.

19

87733176

BRACKET

LH

1шт.

20

86622574

SPACER

1шт.

Not Illustrated

1шт.

21

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

Not Illustrated

1шт.

22

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

Not Illustrated

1шт.

23

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

Not Illustrated

1шт.

Выбрано товаров: 34
