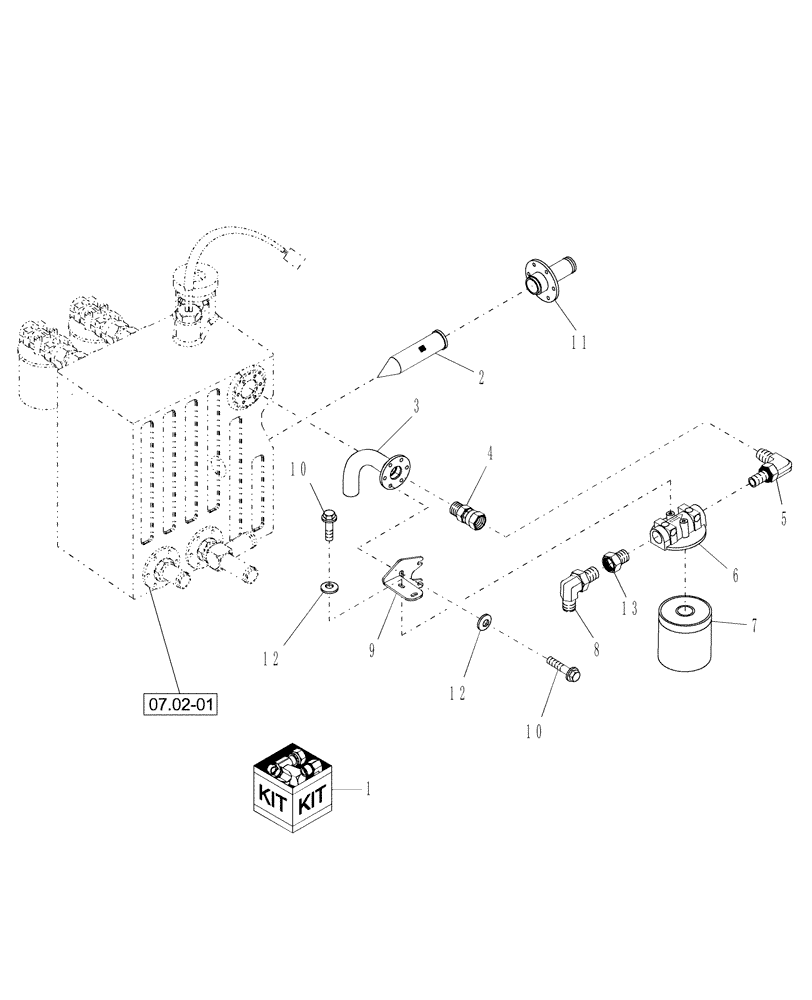

Запчасти Case IH WDX2302 (18.15) - AUXILIARY HYDRAULIC FILTER KIT, USE WITH PLASTIC OIL TANK Attachments

1

717211006

DIA KIT, HARVESTER

Auxiliary Hydraulic Filter; Includes: Ref. 2 - 14

1шт.

2

87046629

STRAINER ASSY.

1шт.

3

87016515

ADAPTER

1шт.

4

87027929

SWIVEL CONNECTION

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. O-Ring

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

86514933

HOUSING

1шт.

7

86632018

HYDRAULIC OIL FILTER

1шт.

8

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: O-Ring

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

87028115

BRACKET

1шт.

10

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

11

87049715

FITTING

Straight

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

86550731

REDUCER

Includes: O-Ring

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
