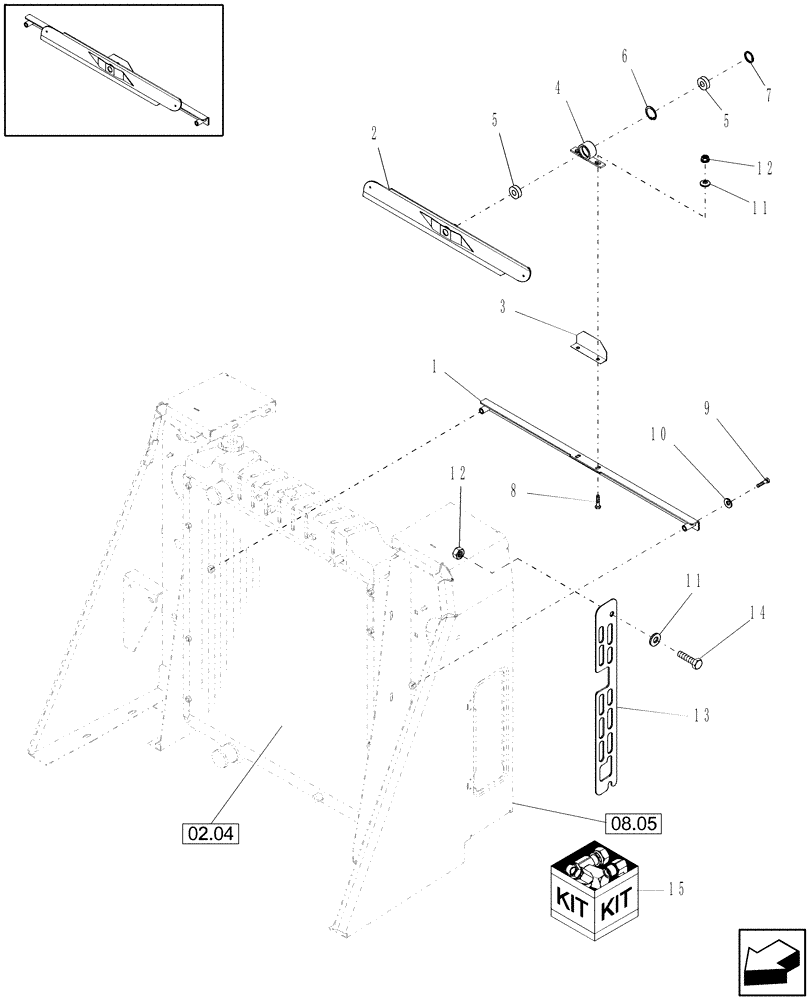

Запчасти Case IH WDX2302 (18.09) - CHAFF WIPER FAN KIT Attachments

1

87011272

BRACKET

1шт.

2

87011270

SHAFT ASSY.

1шт.

3

86626175

ANGLE

1шт.

4

86626655

BRACKET

1шт.

5

308803

BALL BEARING

2шт.

6

100-21137

SNAP RING,1.375", Int, #137

1шт.

7

100-1159

SNAP RING,#59, Ext

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

13

87054960

SHIELD

1шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

15

87022820

KIT

Chaff Wiper Fan; Includes: Ref. 1 - 8 & 10 - 14

1шт.
