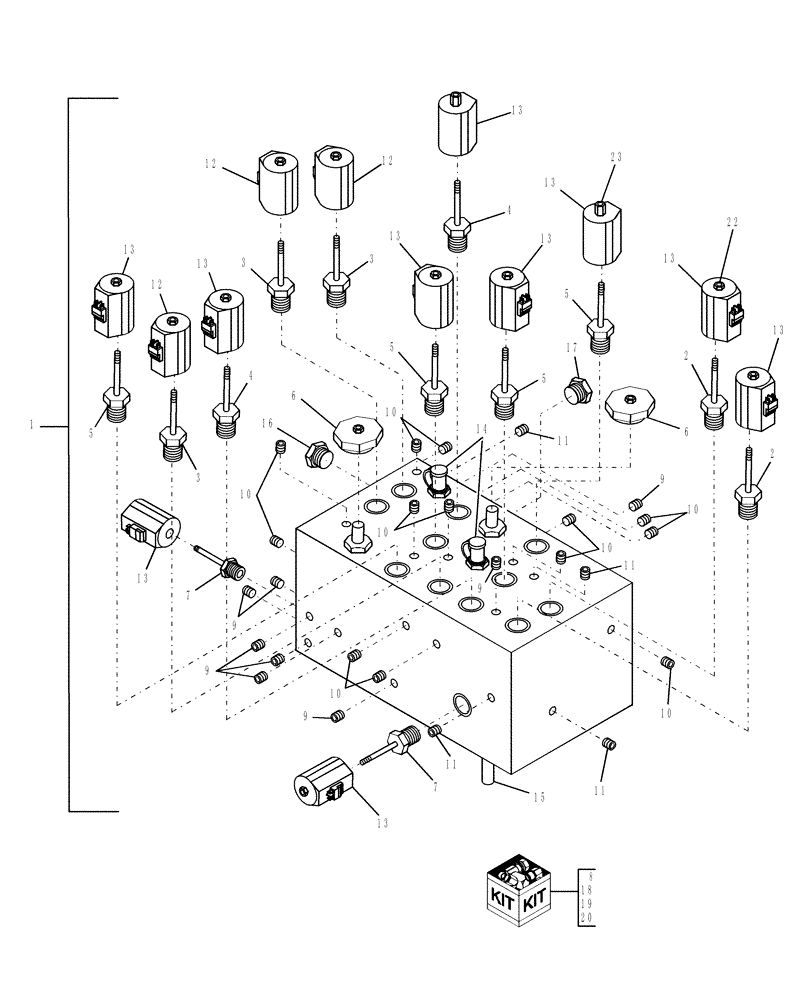

Запчасти Case IH WDX2302 (09.03[02]) - MANIFOLD, INDEPENDENT, COMPONENTS (09) - IMPLEMENT LIFT

1

87548448

CONTROL VALVE

Independent Control

1шт.

47773034R

REMAN-HYD VALVE

Reman Independent Control Valve

1шт.

47773034C

CORE-VALVE HYD

Return Number

1шт.

2

86509019

CONTROL VALVE

Parking Brake

2шт.

3

87740293

SOLENOID VALVE

See Also: Ref. 20

3шт.

4

87023285

VALVE PRESSURE RELIE

See Also: Ref. 19

2шт.

5

87436627

VALVE

See Also: Ref. 18

4шт.

6

87023284

NEEDLE VALVE

See Also: Ref. 20

2шт.

7

87738736

SOLENOID VALVE

(SRV); See Also: Ref.s 8 & 21

2шт.

8

87026589

SEAL KIT

Services: Ref. 7

1шт.

9

9625178

PLUG,9/16" - 18 ORB

8шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

10

87035062

PLUG,Hex, 1/2"-20 ORB

13шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

11

71100209

PLUG,Hex Soc, 3/4"-16 ORB

4шт.

Replaces 82024970

1шт.

12

86977988

SOLENOID VALVE

3шт.

13

86837739

SOLENOID VALVE

10шт.

14

87026252

ASSEMBLY

Includes: Dust Cap & O-Ring Which are not serviced separately

2шт.

15

NS

NOT SERVICED

Threaded Stud

3шт.

16

76349

PLUG,9/16" - 18 ORB

1шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

17

214389

PLUG,3/4" - 16 ORB

1шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

18

86508168

SEAL KIT

Services: Ref. 5

1шт.

19

86509023

SEAL KIT

Services: Ref. 4

1шт.

20

86978349

SEAL KIT

Services: Ref. 3 or 6

1шт.

21

87360183

KIT

Valve Wrench; Services: Ref. 7

1шт.

22

590907

NUT

1/2"-20, 11/64" High

1шт.

23

86516836

NUT

1/2"-20, 5/8" High

1шт.
