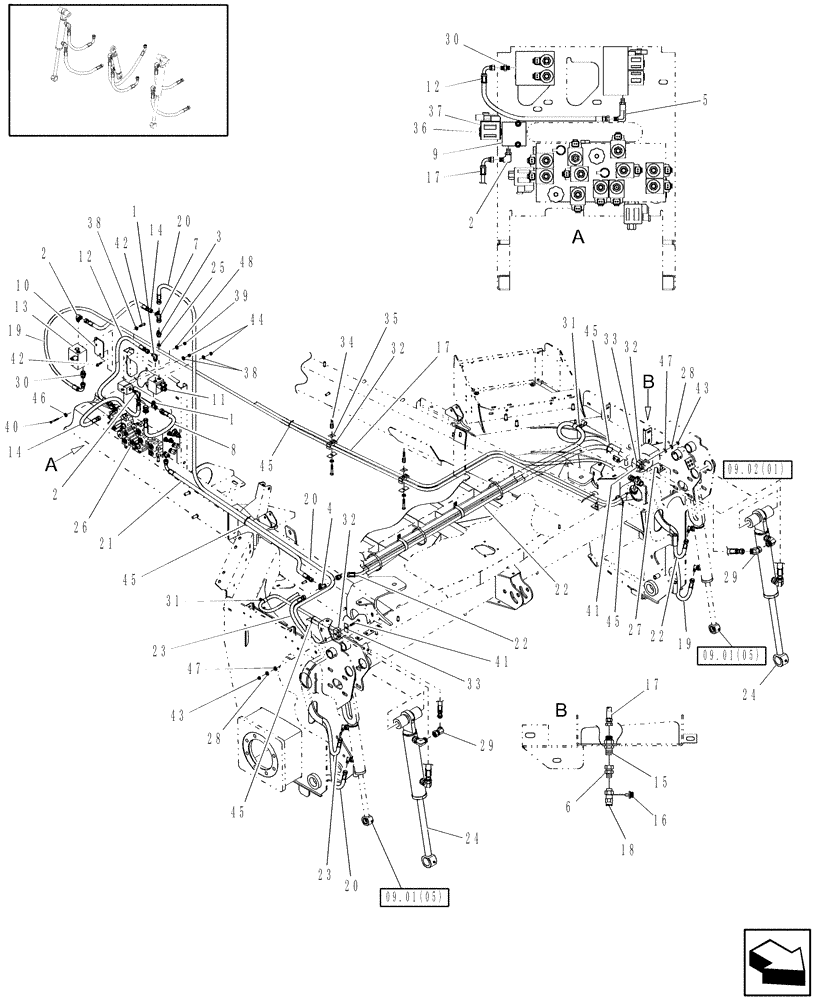

Запчасти Case IH WDX2302 (09.02[6]) - DRAPER HYDRAULICS (09) - IMPLEMENT LIFT

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

2

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

5

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

6

9601709

HYD CONNECTOR

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

87055315

HOSE,0.38" ID x 18.00"

1шт.

9

87039638

HOUSING

1шт.

10

87044567

PLATE

Plate

1шт.

11

87545542

CONTROL VALVE

For Component Breakdown, See Fig. 09.06

1шт.

12

87058223

HOSE ASSY.

2шт.

13

87398498

HYDRAULIC VALVE

Valve, Flow Divider; For Component Breakdown, See Fig. 09.10

1шт.

14

87058225

HOSE,0.38" ID x 16.00", SAE 100R16

2шт.

15

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

16

87036368

DUST CAP

1шт.

17

87043583

HOSE ASSY.

1шт.

18

87050045

COUPLING, QUICK, FEM

1шт.

19

87054718

HOSE ASSY.

1шт.

20

87054719

HOSE ASSY.

1шт.

21

87054720

HOSE ASSY.

1шт.

22

87054721

HOSE ASSY.

1шт.

23

87054722

HOSE,0.38" ID x 54.50", SAE 100R6

1шт.

24

87547927

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 266.7mm Stroke

2.75" x 10.50", For Component Breakdown, See Fig. 09.01[03.2]

2шт.

25

705914

ORIFICE

1шт.

26

0C

ORDER COMPONENTS

Manifold; For Component Breakdown, See Fig. 09.03[01.2]

1шт.

27

86516805

SOFT TRIM,31-3/4" L

L = 31-3/4" (12" Needed)

1шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

29

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

30

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

31

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

32

86563609

CLAMP

4шт.

33

87053042

PLATE

2шт.

34

86564908

BOLT

2шт.

35

86564909

WASHER

2шт.

36

87740293

SOLENOID VALVE

1шт.

37

87352777

SOLENOID

1шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

39

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

40

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

41

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

42

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

43

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

44

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.

45

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

46

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

47

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

48

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.
