Запчасти Case IH WDX2302 (07.06[1]) - HYDRAULIC HEADER DRIVE (07) - HYDRAULIC SYSTEM

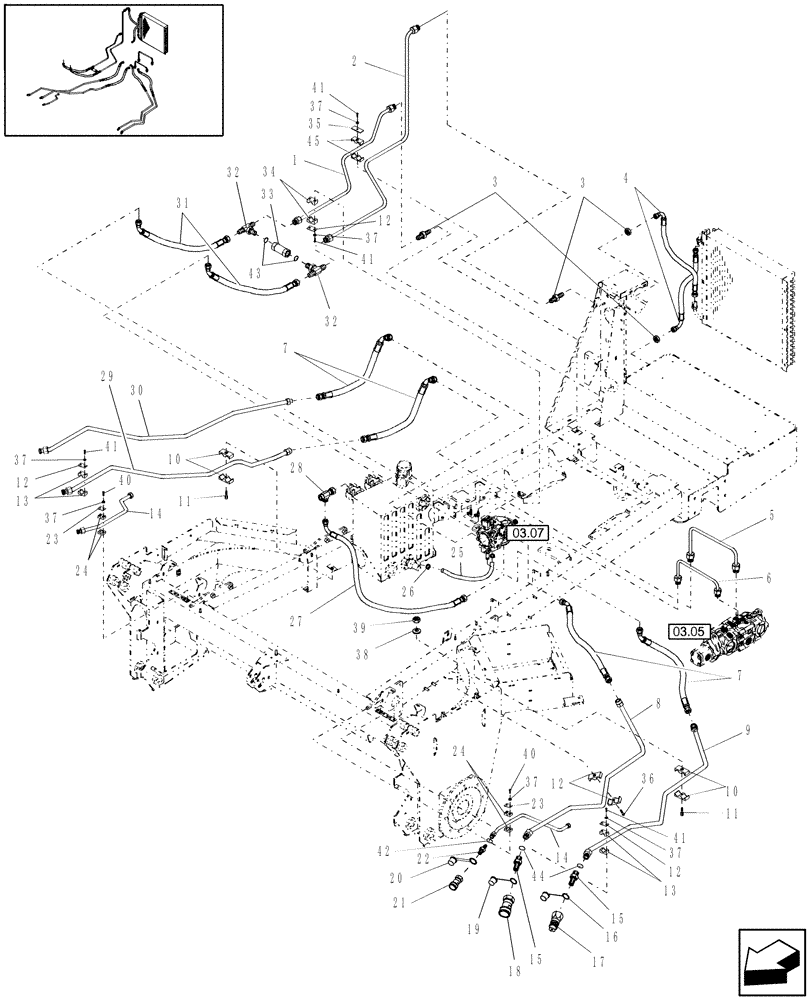

Схема запчастей Case IH WDX2302 - (07.06[1]) - HYDRAULIC HEADER DRIVE (07) - HYDRAULIC SYSTEM
10
29
41
20
28
8
16
7
15
11
34
12
12
9
18
37
14
37
4
26
41
36
7
40
3
24
5
12
12
37
37
32
3
27
39
41
17
37
15
10
19
43
35
6
38
13
14
33
44
23
31
11
21
41
45
40
32
42
1
25
37
13
30
22
23
24
2

Артикул

Название

Примечание

Количество

1

86974204

TUBE,0.75" OD

1шт.

2

86974203

TUBE,15.75 mm ID x 19.05 mm OD

1шт.

3

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

4

86979925

HOSE ASSY.

2шт.

5

87011455

TUBE,15.88 mm OD

1шт.

6

87011454

TUBE,15.88 mm OD

1шт.

7

86705061

HOSE ASSY.,19.05mm ID x 533.4mm L, SAE 100R13

4шт.

8

86638966

TUBE,25.40 mm OD

1шт.

9

86638967

TUBE,25.40 mm OD

1шт.

10

86900725

CLAMP

Twin

4шт.

11

86564908

BOLT

Twin Stacking

2шт.

12

86900727

COVER

Plate

5шт.

13

87022323

CLAMP,25.4mm D Clamping Pipe

Plastic

4шт.

14

86974207

TUBE,12.57 mm ID x 15.87 mm OD

2шт.

15

201-137

HYD CONNECTOR,2"-12 ORFS x 1 8/8"-12 ORB

4шт.

16

87036367

DUST CAP

Black, 3/4"

2шт.

17

9820148

COUPLING,1-1/16" - 12

Male

2шт.

18

86564734

COUPLING

2шт.

19

87036366

DUST CAP

Black, 3/4"

2шт.

20

87036368

DUST CAP

Black, 1/2"

2шт.

21

87037009

COUPLING, QUICK, FEM

2шт.

22

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 42

2шт.

23

86900726

COVER

Plate

2шт.

24

87040663

CLAMP

Plastic, 5/8"

2шт.

25

87017798

HOSE,1.25" ID x 15.50", SAE 100R4

1шт.

26

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

27

87027891

HOSE

1шт.

28

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

29

86638965

TUBE,25.40 mm OD

1шт.

30

86638964

TUBE,25.40 mm OD

1шт.

31

86979931

HOSE ASSY.

2шт.

32

248978

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Includes: Ref. 43

2шт.

33

86900234

BY-PASS VALVE

1шт.

34

86900723

CLAMP

Plastic, 3/4"

1шт.

35

87053042

PLATE

Cover

1шт.

36

61-33128

HEX SOC SCREW,5/16"-18 x 1 3/4"

2шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

15шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

39

232-4145

LOCK NUT,5/16"-18, GC

2шт.

40

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

41

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

11шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

44

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

45

86563609

CLAMP

1шт.

Выбрано товаров: 45
