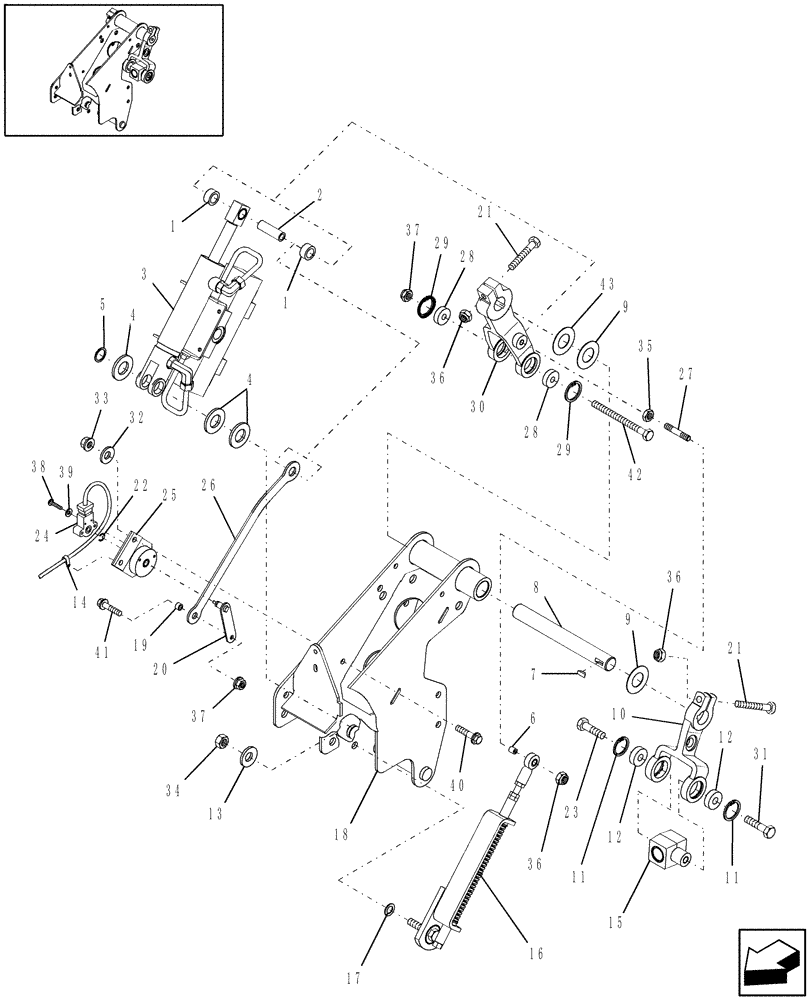

Запчасти Case IH WDX2302 (07.05[01]) - CONTROL, PROPULSION (07) - HYDRAULIC SYSTEM

1

76615

SPACER

2шт.

2

86581135

SPACER

1шт.

3

0C

ORDER COMPONENTS

Cylinder, Hydraulic, Refer Fig. 07.05[04]

1шт.

4

495-11066

WASHER,5/8", SAE

3шт.

5

100-1187

SNAP RING,#87, Ext

1шт.

6

39088

SPACER

1шт.

7

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

2шт.

8

86974056

SHAFT

1шт.

9

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

2/ARшт.

10

9842704

ARM

1шт.

11

800-2132

SNAP RING,M32, Int

2шт.

12

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

15

87051882

JOINT

Shift

1шт.

16

0C

ORDER COMPONENTS

Spring, Centering, Refer To Fig. 07.05[03]

1шт.

17

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1шт.

18

87025101

SUPPORT

1шт.

19

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

20

86974816

SHAFT

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

22

100-3437

SNAP RING,#37, Ext

1шт.

23

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

87035168

POTENTIOMETER,4.5 VDC-5.5 VDC

Dual Hall Effect

1шт.

25

87031162

MOUNTING PARTS

1шт.

26

87014463

STRAP

1шт.

27

86506700

STUD

1шт.

28

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

2шт.

29

100-21118

SNAP RING,1.188", Int, #118

2шт.

30

86974123

ARM

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

33

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

34

825-1412

NUT,M12, Cl 8

1шт.

35

86509499

JAM NUT,3/8"-16, G2

1шт.

36

232-4146

NUT,3/8"-16, GC

3шт.

37

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

38

490-11016

SCREW,Cross Pan Hd, #10-32 x 1"

2шт.

39

492-11010

LOCK WASHER,#10

2шт.

40

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

41

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

42

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

43

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

3/ARшт.
