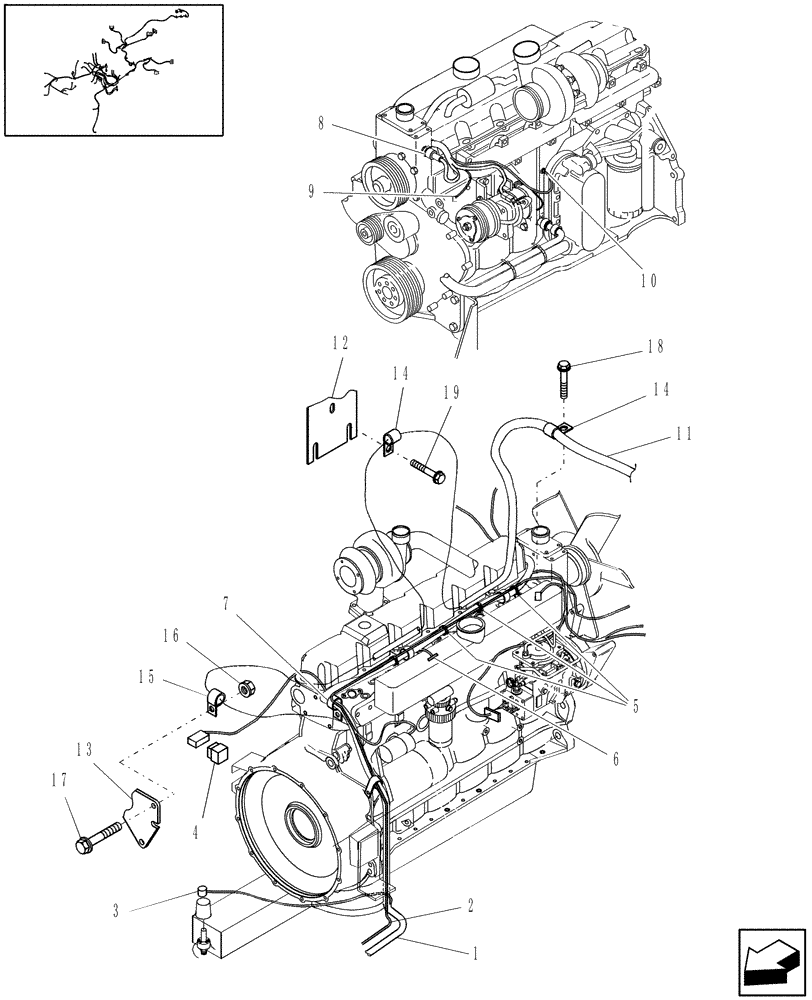

Запчасти Case IH WDX2302 (06.04[1]) - ENGINE ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

87042154

HARNESS

Wire, Battery Ground

1шт.

2

87039576

HARNESS

Wire, Main Frame

1шт.

Non-Draper Option

1шт.

2

87346282

WIRE HARNESS

Main Frame

1шт.

Draper Option

1шт.

Includes: Harnesses 87039576, 87041305, 87054010, 87054011, 87041193, & 87054857

1шт.

3

86534287

PRESSURE SWITCH

Hydraulic Charge

1шт.

4

86837855

RESTRICTION SWITCH

Air Cleaner Restriction

1шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

6

82017873

SENSOR

Engine Boost, Temp/Press.

1шт.

7

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

82017881

SENSOR

Engine Coolant Temp

1шт.

9

82030048

SENSOR

Engine Speed

1шт.

10

82028130

PRESSURE SWITCH

Engine Oil Pressure

1шт.

11

87022151

HARNESS

1шт.

12

87031919

SUPPORT ASSY.

1шт.

13

87036308

SUPPORT

1шт.

14

239859

CLAMP

2шт.

15

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.
