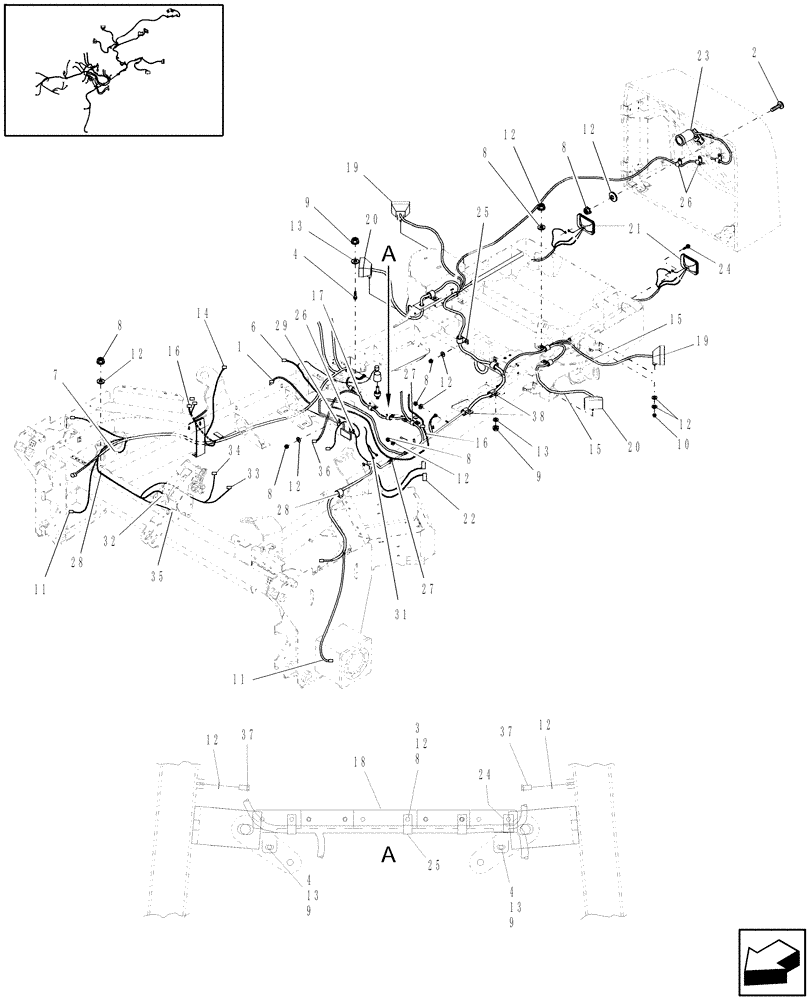

Запчасти Case IH WDX2302 (06.03[1]) - REAR FRAME ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

86550810

SWITCH

1шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

7шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Shown, Use One Every 12", Or Only as Needed

54шт.

6

86837739

SOLENOID VALVE

Header, Forward/Reverse

1шт.

7

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

17шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

11

9825943

SENSOR

Ground Speed

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

14

87000228

SWITCH, A/C LOW PRES

1шт.

15

86500924

GROMMET

5шт.

16

9849562

PRESSURE SWITCH

ATC High

1шт.

17

87039576

HARNESS

Main Frame

1шт.

Non-Draper Option

1шт.

Prior To 12/06

1шт.

17

87575161

WIRE HARNESS

Harness, Main Frame

1шт.

Non-Draper Option

1шт.

From 12/06

1шт.

17

87346282

WIRE HARNESS

Main Frame

1шт.

Draper Option

1шт.

Includes: Harnesses 87039576, 87041305, 87054010, 87054011, 87041193, & 87054857

1шт.

Prior To 12/06

1шт.

17

87571609

WIRE HARNESS

Harness, Main Frame

1шт.

Draper Option

1шт.

Includes: Harnesses 87039576, 87041305, 87054010, 87054011, 87041193, & 87054857

1шт.

From 12/06

1шт.

774735

DIODE,6A

1шт.

18

87030412

SUPPORT

1шт.

19

86705728

LAMP

Flood, 50w. 12v

2шт.

19

87026085

BULB

2шт.

20

86705726

LAMP

Flood, 35w, 12v

2шт.

20

86533429

BULB,Halogen, 12V, 35W

2шт.

21

86631651

TAIL LAMP

2шт.

22

86562581

SWITCH

Rocker, Fuel Service Light

1шт.

23

87541053

WIPER MOTOR

Chaff Wiper

1шт.

23

87488680

ELECTRIC MOTOR

Chaff Wiper, Also See Fig. 08.06(1), Start Year: 01-JUN-09

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Reman Chaff Wiper, Also See Fig. 08.06(1)

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

24

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4" x 5/8"

2шт.

25

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

5шт.

26

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

27

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

28

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

29

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP Not Shown

6шт.

31

85999229

FLOAT

1шт.

32

87035168

POTENTIOMETER,4.5 VDC-5.5 VDC

Dual Hall Effect

1шт.

33

NS

NOT SERVICED

Propulsion Reverse Solenoid, See Fig. 07.05 [04.1]

1шт.

34

NS

NOT SERVICED

Propulsion Forward Solenoid, See Fig. 07.05 [04.1]

1шт.

35

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Windrow Shield

1шт.

36

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Pintle Arm Sensor

1шт.

37

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

38

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

Vinyl Coated

2шт.
