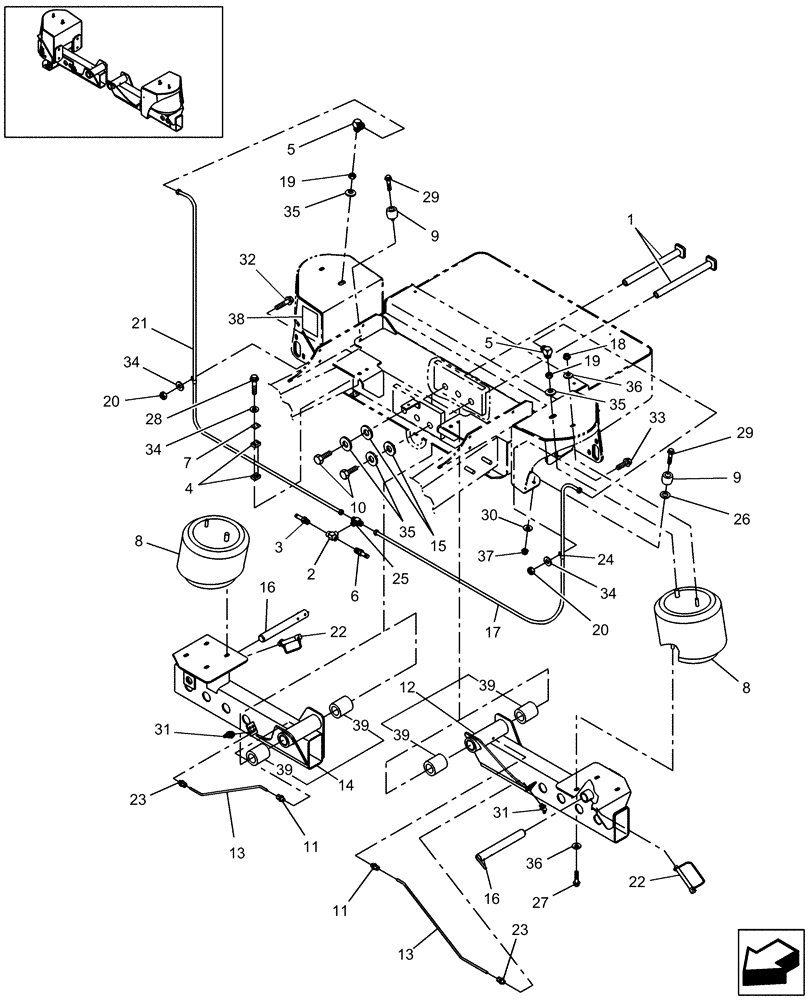

Запчасти Case IH WDX1902 (05.03) - REAR AXLE SUSPENSION (05) - REAR AXLE

1

87031554

SHAFT ASSY.

2шт.

2

86627339

HYD CONNECTOR

Tee, -04, Female, NPTF

1шт.

3

86633453

PIPE FITTING

1шт.

4

87022324

CLAMP

2шт.

5

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

6

86643536

VALVE PRESSURE RELIE

1шт.

7

87022336

PLATE

2шт.

8

86633242

SPRING

Gland

2шт.

9

510353

BUMPER

2шт.

10

84172532

LOCK BOLT

2шт.

11

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

12

87023028

AXLE

LH

1шт.

13

86596659

TUBE,4.76 mm OD x 335, 163.2 mm L

2шт.

14

87023026

AXLE

RH

1шт.

15

86502976

WASHER

2шт.

16

87011022

PIN

2шт.

17

87031110

TUBE,6.35 mm OD

1шт.

18

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

19

425-1112

NUT,3/4"-16, G5

2шт.

20

425-104

NUT,1/4"-20, Cl 5

2шт.

21

87031111

TUBE,6.35 mm OD

1шт.

22

647695

PIN,7.94mm OD

2шт.

23

646429

HYD CONNECTOR

2шт.

24

272535

CLAMP,1/8", Insul, 1/4" Bolt

2шт.

25

87031109

TEE

Connector, Male Tee

1шт.

26

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

Special, 3/8"

4шт.

27

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

29

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

31

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

32

458-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

33

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

35

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

6шт.

36

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

10шт.

37

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

38

87052834

DECAL

ATTENTION, Multi Language

2шт.

39

86631543

BUSHING

4шт.
