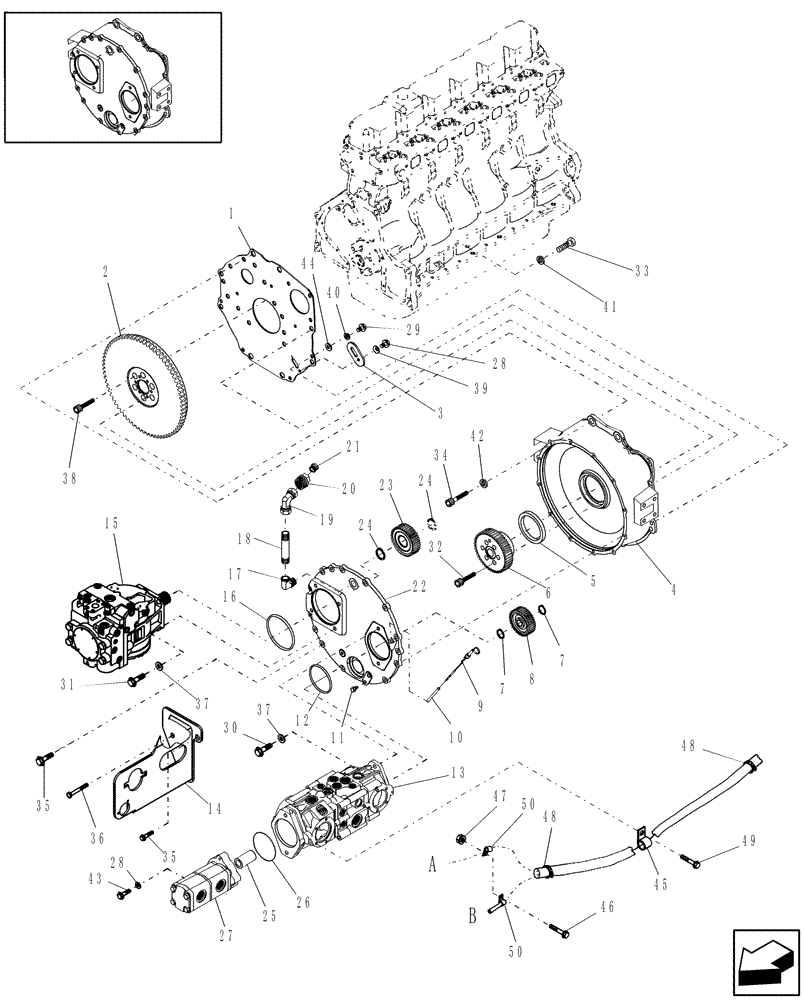

Запчасти Case IH WDX1902 (03.10[1]) - FLYWHEEL AND GEARBOX (03) - TRANSMISSION

1

83998895

PLATE

1шт.

2

86638910

FLYWHEEL

1шт.

3

1804217

COVER

1шт.

4

86543187

HOUSING

1шт.

5

9790499

OIL SEAL,95.25mm ID x 117.65mm OD x 12.7mm Thk

1шт.

6

86638919

GEAR

47T

1шт.

6

87600185

GEAR

47T, Start Year: 01-JUN-07

1шт.

7

100-1198

SNAP RING,#98, Ext

1шт.

8

9701486

GEAR

29T

1шт.

8

87600186

GEAR

29T, Start Year: 01-JUN-07

1шт.

9

87801533

DIPSTICK

1шт.

10

86522662

TUBE,9.52 mm OD x 68.00 mm L

1шт.

11

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

12

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

13

87038912

HYDRAULIC PUMP

Tandem, 44 cc; Refer To Component Breakdown, Fig. 03.05, Sauer Danfoss MPT044D

1шт.

13

84257942R

REMAN-HYD PUMP

WDX1902, WDX2302, Does Not Include Gear Pump

1шт.

13

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

86974149

SUPPORT ASSY.

1шт.

Prior To 12/06

1шт.

14

87383130

SUPPORT

Support

1шт.

From 12/06

1шт.

15

87013797

HYDRAULIC PUMP,100 CC

Piston; Refer To Component Breakdown, Fig. 03.14

1шт.

15

87013797R

REMAN-HYD PUMP

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

15

87013797C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

17

248994

ELBOW

Street, 3/4"

1шт.

18

509987

PIPE

3/4" x 6"

1шт.

19

88765

ELBOW

3/4" - 45°

1шт.

20

88979

REDUCER

Bushing, Hex, 3/4" To 3/8"

1шт.

21

9636958

BREATHER

1шт.

22

86974827

COVER

1шт.

23

86521846

GEAR

32T

1шт.

24

100-11175

SNAP RING,#175, Ext

2шт.

25

86502304

COUPLING

1шт.

26

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

27

86617706

HYDRAULIC PUMP,6 CC

1шт.

27

86617706R

REMAN-HYD PUMP

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

27

86617706C

CORE-HYDRAULIC PUMP

Return Number

1шт.

28

58102

WASHER

2шт.

29

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

2шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

31

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

32

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

8шт.

33

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

34

86529420

HEX SOC SCREW,3/4" - 16 x 2 1/4"

2шт.

35

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

12шт.

36

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

37

58102

WASHER

6шт.

38

9700357

HEX SOC SCREW,9/16" - 18 x 2", Gr 8

Cap, HS, G8, 9/16"-18 x 2"

8шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

40

492-11044

LOCK WASHER,7/16"

2шт.

41

492-11062

BEARING WASHER,5/8"

4шт.

42

492-11075

LOCK WASHER,3/4"

2шт.

43

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

44

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

45

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

46

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

48

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

49

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

50

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.
