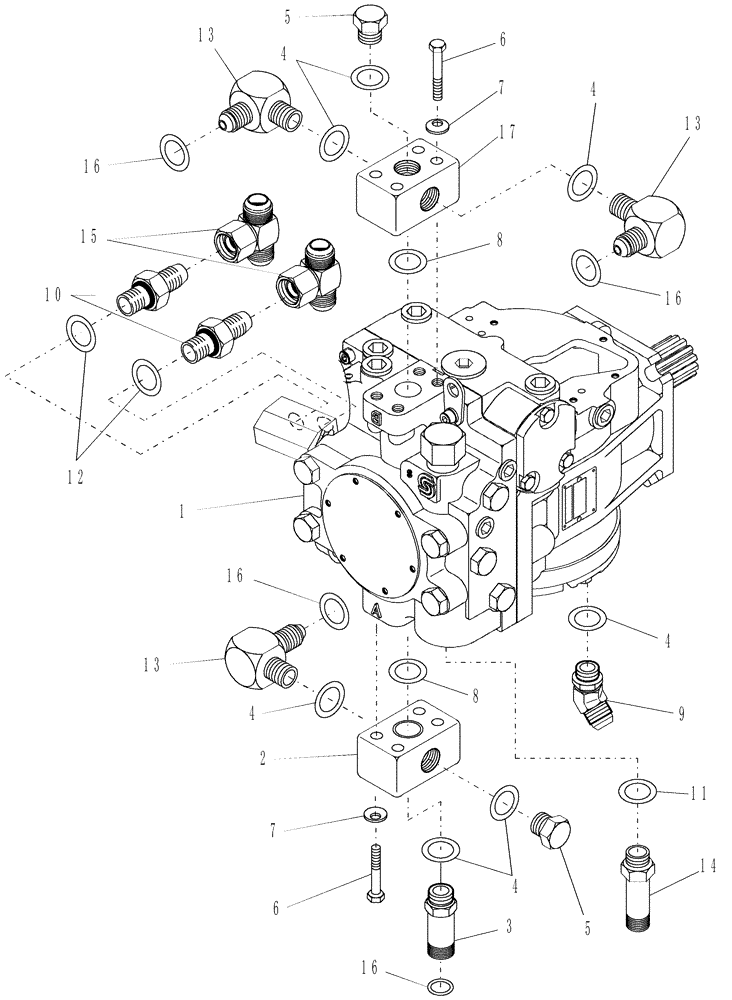

Запчасти Case IH WDX1902 (03.07[01.1]) - PISTON PUMP FITTINGS (03) - TRANSMISSION

1

87013797

HYDRAULIC PUMP,100 CC

Piston, Components NSS

1шт.

87013797R

REMAN-HYD PUMP

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

87013797C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87031175

PORT

Manifold, Bottom

1шт.

3

86978169

HYD CONNECTOR

.75" x 3.76"

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 4, 237-6012 (1)

1шт.

6

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

8

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

9

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 4, 237-6012 (1)

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 12, 237-6010 (1)

2шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

3/4" x 3/4" Tubes, Includes: Ref. 4, 237-6012 (1) & Ref. 16, 238-6018 (1)

3шт.

14

86900182

HYD CONNECTOR

20-20, Includes: Ref. 11, 237-6020 (1)

1шт.

15

87025396

FITTING

Tee Connector

2шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

17

87602000

MANIFOLD

Port, Manifold, Top

1шт.
