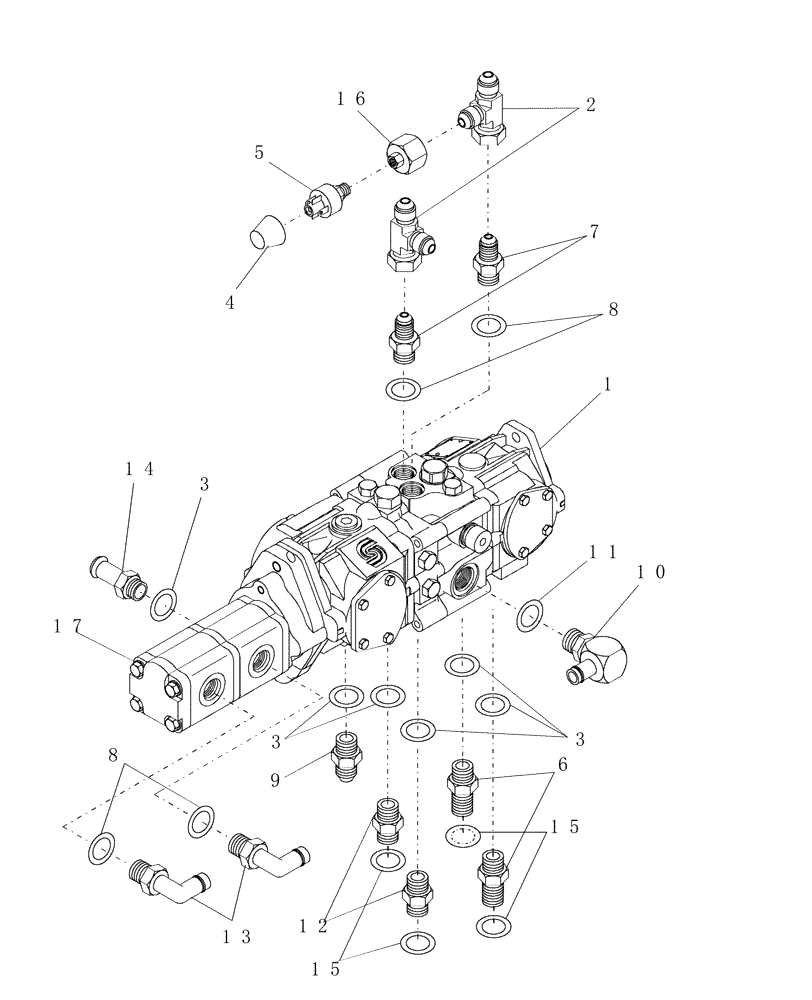

Запчасти Case IH WDX1902 (03.05[01.1]) - TANDEM PUMP FITTINGS (03) - TRANSMISSION

1

87038912

HYDRAULIC PUMP

Tandem, 44cc; Includes: Ref. 17, Sauer Danfoss MPT044D

1шт.

See also: Fig.s 03.05[01.2] & 03.05[01.3]

1шт.

1

84257942R

REMAN-HYD PUMP

WDX1902, WDX2302, Does Not Include Gear Pump

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

4

86503171

COVER

1шт.

5

86534287

PRESSURE SWITCH

1шт.

6

86978169

HYD CONNECTOR

.75" x 3.76"; Includes: 237-6012 (1) & 238-6018 (1)

2шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: 237-6010 (1)

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

3/4"

1шт.

10

86979787

ELBOW-CONNECTION

ELBOW-CONECTION Hose; Includes: 237-6016 (1)

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube; Includes: 237-5220 (1) & 238-6018 (1)

2шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 237-6010 (1)

2шт.

Prior To PIN Y8G661201

1шт.

13

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Straight, Includes: 237-6010 (1)

2шт.

From PIN Y8G661201

1шт.

Not Shown

1шт.

14

87027931

NIPPLE

Nipple, Hose; Includes: 237-6012 (1)

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

16

87012188

ELEC CONNECTOR

1шт.

17

86617706

HYDRAULIC PUMP,6 CC

1шт.

17

86617706R

REMAN-HYD PUMP

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

17

86617706C

CORE-HYDRAULIC PUMP

Return Number

1шт.
