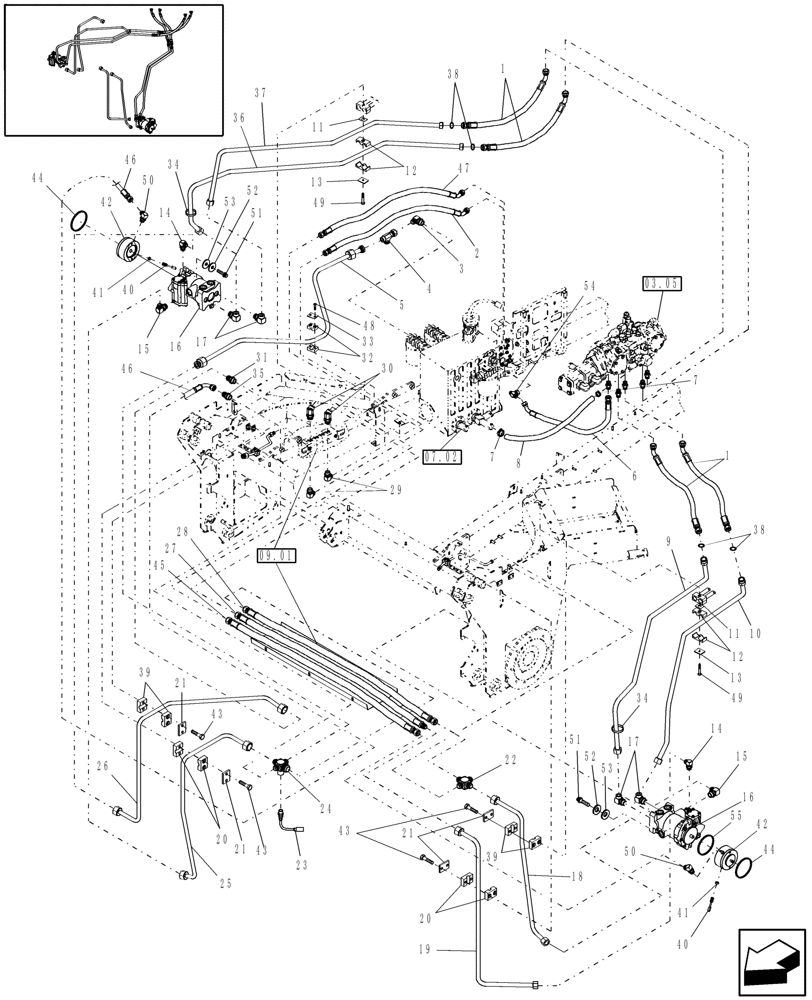

Запчасти Case IH WDX1902 (03.04[01.1]) - HYDRAULIC GROUND DRIVE (03) - TRANSMISSION

1

86705061

HOSE ASSY.,19.05mm ID x 533.4mm L, SAE 100R13

4шт.

2

87017544

HOSE ASSY.

1шт.

3

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

4

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

5

87011227

HYD TUBE

1шт.

6

87027890

HOSE,19.05 mm ID x 762.00 mm, SAE 100R4

1шт.

7

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

Hose

2шт.

8

87027895

HOSE,1.25" ID x 32.00", SAE 100R4

1шт.

9

86638705

TUBE,25.40 mm OD

1шт.

10

86638706

TUBE,25.40 mm OD

1шт.

11

86564909

WASHER

2шт.

12

86900725

CLAMP

Twin, 1"

2шт.

One piece consists of two clamp halves

1шт.

13

87053042

PLATE

Twin Cover

2шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

15

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Includes: O-Ring 237-6012

2шт.

16

87349714

HYDRAULIC MOTOR

Refer To Component Breakdown, Fig. 03.04(01.2)

2шт.

17

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes: O-Ring 237-6012 & O-Ring 238-6021

4шт.

18

86974211

HYD TUBE

1шт.

19

87011231

HYD TUBE,0.625" OD

1шт.

20

86900724

CLAMP

Plastic, 1/2"

4шт.

One piece consists of two clamp halves

1шт.

21

86900726

COVER

Plate

4шт.

22

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

23

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

24

86978785

CROSS

1шт.

25

86974206

TUBE,15.90 mm OD

1шт.

26

87011232

HYD TUBE

1шт.

27

86979918

HOSE,9.52 mm ID x 2413.00 mm, SAE 100R6

1шт.

28

86979928

HOSE,12.70 mm ID x 2387.60 mm, SAE 100R1 Type AT, SAE 100R3

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: O-Ring 237-6008

1шт.

30

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: O-Ring 237-6008

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring 237-6008

1шт.

32

86900723

CLAMP

Plastic, 3/4"

1шт.

One piece consists of two clamp halves

1шт.

Used Only On Early Units

1шт.

33

86900727

COVER

1шт.

Used Only On Early Units

1шт.

34

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

35

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes: O-Ring

1шт.

36

86638704

TUBE,25.40 mm OD

1шт.

37

86638703

TUBE,25.40 mm OD

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

39

87040663

CLAMP

5/8"

2шт.

One piece consists of two clamp halves

1шт.

40

9825943

SENSOR

2шт.

41

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

42

87038584

BRAKE ASSY.

Modular

2шт.

42

87055273

SCREW,5/16" x 1 17/64"

Bleeder

1шт.

42

87055272

KIT

O-Ring

1шт.

43

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

44

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

45

86900548

HOSE,9.52 mm ID x 3048.00 mm, SAE 100R6

1шт.

46

87017787

HOSE ASSY.

1шт.

47

86900546

HOSE ASSY.

1шт.

48

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

Used Only On Early Units

1шт.

49

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

50

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. O-Ring

2шт.

50

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

51

87041225

BOLT

12 Pt. Hd, 1/2-13 x 5"

4шт.

52

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

53

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

4шт.

54

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

55

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.
