Запчасти Case IH WDX1902 (10.19[1]) - DELUXE MIRRORS (10) - OPERATORS PLATFORM/CAB

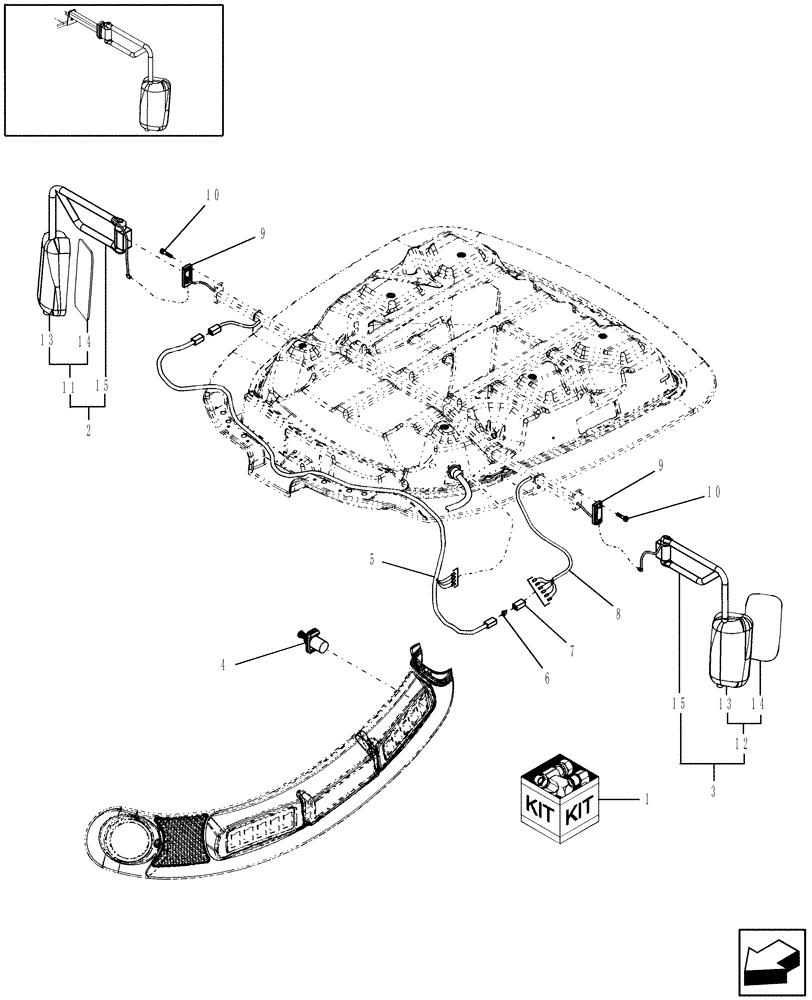

Схема запчастей Case IH WDX1902 - (10.19[1]) - DELUXE MIRRORS (10) - OPERATORS PLATFORM/CAB
2
13
1
6
15
15
13
9
8
12
5
10
7
14
4
10
9
14
3
11

Артикул

Название

Примечание

Количество

1

717212006

DIA KIT, HARVESTER

Deluxe Mirrors; Includes: Ref.s 2 Thru 10 As Indicated

1шт.

2

86837198

MIRROR ASSY.

Electrically Adjustable, RH; Includes: Ref. 11 & 15

1шт.

3

86837199

MIRROR ASSY.

Electrically Adjustable, LH; Includes: Ref. 12 & 15

1шт.

4

86565146

SWITCH, MIRROR ADJUS

1шт.

5

87041199

HARNESS

Wire, MA D

1шт.

6

84074642

WIRE CONNECTOR,Male

2шт.

7

9861378

CONTACT HOUSING

6-Pin Wedge

2шт.

8

NSS

NOT SOLD SEPARAT

Tube, Convoluted

2шт.

9

84059856

WIRE CONNECTOR

Mounting Wedge

2шт.

10

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

8шт.

11

84059852

RH MIRROR

Includes: Ref. 13 & 14

1шт.

12

84059851

LH MIRROR,205mm x 383.5mm

Includes: Ref. 13 & 14

1шт.

13

84434473

COVER

2шт.

Part is inverted to make symetrical assemblies

1шт.

14

84434478

REPLACEMENT MIRROR

2шт.

15

NSS

NOT SOLD SEPARAT

2шт.

Выбрано товаров: 16
