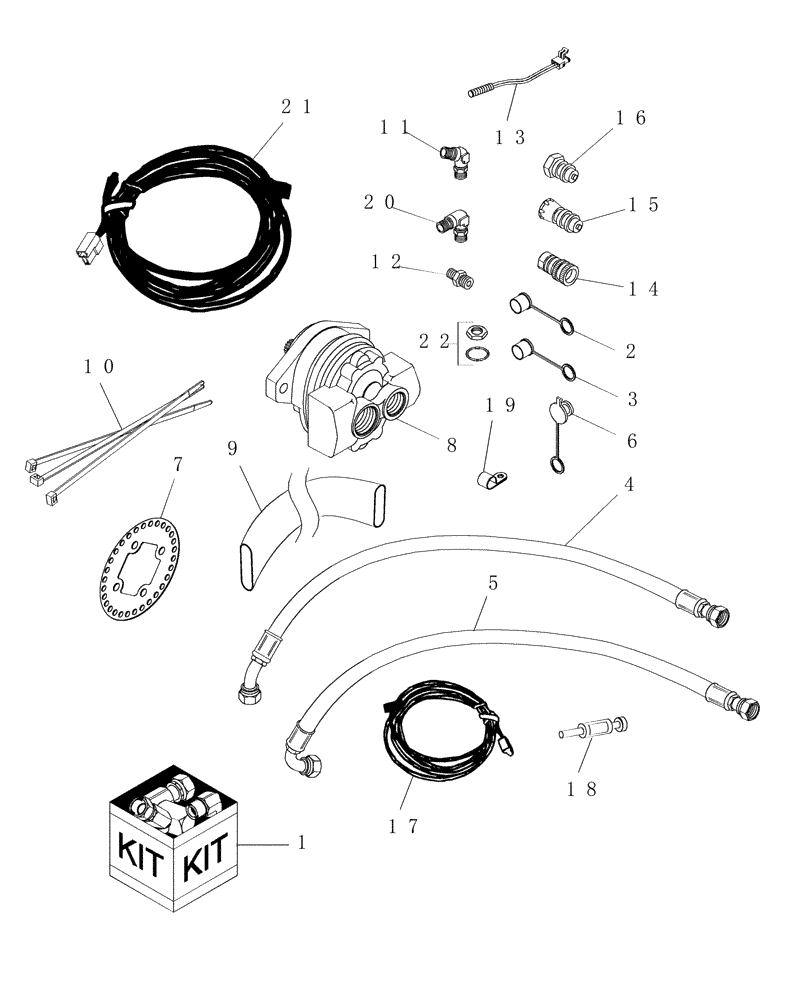

Запчасти Case IH WDX1902 (18.04[1]) - SICKLE HEADER ADAPTER KIT Attachments

1

716965036

DIA KIT, HARVESTER

Sickle Header Adapter For HDX Series 2 Headers

1шт.

1

716528026

DIA KIT, HARVESTER

Sickle Header Adapter For HDX121, 141, 161, 181 Headers

1шт.

2

9618037

DUST CAP

3/4" Coupler

1шт.

3

86621124

DUST CAP

1шт.

4

87032252

HOSE ASSY.

3/8" ID

1шт.

5

87032249

HOSE ASSY.,19.05mm ID x 1447.8mm L, SAE 100R12

3/4" ID

2шт.

6

9618038

DUST CAP

Plug, 3/4" Coupler

1шт.

7

86640841

DISC

1шт.

8

86837566

HYDRAULIC MOTOR

For Component Breakdown, Refer To Fig. 07.09[02]

1шт.

Included With Kit 716965036

1шт.

8

86837566R

REMAN-HYD MOTOR

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

8

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

87298004

REMAN-HYD MOTOR

WDX1902, WDX2302, SP Windrowers

1шт.

8

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

86516482

HYDRAULIC MOTOR

For Component Breakdown, Refer To Fig. 07.09[01]

1шт.

Included With Kit 716528036

1шт.

8

86643697

REMAN-HYD MOTOR

Remanufactured HYDRAULIC MOTOR (Ports Exit Rear Of Pump)

1шт.

8

86643698

CORE-MOTOR HYDRAULIC

Return No, HYDRAULIC MOTOR

1шт.

9

86520217

SLEEVE

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

11

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

45°; Includes: O-Rings

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal

4шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Straight, 3/4" Tube ORFS - 3/4" Tube ORB; Includes: O-Rings, Ref. 11

4шт.

13

9825943

SENSOR

Magnetic

1шт.

14

86564734

COUPLING

1шт.

15

87037008

QUICK MALE COUPLING

-8STOR

1шт.

16

9820148

COUPLING,1-1/16" - 12

1шт.

17

86531286

WIRE HARNESS

Header Speed

1шт.

18

900373

SPECIAL TOOL

1шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

5шт.

20

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

1шт.

Included With Kit 716965036

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

Included With Kit 716528036

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

87030622

HARNESS

Wire, AD

1шт.

22

NS

NOT SERVICED

Hardware Bag (Contents Listed Below)

1шт.

22

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

22

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

22

492-11100

LOCK WASHER,1"

2шт.

22

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

22

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

2шт.

22

9801108

SPACER

2шт.

22

9849633

NUT,1"-8, G5

2шт.
