Запчасти Case IH WDX1902 (10.12[1]) - AIR CONDITIONER/HEATER & PLUMBING (10) - OPERATORS PLATFORM/CAB

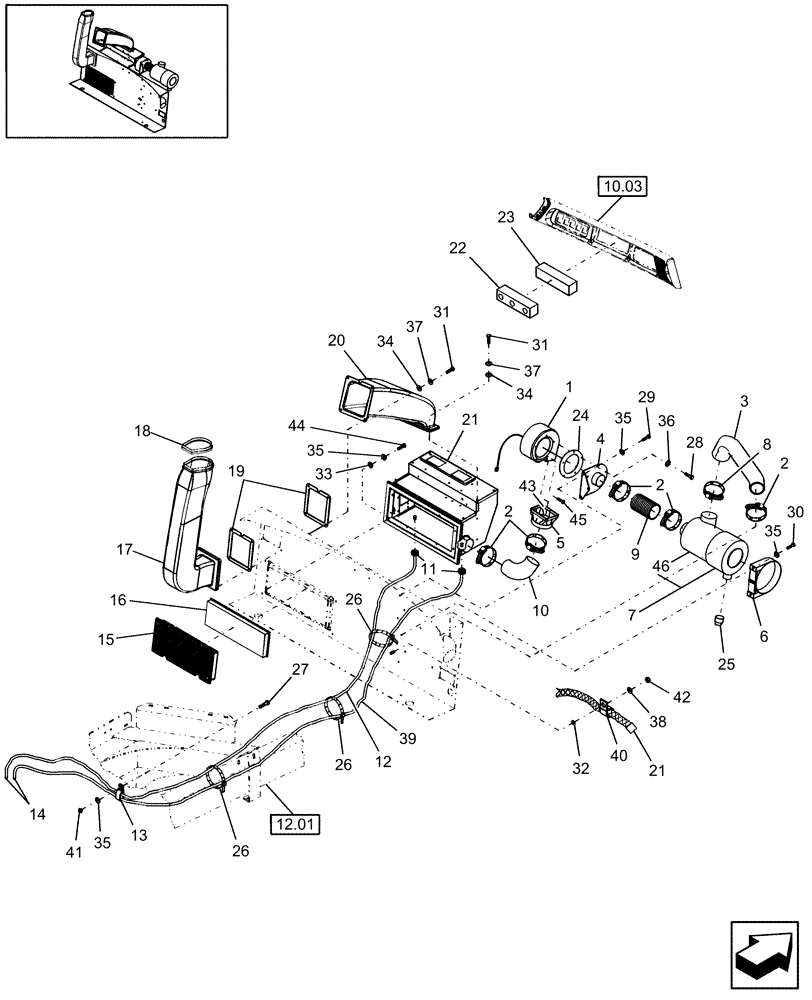

Схема запчастей Case IH WDX1902 - (10.12[1]) - AIR CONDITIONER/HEATER & PLUMBING (10) - OPERATORS PLATFORM/CAB
33
12.01
35
1
22
16
31
35
7
43
34
46
2
6
36
35
39
21
9
10
41
5
26
27
13
23
8
24
14
26
32
37
35
10.03
21
17
2
29
15
45
28
31
40
18
38
19
34
25
20
44
30
12
2
4
11
42
26
3
37

Артикул

Название

Примечание

Количество

1

87107380

BLOWER

1шт.

2

82012731

HOSE CLAMP,77mm - 95mm, Worm Gear

2-13/16"

3шт.

3

87050745

HOSE,76.20 mm ID, 95.0 mm ID x 426.50 mm, SAE J20R4 CLASS D1

1шт.

4

87050744

SUPPORT ASSY.

Blower

1шт.

5

87107256

ADAPTER

1шт.

6

84057675

CLAMP BRACKET

1шт.

7

84334657

AIR CLEANER

Includes: Element; Incl 84217229

1шт.

7

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

1шт.

8

82012732

COLLAR

3шт.

9

87050747

HOSE,89.00 mm ID x 70 mm, SAE J20R1 CLASS D2/SAE J20R4 CLASS D1

1шт.

10

87050748

HOSE,89.00 mm ID x 300 mm

1шт.

11

82012722

HOSE CLAMP,19mm - 28mm, Worm Gear

M19-28

2шт.

12

198091C1

HOSE,12.95mm ID x 15240mm L

Roll, L = 15.24M; 1.6M Needed

1шт.

Cut to fit

1шт.

13

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Hose, 5/16" Bolt

1шт.

14

87000222

VALVE

Check

2шт.

15

84061669

GRILLE

1шт.

16

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

Cab, Air Recirculation

1шт.

17

86626166

AIR DUCT

1шт.

18

84059894

SEAL

1шт.

19

87028579

GASKET

2шт.

20

86626167

AIR DUCT

1шт.

21

87042410

AIR CONDITIONER

For Component Breakdown, Refer To Fig. 10.12[02]

1шт.

Manual

1шт.

21

87042411

AIR CONDITIONER

For Component Breakdown, Refer To Fig. 10.12[02]

1шт.

ATC

1шт.

22

87042412

CONTROL PANEL

Control; For Component Breakdown, Refer To Fig. 10.12[03]

1шт.

Manual

1шт.

22

87042413

CONTROL PANEL

Control; For Component Breakdown, Refer To Fig. 10.12[04]

1шт.

ATC

1шт.

23

87281122

SLEEVE

1шт.

24

87107381

GASKET

1шт.

25

9809800

DUST VALVE,1.93" ID x 2.24" OD

1шт.

26

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

28

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

5шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

30

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

31

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

1шт.

33

412328

WASHER

Hardened, M8

4шт.

34

495-11028

WASHER,1/4", SAE

6шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

36

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

5шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

39

198091C1

HOSE,12.95mm ID x 15240mm L

Roll, L = 15.24M; 1.8M Needed

1шт.

Cut to fit

1шт.

40

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

42

9628503

NUT,3/8"-16, G5

1шт.

43

ZPX81158

ADHESIVE

3 OZ. Tube

1шт.

Apply adhesive to adapter in order to bond to blower. Allow thirty minutes to cure before attaching hose.

1шт.

44

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

Manual

1шт.

44

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

ATC

1шт.

45

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

1шт.

46

47132327

COVER

1шт.
