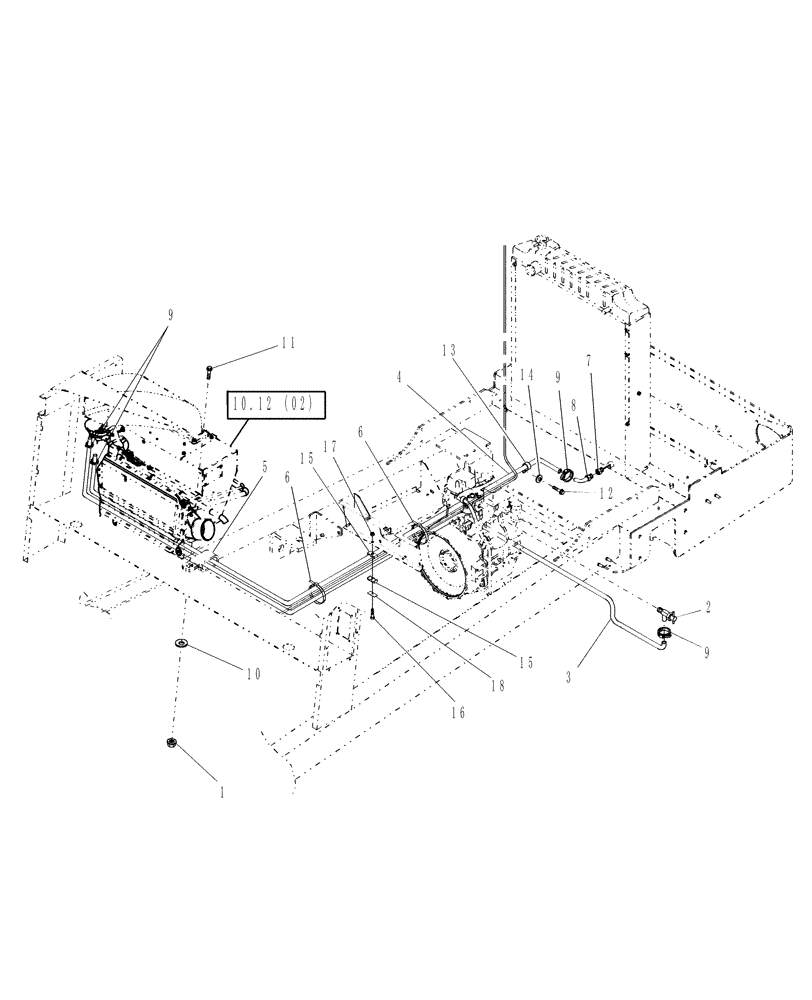

Запчасти Case IH WDX1902 (10.11[2]) - HEATER LINES (10) - OPERATORS PLATFORM/CAB

1

87012296

HYD CONNECTOR

Flg, G5, 5/16"-18

1шт.

2

83961305

VALVE

1шт.

3

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply; 15.24 M Roll, 3.4 M Required.

1шт.

Cut to fit

1шт.

4

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Return: 15.24 M Roll, 3.2 M Required.

1шт.

Cut to fit

1шт.

5

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Hose

2шт.

6

249730

SECURING STRAP,8" L

3/32" x 11-1/2" L

6шт.

7

247636

ADAPTER

1шт.

8

134311

HYD CONNECTOR

1шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

13

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

86900725

CLAMP

1шт.

16

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

1шт.

17

280736

NUT,5/16"-18, GC

1шт.

18

87053042

PLATE

1шт.
