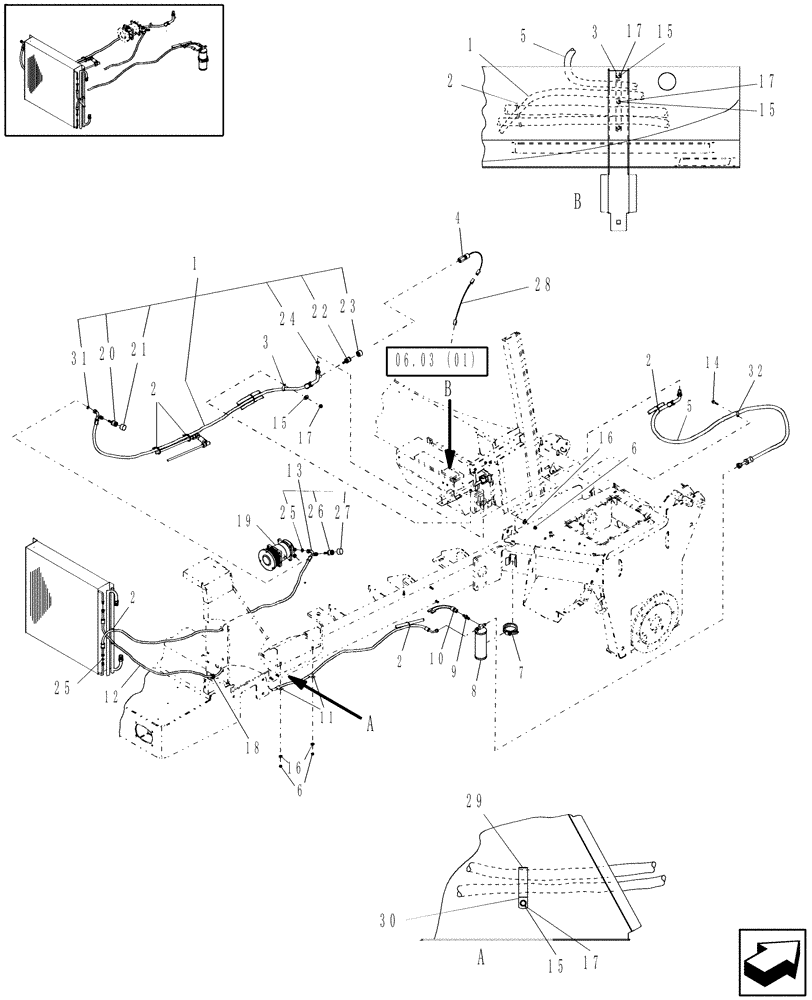

Запчасти Case IH WDX1902 (10.10[1]) - AIR CONDITIONING LINE (10) - OPERATORS PLATFORM/CAB

1

86900551

HOSE ASSY.

Includes: Ref.s 20 Thru 23 & 31

1шт.

Prior To 11/06

1шт.

1

87356418

HOSE

Includes: Ref.s 20 Thru 23 & 31

1шт.

From 11/06

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

3

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1-1/16" x 1/2" Bolt

1шт.

Used W/8690051

1шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Used W/87356418

1шт.

4

284272A3

SWITCH, A/C LOW PRES

1шт.

5

86900550

HOSE ASSY.

1шт.

6

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

7

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

Hose

1шт.

8

9827053

RECEIVER-DRYER

1шт.

9

9827057

HYD CONNECTOR

1шт.

10

9849562

PRESSURE SWITCH

High

1шт.

11

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

3/4"

2шт.

12

86604134

HOSE ASSY.

1шт.

13

86604133

HOSE ASSY.,10.2mm ID x 2025mm L

1шт.

14

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

17

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

18

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

1шт.

19

87037134

COMPRESSOR

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1202 (3/05-8/07), WDX1902 (1/05-8/07), WDX2302 (1/05-), Reman for New PN 87037134

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

20

86511146

VALVE,Shrader

Valve

1шт.

21

86511149

CAP

1шт.

22

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

23

1250594C2

CORE

1шт.

24

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

25

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

2шт.

26

86511147

CONTROL VALVE

VALVE, CHARGE HIGH SIDE

1шт.

27

86511148

CAP

1шт.

28

87345701

WIRE HARNESS

Extension; Low Pressure Switch To Main Frame Harness

1шт.

29

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

Used W/8690051

1шт.

31

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

1шт.

Used W/87356418

1шт.

32

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.
