Запчасти Case IH WDX1902 (10.07[01.2]) - SEAT (10) - OPERATORS PLATFORM/CAB

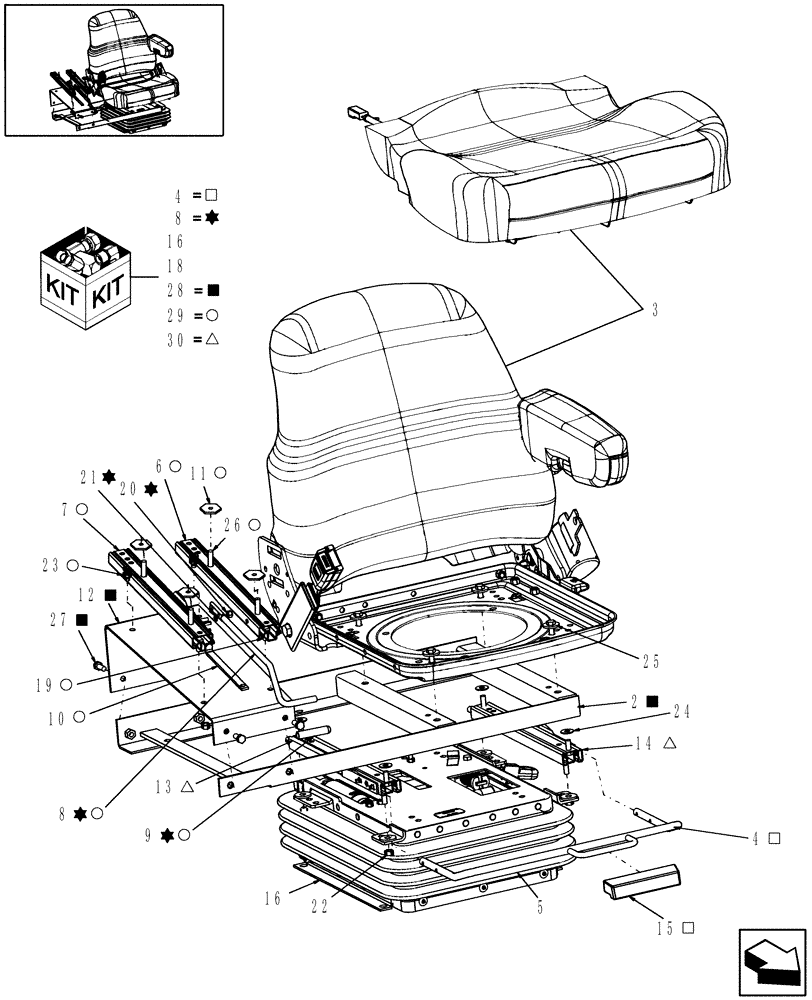

Схема запчастей Case IH WDX1902 - (10.07[01.2]) - SEAT (10) - OPERATORS PLATFORM/CAB
14
13
18
24
6
25
20
8
9
22
19
12
4
11
28
16
26
15
7
5
4
10
27
23
3
2
30
16
8
29
21

Артикул

Название

Примечание

Количество

1

87042689

SEAT ASSY.

Includes: Ref. 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

87386703

SEAT

Seat Cushions & Shell ; For Component Breakdown, Refer To Fig 10.07[01.3]

1шт.

4

86994163

SERVICE KIT

Slide Control; Includes: Ref. 15

1шт.

5

87347962

SERVICE KIT

Boot, Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slide, Slave

1шт.

7

NSS

NOT SOLD SEPARAT

Slide, Master

1шт.

8

87361118

REPAIR KIT

Lever

1шт.

9

NSS

NOT SOLD SEPARAT

Handle, Lever

1шт.

10

NSS

NOT SOLD SEPARAT

Stop, Slide

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Slide Stop

4шт.

12

NSS

NOT SOLD SEPARAT

Plate, Slide Mount

1шт.

13

NSS

NOT SOLD SEPARAT

Rail, Slide, RH

1шт.

14

NSS

NOT SOLD SEPARAT

Rail, Slide, LH

1шт.

15

180587A1

HANDLE

1шт.

16

87390388

KIT

Kit, Suspension; For Component Breakdown See Fig. 10.07[01.4]

1шт.

17

Reference Not Used

1шт.

18

87352578

SERVICE KIT

Air line, From Armrest Switch To Compressor

1шт.

Not Shown

1шт.

19

84792

PIN,Square, 5/16" x 3/4"

4шт.

20

412152

NUT,M6 x 1, Cl 8.8

1шт.

21

NSS

NOT SOLD SEPARAT

Washer, Lock, M6

1шт.

22

NSS

NOT SOLD SEPARAT

Nut, Lock, M8x1.25

4шт.

23

86629544

NUT,5/16” – 18, GR B

4шт.

24

NSS

NOT SOLD SEPARAT

Washer, .344" ID x .875" OD

4шт.

25

NSS

NOT SOLD SEPARAT

Washer, .390" ID x 1.12" OD

8шт.

26

86014506

SCREW,Hex, M8 x 30mm, Cl 8.8

4шт.

27

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Bolt, M8 - 1.25 x 20, HH, 8.8

16шт.

28

87390391

KIT

Kit, Frame

1шт.

29

87390392

REPAIR KIT

Slide

1шт.

30

87410077

SERVICE KIT

Rail, Slide

1шт.

Выбрано товаров: 31
