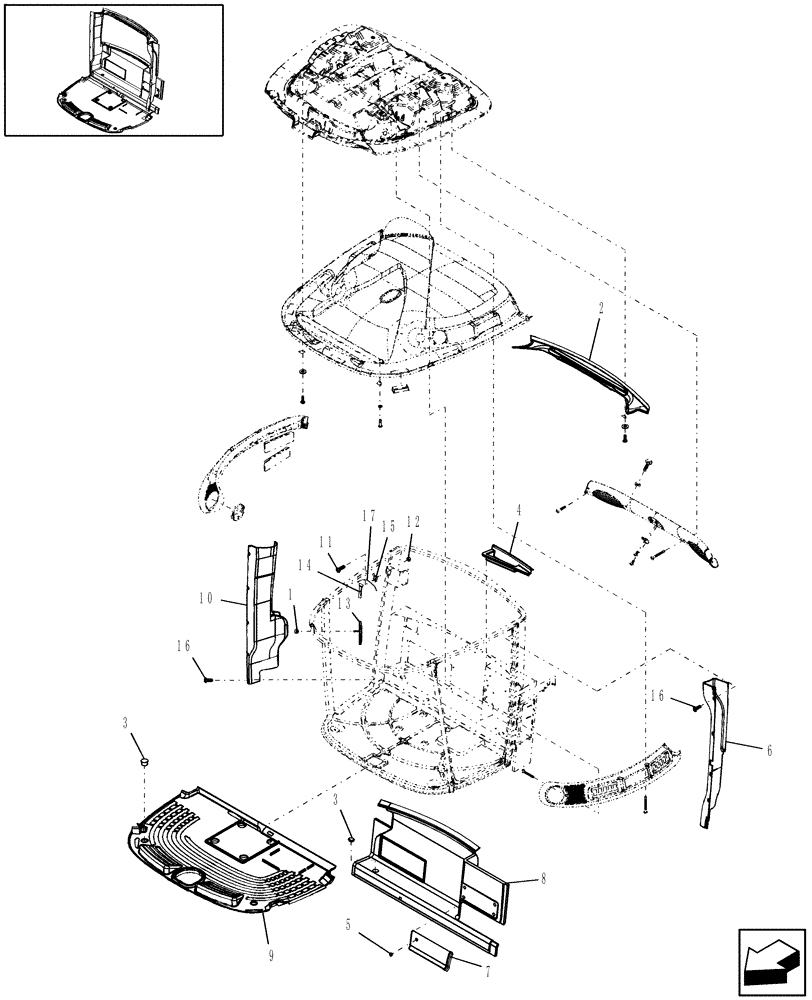

Запчасти Case IH WDX1902 (10.03[02.1]) - CAB INTERIOR TRIM (10) - OPERATORS PLATFORM/CAB

1

825-1408

NUT,M8, Cl 8

1шт.

2

86977360

LINER

1шт.

3

84067943

PLUG,M52

3шт.

4

87029703

TRAY ASSY.

1шт.

5

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

6

87043706

COVER

1шт.

7

87719918

COVER

1шт.

8

87719903

COVER

Wall Cover, Right Rear, Wheat, Includes: Ref. 7

1шт.

9

87043710

MAT

1шт.

10

87043704

LINER

1шт.

11

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

12

825-1403

NUT,M3, Cl 8

2шт.

13

86011713

REAR VIEW MIRROR

Includes: Ref. 18

1шт.

14

9507312

HAMMER

1шт.

15

9507313

HOLDER

1шт.

16

84320280

PLUG

10шт.

17

NS

NOT SERVICED

Wire, Copper, 28 or 30 AWG

1шт.
