(10.01[1]) - CAB FRAME

Запчасти Case IH WDX1902 (10.01[1]) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

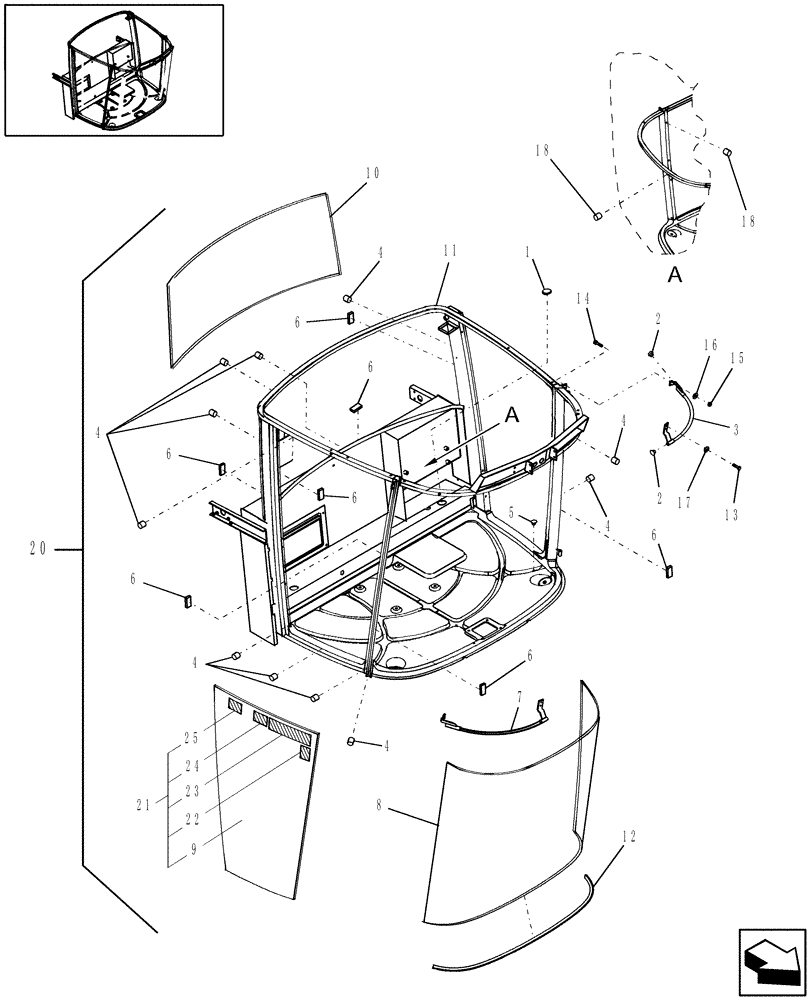

Схема запчастей Case IH WDX1902 - (10.01[1]) - CAB FRAME (10) - OPERATORS PLATFORM/CAB
11
9
10
22
15
23
8
2
4
4
21
4
18
2
16
6
3
20
4
4
1
6
18
6
5
24
14
13
6
6
25
12
17
6
4
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

199676

BUTTON PLUG

2шт.

2

87280507

PLUG,M21

4шт.

3

86636000

HANDRAIL

LH

1шт.

4

86001112

SPACER

Glass Mounting

50шт.

5

NS

NOT SERVICED

Plug, Rubber

8шт.

6

87353028

INSULATOR BLOCK

Glass Setting

23шт.

7

86635999

HANDRAIL

RH

1шт.

8

84059822

WINDSHIELD

1шт.

9

87651812

GLASS

1шт.

10

86629031

GLASS

1шт.

11

87024916

FRAME ASSY

1шт.

12

87012018

RUBBER WEATHERSTRIP

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

14

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

15

825-1406

NUT,M6, Cl 8

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

87106208

THREADED INSERT,M6

5шт.

19

87037134

COMPRESSOR

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1202 (3/05-8/07), WDX1902 (1/05-8/07), WDX2302 (1/05-), Reman for New PN 87037134

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

20

87570644

CAB

Cab, Complete

1шт.

WDX1902 & WDX2302

1шт.

Includes: Ref.s 1 Thru 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

20

87570645

CAB

Cab, Complete

1шт.

WDX1202

1шт.

Includes: Ref.s 1 Thru 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

21

87651812

GLASS

1шт.

22

87052289

DECAL

Exit

1шт.

23

87033679

WARNING DECAL

1шт.

24

86640432

WARNING DECAL

1шт.

25

86640447

WARNING DECAL

1шт.
