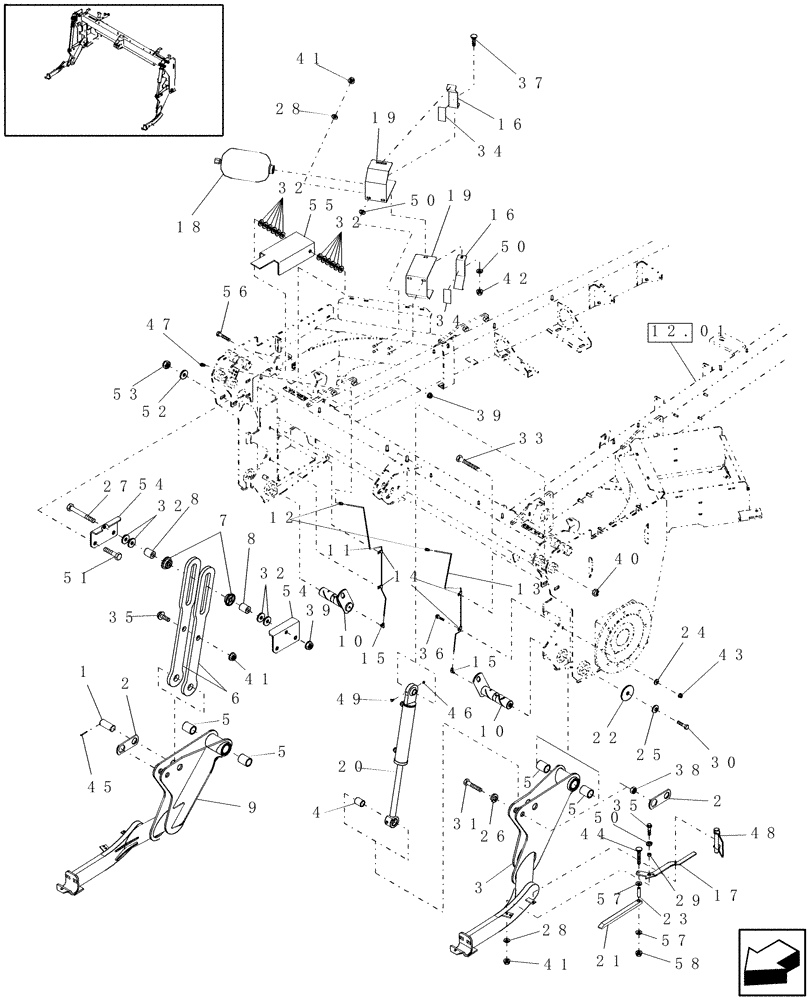

Запчасти Case IH WDX1902 (09.01[01]) - HEADER LIFT (09) - IMPLEMENT LIFT

1

86637228

PIN,38.1mm OD x 91.5mm L

2шт.

2

86974231

PLATE

4шт.

3

87022730

LIFT ARM

1шт.

4

86974227

SPACER

2шт.

5

87016441

GROOVED BUSHING

4шт.

6

87039603

LINK

2шт.

7

86623463

SPACER

4шт.

Non-Draper Option

1шт.

8

213436

SPACER

4шт.

Non-Draper Option

1шт.

9

87022728

LIFT ARM

1шт.

10

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

11

86596672

TUBE,4.76 mm DIA

1шт.

12

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

13

86596671

TUBE,4.76 mm DIA

1шт.

14

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

15

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: 13362 Sleeve & 13367 Nut

2шт.

16

87031729

CLAMP

2шт.

17

87560861

KIT

Handle

2шт.

18

86620728

ACCUMULATOR

2шт.

18

84221534

ACCUMULATOR

2шт.

19

87031728

CLAMP

2шт.

20

87547914

HYDRAULIC CYLINDER

Refer To Component Breakdown, Fig. 09.01[03.1]

2шт.

Non-Draper Option

1шт.

20

87547927

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 266.7mm Stroke

2.75" x 10.50", Refer To Component Breakdown, Fig. 09.01[03.2]

2шт.

Draper Option

1шт.

21

87011324

LOCK PIN

2шт.

22

86502976

WASHER

3/4"

2шт.

23

87042678

SPACER

2шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

26

492-11112

LOCK WASHER,1 1/8"

2шт.

27

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

Non-Draper Option

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

29

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

30

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

31

86538216

BOLT,Hex, 1-1/8" x 4", Gr 5

Cap, HH, G5, 1-1/8"-7 x 4"

2шт.

32

495-21056

WASHER,1/2"

20шт.

33

86619810

BOLT,Hex, 1 1/8" - 7 x 7 1/2", Gr 5

2шт.

34

275053

SEALING STRIP

1/2" x 1" x 123" (14.4" Needed)

1шт.

35

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

36

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

37

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

38

425-1018

NUT,1 1/8"-7, G5

2шт.

39

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

40

86538215

NUT,1 1/8"-7, GB

2шт.

41

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

42

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

43

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

44

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

2шт.

45

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

46

788938

PLUG

1/4"-28

2шт.

47

86050275

LUBE NIPPLE

2шт.

48

283978

PIN,9.53mm OD

2шт.

49

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

50

495-21044

WASHER,3/8"

11шт.

51

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

Non-Draper Option

1шт.

52

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

Non-Draper Option

1шт.

53

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

Non-Draper Option

1шт.

54

87044438

PLATE

4шт.

Non-Draper Option

1шт.

55

87044413

CHANNEL

2шт.

56

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

57

492-11038

LOCK WASHER,3/8"

6шт.

58

425-106

NUT,3/8"-16, Cl 5

2шт.
