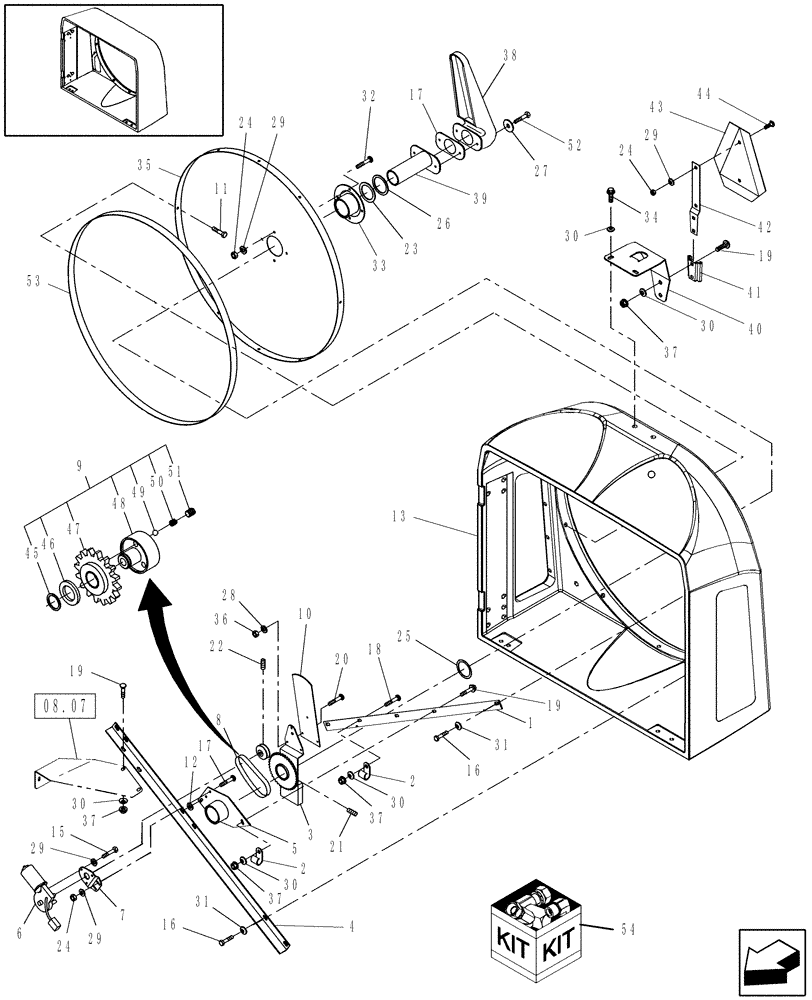

Запчасти Case IH WDX1902 (08.06[1]) - ROTARY SCREEN (08) - SHEET METAL

1

87042984

ANGLE

1шт.

2

134579

WIRE CLAMP,J

3шт.

3

86596149

HUB

1шт.

Prior To 7/06

1шт.

3

87550905

BLOCK

Hub, 40T

1шт.

When updating to the Haldex Pump, 87588019, Use Header Drive Pump Suction Kit 87574359

1шт.

3

87486023

DEFLECTOR

Replaces 87550905

1шт.

4

87042983

ANGLE

1шт.

5

86506283

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated

1шт.

5

87485682

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated, Start Year: 01-MAR-09

1шт.

6

87541053

WIPER MOTOR

1шт.

6

87488680

ELECTRIC MOTOR

, Start Year: 01-JUN-09

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Reman Motor, Shaft OD 12mm

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

6a

84210503

SPADE TERMINAL,Male, 0.20 - 0.8 mm2

Not Illustrated

2шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

7

86583849

PLATE

1шт.

7

84143360

MOUNT

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

8

86976085

CHAIN

1шт.

9

0C

ORDER COMPONENTS

Sprocket Assembly

1шт.

10

87057736

PLATE

1шт.

11

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

Prior To PIN HCA043161 (WDX1902), HCA0036124 (WDX2302)

1шт.

11

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

10шт.

From PIN HCA043161 (WDX1902), HCA0036124 (WDX2302)

1шт.

12

495-21038

WASHER,5/16"

4/ARшт.

13

87042084

FAN HOUSING

1шт.

Prior To PIN HCA043161 (WDX1902), HCA0036124 (WDX2302)

1шт.

13

87521587

HOUSING

1шт.

From PIN HCA043161 (WDX1902), HCA0036124 (WDX2302)

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

16

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

17

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

18

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

19

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

7шт.

20

84821

SCREW,Truss HD, #10 - 24 x 1/2"

3шт.

21

86512757

SET SCREW,Hex Skt, 1/4" - 20 x 3/4"

Used W/Hub 86596149

1шт.

21

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

Used W/Hub 87550905

1шт.

22

86512757

SET SCREW,Hex Skt, 1/4" - 20 x 3/4"

1шт.

23

86564668

SEAL

1шт.

24

425-104

NUT,1/4"-20, Cl 5

3шт.

25

9842468

GASKET

1шт.

26

87057652

WASHER,61.9mm ID x 77.79mm OD x 1.22mm Thk

1шт.

27

492-11025

LOCK WASHER,1/4"

8шт.

28

492-11010

LOCK WASHER,#10

3шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

4шт.

33

86506095

HUB

1шт.

34

280146

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

3шт.

35

87042486

SCREEN

1шт.

36

225-14110

NUT,#10-24

3шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

9шт.

38

87042085

ARM

1шт.

39

86638972

TUBE,163 mm L

1шт.

40

87032788

BRACKET

1шт.

41

847590

BRACKET

1шт.

42

195035

SUPPORT

1шт.

43

86547710

EMBLEM

KIT SMV

1шт.

44

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

RH

2шт.

45

103-1475

SNAP RING,#75, Ext

1шт.

46

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

47

86564592

SPROCKET

1шт.

47

87497774

SPROCKET

16 Teeth, Includes M4 x 0.70 x16 Setscrew over ISO Keyway

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

48

87396514

HUB

Services 87541053 Motor

1шт.

49

86628554

BALL,6.53mm OD, Gr 25

3шт.

50

86628555

SPRING

3шт.

51

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

3шт.

52

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

54

84209230

KIT

Rotary Screen Motor, Includes Ref 6, 6a, 7, & 47

1шт.
