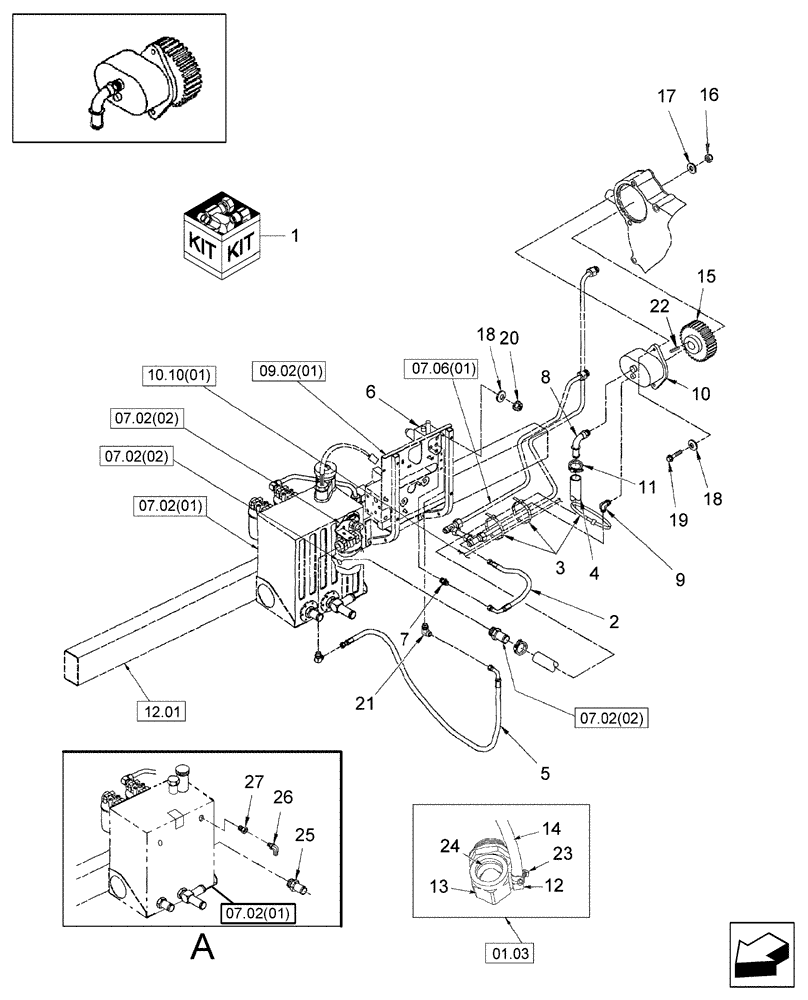

Запчасти Case IH WDX1902 (07.10[01.1]) - AUXILIARY ENGINE-MOUNTED HYDRAULIC DRIVE KIT (07) - HYDRAULIC SYSTEM

1

87536097

DIA KIT, HARVESTER

Engine-Mounted Hydraulic Drive; Includes: Ref.s 2 Thru 22 & 25 Thru 27

1шт.

2

87028064

HOSE ASSY.

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

4

87027894

HOSE,1.00" ID x 66.00", SAE 100R4

1шт.

5

87028642

HOSE ASSY.

1шт.

6

86977332

HYDRAULIC VALVE

Refer to Component Breakdown, Fig. 07.10[01.3]

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

769309

HYD CONNECTOR

Hose, 90°, Includes: O-Ring

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes O-Ring

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

86705514

HYDRAULIC PUMP,19.7 CC

Refer to Component Breakdown

1шт.

11

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

12

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

1шт.

13

86599528

FITTING

Includes: O-Ring

1шт.

13

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

14

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

15

86503175

GEAR

28T

1шт.

16

88130

NUT,1/2"-20, GC

1шт.

17

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

19

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

2шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

86512865

KEY

1шт.

23

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

2шт.

Not Included In Kit

1шт.

24

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

Not Included In Kit

1шт.

25

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

27

86550731

REDUCER

1шт.
