Запчасти Case IH WDX1902 (07.05[04.2]) - CONTROL, PROPULSION, HYDRAULIC CYLINDER COMPONENTS (07) - HYDRAULIC SYSTEM

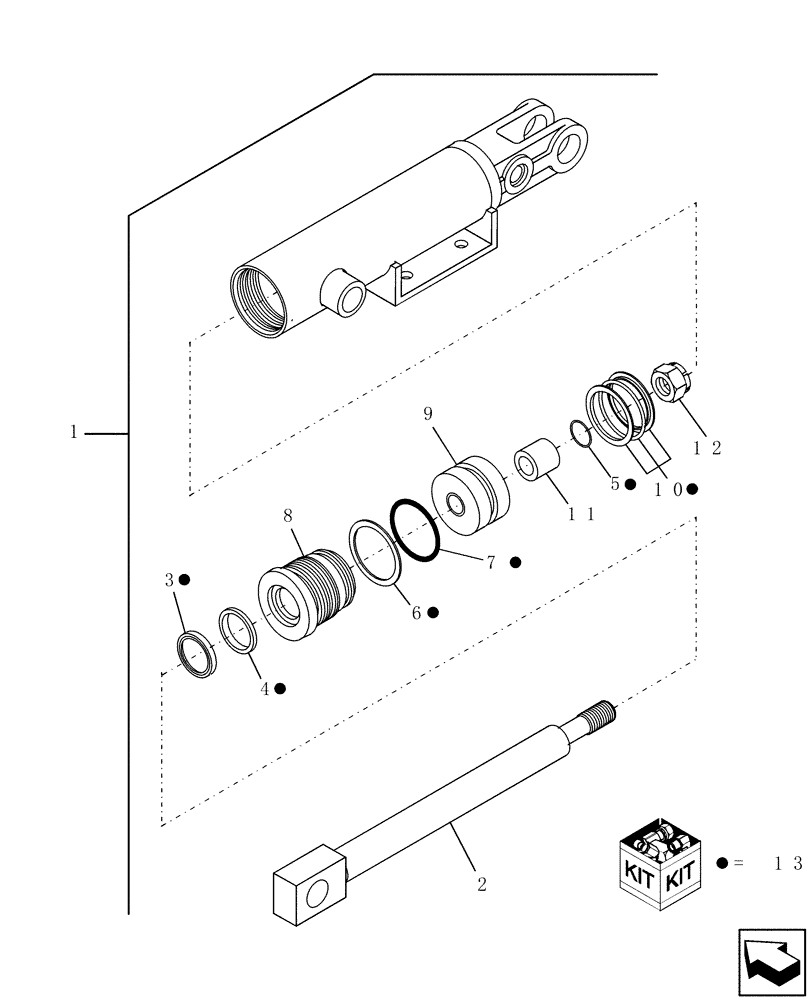

Схема запчастей Case IH WDX1902 - (07.05[04.2]) - CONTROL, PROPULSION, HYDRAULIC CYLINDER COMPONENTS (07) - HYDRAULIC SYSTEM
11
2
4
5
9
7
10
8
12
3
6
1

Артикул

Название

Примечание

Количество

1

87043536

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 83.31mm Stroke

1шт.

2

87033958

PISTON ROD/GLAND

1шт.

3

514100

OIL SEAL

1шт.

4

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

1шт.

7

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

87029765

CYLINDER END CAP

1шт.

9

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

10

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

1шт.

11

87033978

STOP DEVICE

1шт.

12

231-4648

LOCK NUT,1/2"-20, GB

1шт.

13

87029768

SEAL KIT

1шт.

Выбрано товаров: 13
