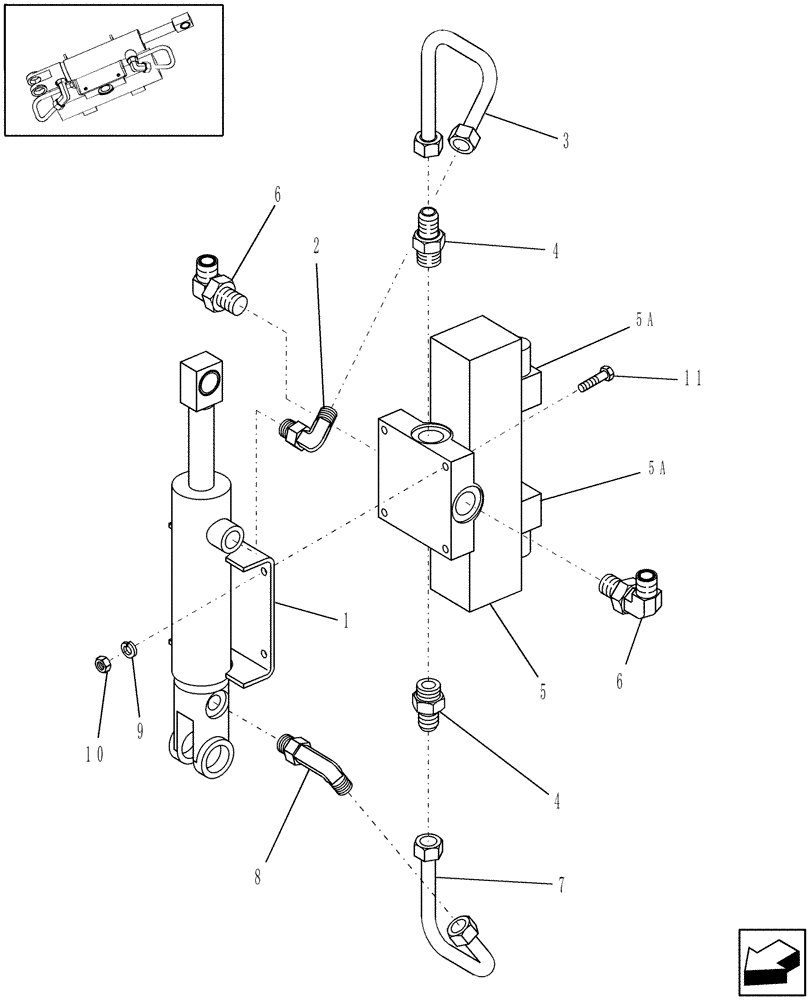

Запчасти Case IH WDX1902 (07.05[04.1]) - CONTROL, PROPULSION, HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

87043536

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 83.31mm Stroke

Propulsion, Refer To Component Breakdown, Fig. 07.05[04.2]

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

3

86974055

HYD TUBE

1шт.

4

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

5

87043393

VALVE

Propulsion Control, FNR, Includes: Ref. 5 & 5A

1шт.

5

86729490

PLATE

Sub

1шт.

5

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

1шт.

5

87043394

BY-PASS VALVE

1шт.

5a

86575234

NUT

Coil

1шт.

Services Proportional Valve, 87043394

1шт.

High Tolerance Coil Specific to Windrower Application; No Substitution Should Be Made

1шт.

5a

87623291

COIL

C-Top, 2-Pin

1шт.

Services Proportional Valve, 87043394

1шт.

High Tolerance Coil Specific to Windrower Application; No Substitution Should Be Made

1шт.

5a

87623292

COIL

C-Top, 3-Pin

1шт.

Services Proportional Valve, 87043394

1шт.

High Tolerance Coil Specific to Windrower Application; No Substitution Should Be Made

1шт.

6

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

7

86974054

HYD TUBE

1шт.

8

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

9

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

10

87304

NUT,#10-24

4шт.

11

86511678

HEX SOC SCREW,#10 - 24 x 1 1/2"

Cap, HS, #10-24 x 1-1/2"

4шт.
