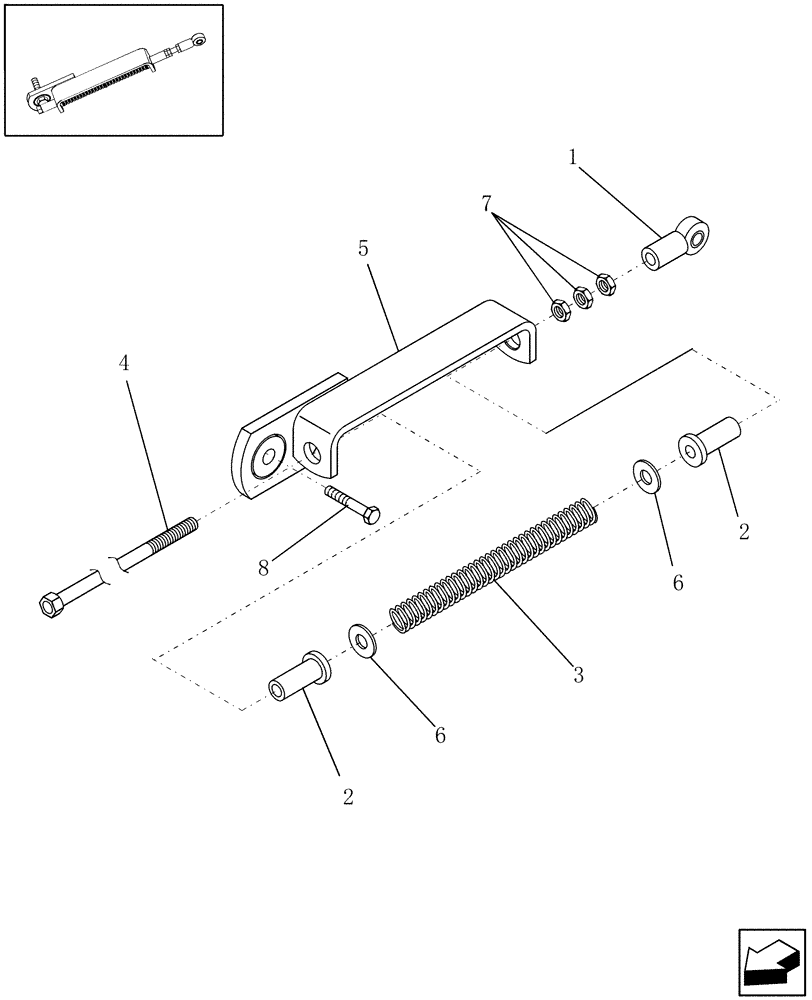

Запчасти Case IH WDX1902 (07.05[03]) - CONTROL, PROPULSION, CENTERING SPRING (07) - HYDRAULIC SYSTEM

1

86500348

BALL JOINT HEAD,3/8" - 24

Spherical, 3/8"

1шт.

2

86516886

SPACER

2шт.

3

87051655

COMPRESSION SPRING

1шт.

4

86974051

THREADED ROD

1шт.

5

86974050

SUPPORT

1шт.

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

Not Illustrated

1шт.

6

495-21044

WASHER,3/8"

2шт.

7

425-116

NUT,3/8" - 24, Gr 5

3шт.

8

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.
