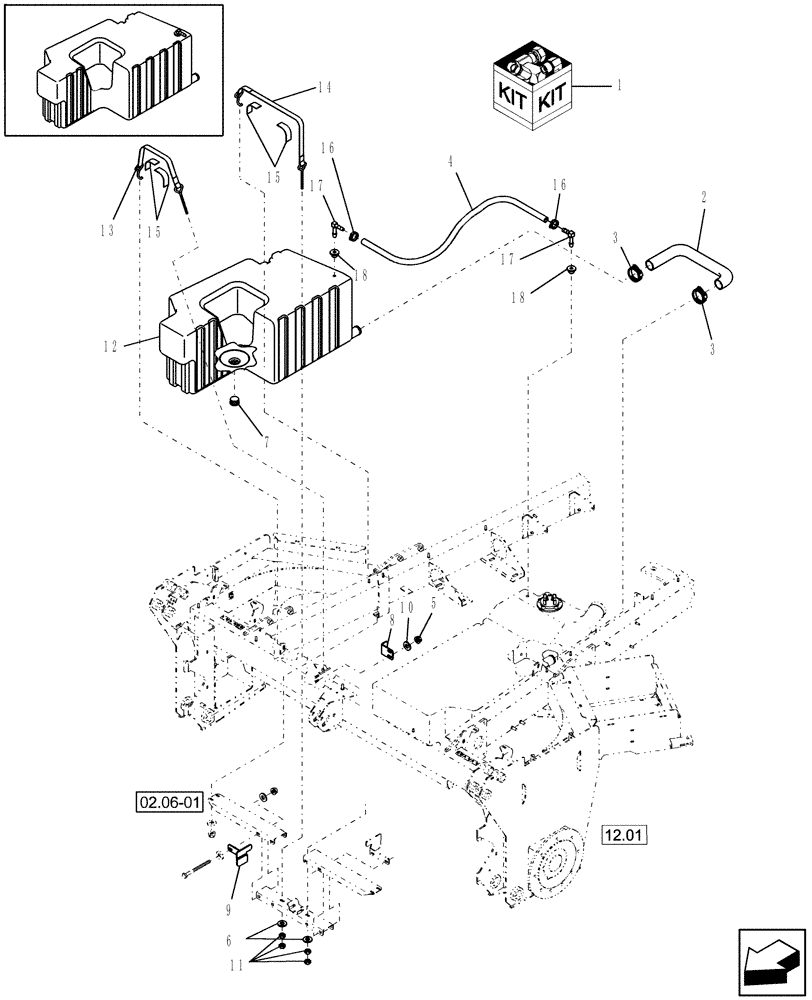

Запчасти Case IH WDX1202S (02.06[3]) - AUXILIARY FUEL TANK (02) - ENGINE EQUIPMENT

1

717178006

DIA KIT, HARVESTER

Fuel Tank, Includes: Ref.s 2 Thru 18

1шт.

2

87020532

FLEXIBLE HOSE,413.10 mm, SAE 30R6

1шт.

3

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2шт.

4

86520362

FLEXIBLE HOSE,0.38" ID x 60.00", SAE 30R7

Cut to Fit (1.6 Ft.)

1шт.

5

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

6

495-21044

WASHER,3/8"

2шт.

7

236622

PLUG,3/8" - 18 NPT

Pipe

1шт.

8

87020457

ANGLE

1шт.

9

87020456

ANGLE

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

86623321

FUEL TANK

1шт.

13

86974530

STRAP

1шт.

14

86974529

STRAP

1шт.

15

PL

PROCURE LOCALLY

Felt, Adhesive-Backed

1шт.

16

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

17

87019211

ELBOW

2шт.

18

86537556

BUSHING

2шт.
