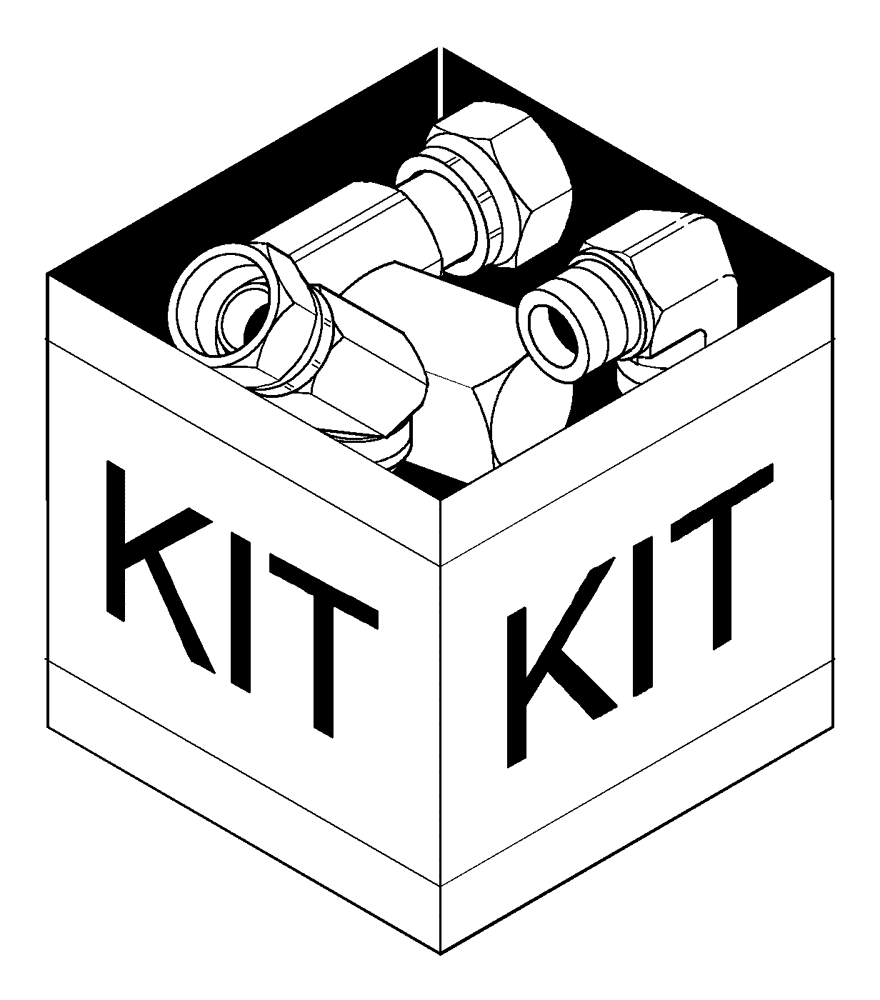

Запчасти Case IH WDX1202S (18.25) - HEADER DRIVE PUMP SUCTION KIT Attachments

1

87574359

HYD PUMP REPAIR KIT

Header Drive Pump Suction Kit, Includes Ref. 2 - 7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

PL

PROCURE LOCALLY

Loctite 59875 or Dow 735

1шт.

3

86634099

FITTING,1 1/2" Hose x 1 5/8"-12 ORB, Beaded

1шт.

4

87039085

HOSE CLAMP,32mm - 54mm

2шт.

5

87572269

HYD CONNECTOR

1шт.

6

87572385

ELBOW UNION

Union Elbow

1шт.

7

87574360

HOSE,38.1mm ID x 965.2mm L, SAE 100R4

1шт.
