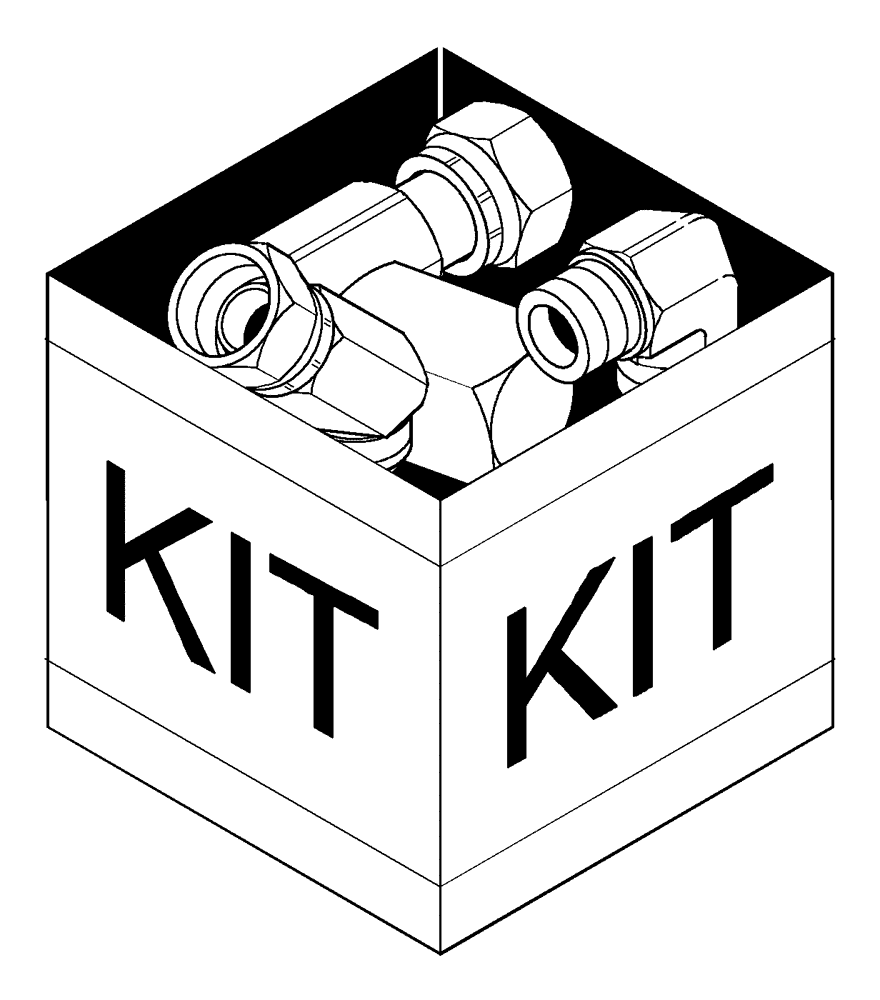

Запчасти Case IH WDX1202S (18.07[3]) - DRAPER ADAPTER KIT, STANDARD Attachments

1

87347736

DIA KIT, HARVESTER

Standard Draper Adapter; Includes: Ref.s 2 Thru 64

1шт.

1

87530395

CONVERSION KIT

Kit, Draper Campaign

1шт.

Updates TY05 Units To TY06; Contents Not Listed

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, 4" x 6"

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

4

87043583

HOSE ASSY.

L = 144"

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

6

495-21031

WASHER,1/4"

7шт.

7

225-14210

NUT,#10-32

2шт.

8

87042148

HARNESS

CN-C E4; Includes: Fuse & Relays

1шт.

9811773

FUSE,10A, Micro, Red

1шт.

86537972

RELAY

2шт.

9

87039638

HOUSING

C10-2

1шт.

10

87039580

HARNESS

RS-C E4

1шт.

11

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

4шт.

12

87545542

CONTROL VALVE

Valve, Height Control; For Component Breakdown, See Fig. 09.06

1шт.

13

87039573

HARNESS

DR-F E4

1шт.

14

87039572

HARNESS

DR-C E4; Includes: Fuse & Relays

1шт.

14

9811773

FUSE,10A, Micro, Red

1шт.

14

86509590

RELAY

20 Amp

9шт.

15

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

16

87039578

HARNESS

LT-C E4

1шт.

17

87023836

SWITCH

Rocker, Reel Speed

1шт.

18

87023837

SWITCH

Belt Speed

1шт.

12

87022274

HYDRAULIC VALVE

Tilt

1шт.

20

425-284

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

21

87036368

DUST CAP

1шт.

22

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

23

1327736C1

ELBOW

O-Ring Boss Swivel

3шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

25

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

26

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

27

87050045

COUPLING, QUICK, FEM

-8 Coupler, Female

1шт.

28

87048685

SWITCH

Rocker, Header Tilt

1шт.

29

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

2шт.

30

85999238

COUPLING, QUICK, FEM,3/8" x 3/4" - 16 ORB

1шт.

31

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

2шт.

32

492-11010

LOCK WASHER,#10

2шт.

33

87058224

HOSE,9.65 mm ID x 635 mm

W/90° Elbow

1шт.

34

87058223

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 24"

1шт.

35

87054722

HOSE,0.38" ID x 54.50", SAE 100R6

1шт.

36

87054721

HOSE ASSY.

W/ 45° Elbow, 3/8" ID, L = 136"

1шт.

37

87054720

HOSE ASSY.

W/45° Elbow, 3/8" ID, L = 76"

1шт.

38

87054719

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 141"

1шт.

39

87054718

HOSE ASSY.

W/90° Elbow, 3/8" ID, L = 166"

1шт.

40

87052976

PLATE ASSY.

Hub: L = M66

2шт.

41

87052974

PLATE ASSY.

Hub: L = M71

2шт.

42

87052733

CYLINDER ASSY.

2шт.

43

87044432

SPACER

M29 x 38 x 5.5

2шт.

44

87044431

SPACER

M29 x 44.5 x 35.5

2шт.

45

87044412

HEADLESS PIN

2шт.

46

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

20шт.

47

86538215

NUT,1 1/8"-7, GB

2шт.

48

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

16шт.

49

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

16шт.

50

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

51

413-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 5

2шт.

52

191823

WASHER

1.515" x 2.25"

10шт.

53

218-593

TEE,9/16"-18, 37 Degree

1шт.

54

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

55

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

56

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

56

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

57

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

2шт.

57

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

58

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

59

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

60

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

61

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

6шт.

62

86629544

NUT,5/16” – 18, GR B

2шт.

63

705914

ORIFICE

2шт.

64

87058225

HOSE,0.38" ID x 16.00", SAE 100R16

1шт.

65

87039579

HARNESS

LT-F E4

1шт.
