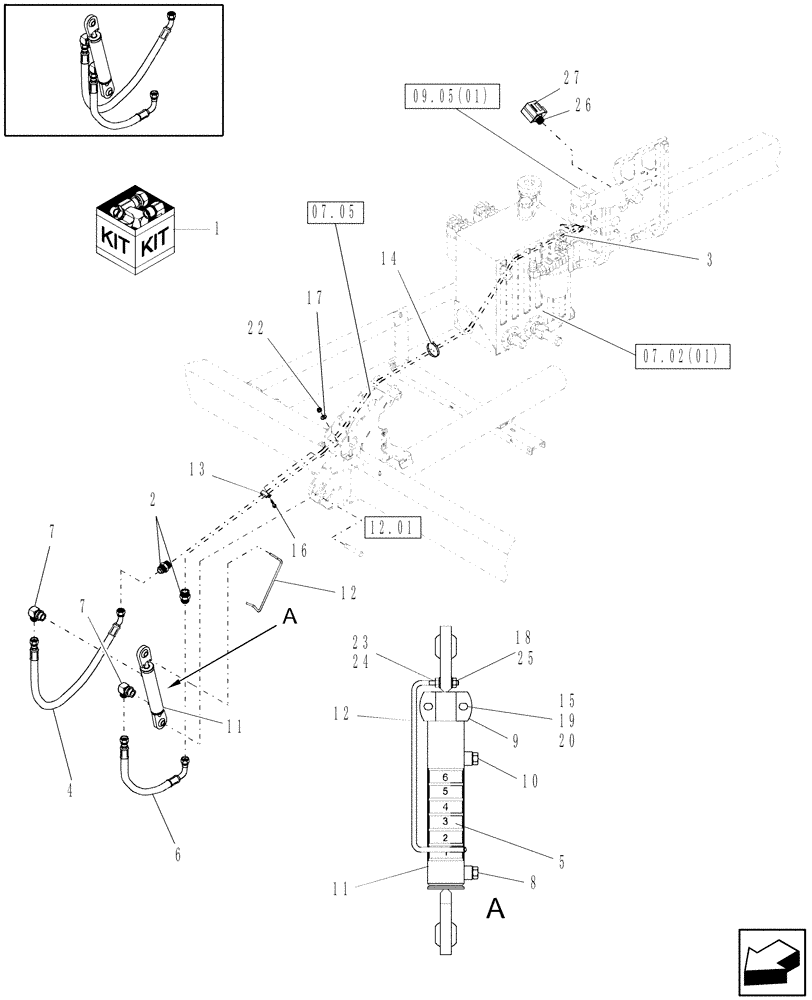

Запчасти Case IH WDX1202S (18.06) - HYDRAULIC HEADER TILT KIT Attachments
№
Артикул
Название
Примечание
Количество
1
715319066
DIA KIT, HARVESTER
Hydraulic Header Tilt
1шт.
2
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
2шт.
2
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
3
515-23444
CLAMP,1 3/4", Insul, 3/8" Bolt
1-3/4" x 3/8" Bolt
1шт.
4
87017791
HOSE ASSY.,9.53mm ID x 2667mm L
L = 105"
1шт.
5
87020604
DECAL
6-5-4-3-2-1
1шт.
6
87017790
HOSE ASSY.
L = 102"
1шт.
7
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Includes: O-Ring
2шт.
7
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
2шт.
8
87029579
ORIFICE
1шт.
9
87031052
STOP
Cylinder
2шт.
10
261066
ORIFICE,9/16" - 18, 0.813" Orifice
032"
1шт.
11
87024108
HYDRAULIC CYLINDER
Refer To Fig. 07.12
1шт.
11
87593870R
REMAN-HYD CYLINDER
WDX1002S, WDX1202S, Both CASE IH SELF PROPELLED WINDROWER TRACTOR (3/05-8/07-), Reman for New PN 87024108
1шт.
11
87593870C
CORE-HYD CYLINDER
Return Number
1шт.
12
87031926
ROD
Indicator
1шт.
Threaded; Secured W/Nuts
1шт.
12
87591631
ROD
Rod
1шт.
Plate On End; Secured W/Bolts
1шт.
13
86643219
CLAMP,Tube, 3/4"
1шт.
14
323597
CABLE TIE,165mm OAL x 9mm Thk
CABLE STRAP
2шт.
15
458-616
BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5
2шт.
16
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
1шт.
17
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
1шт.
18
425-285
FLANGE NUT,Flg, 5/16"-18, G5
1шт.
(1) Used W/87031926, (2) Used W/87341580
1шт.
19
425-286
FLANGE NUT,Flg, 3/8"-16, G5
2шт.
22
425-284
FLANGE NUT,Flg, 1/4"-20.G5
1шт.
23
425-285
FLANGE NUT,Flg, 5/16"-18, G5
1шт.
Used W/87031926
1шт.
24
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
2шт.
Used W/87341580
1шт.
Used W/87341580
1шт.
26
87740293
SOLENOID VALVE
Valve, Cartridge Check
1шт.
27
87352777
SOLENOID
1шт.
Выбрано товаров: 37
