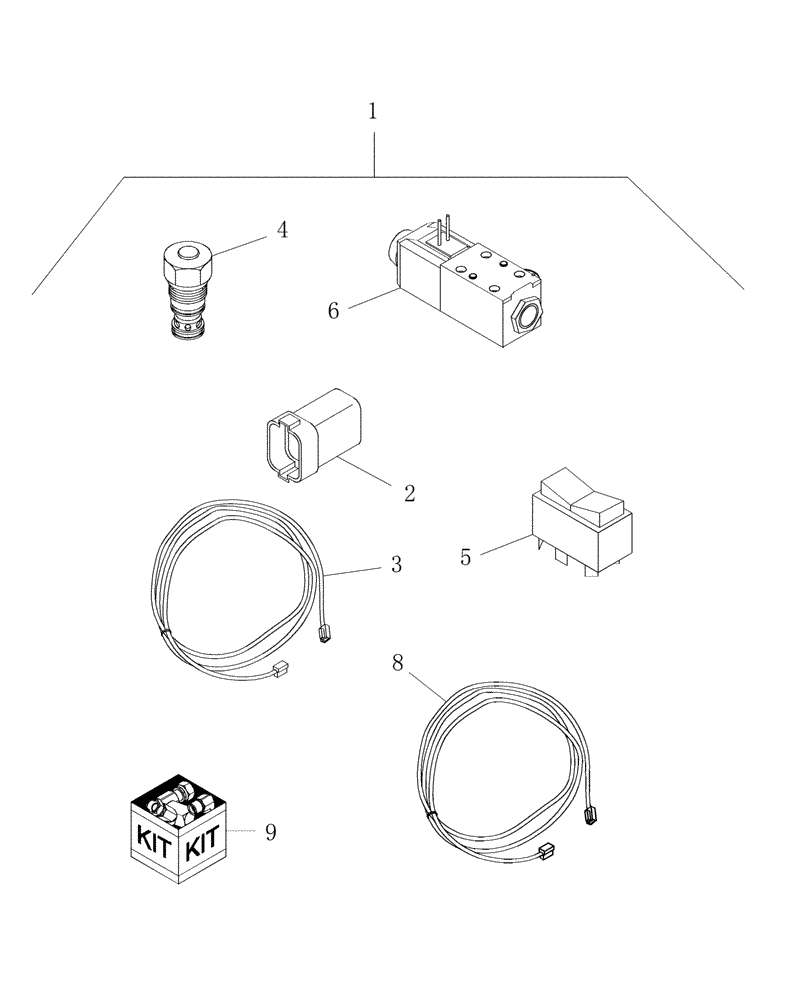

Запчасти Case IH WDX1202S (18.03) - POWER REVERSER KIT Attachments

1

716875026

DIA KIT, HARVESTER

Power Reverser

1шт.

2

225388C1

ELEC CONNECTOR,Male, 12 Pin

DT04-12PA-B016

1шт.

3

87041307

HARNESS

PR-F E, L = 2500 mm; Ref: Header PTO Reverse Solenoid

1шт.

4

87026148

VALVE PRESSURE RELIE

See Also: Ref. 9

1шт.

5

87023833

SWITCH

1шт.

6

87013679

CONTROL VALVE

1шт.

6

86514808

SEAL KIT

C-Top

1шт.

6

86575234

NUT

Coil

1шт.

6

87026108

COIL ASSY.

C-Top

1шт.

7

86593899

WEDGE

1шт.

Not Shown

1шт.

8

87040347

WIRE HARNESS

PR-C E, L = 575 mm; Ref: Header PTO Switch

1шт.

9

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit; Services Ref. 4

1шт.
