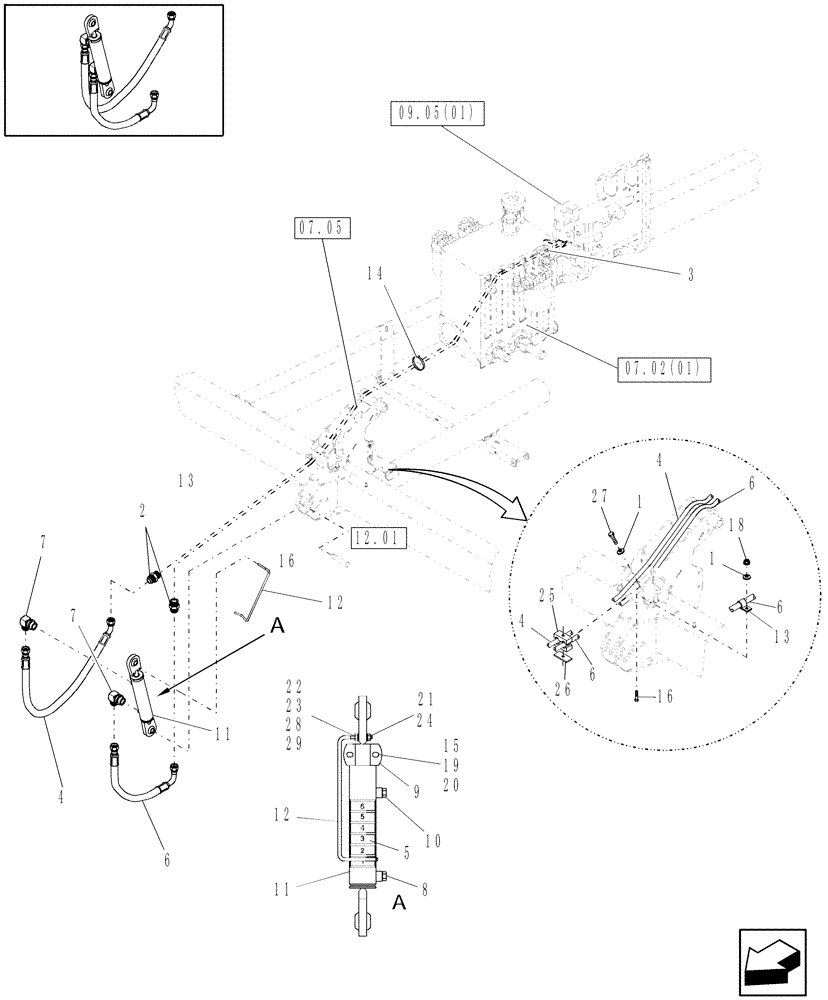

Запчасти Case IH WDX1202S (09.07[2]) - HYDRAULIC HEADER TILT SYSTEM (09) - IMPLEMENT LIFT

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4" x 3/8" Bolt

1шт.

4

87017791

HOSE ASSY.,9.53mm ID x 2667mm L

L = 105"

1шт.

5

87020604

DECAL

6-5-4-3-2-1

1шт.

6

87017790

HOSE ASSY.

L = 102"

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

261066

ORIFICE,9/16" - 18, 0.813" Orifice

1шт.

9

87031052

STOP

Cylinder

2шт.

Prior to Y6B41xxxx (12/2006)

1шт.

9

87604521

CYLINDER BLOCK

Cylinder

2шт.

Production hoses are 5.17' and 9.25' long

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

10

87029579

ORIFICE

1шт.

11

87024108

HYDRAULIC CYLINDER

Refer To Component Breakdown, Fig. 07.12 (1)

1шт.

Prior to Y6B41xxxx (12/2006)

1шт.

11

87593870R

REMAN-HYD CYLINDER

WDX1002S, WDX1202S, Both CASE IH SELF PROPELLED WINDROWER TRACTOR, Prior to Y6B41xxxx (12/2006) (3/05-8/07-), Reman for New PN 87024108

1шт.

11

87593870C

CORE-HYD CYLINDER

Return Number

1шт.

11

87593870

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 152.4mm Stroke

2" x 6", Refer To Component Breakdown, Fig. 07.12 (2)

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

11

87593870R

REMAN-HYD CYLINDER

WDX1002S, WDX1202S, Both CASE IH SELF PROPELLED WINDROWER TRACTOR, 2" x 6", P.I.N. Y6B41xxxx (01/2007) & After (3/05-8/07)

1шт.

11

87593870C

CORE-HYD CYLINDER

Return Number

1шт.

12

87031926

ROD

Indicator

1шт.

Threaded; Secured W/Nuts

1шт.

12

87591631

ROD

Rod

1шт.

Plate On End; Secured W/Bolts

1шт.

Prior to Y6B41xxxx (12/2006)

1шт.

12

87591631

ROD

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

13

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

14

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

2шт.

15

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

16

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

Ref. Not Used

1шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

19

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

(1) Used W/87031926, (2) Used W/87341580

1шт.

22

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

Used W/87031926

1шт.

Prior to Y6B41xxxx (12/2006)

1шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

Used W/87341580

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Used W/87341580

1шт.

25

87000150

CLAMP,15.869mm ID

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

26

87583054

MTLG PLATE

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

27

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

28

280562

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.

29

772028

CLIP

1шт.

P.I.N. Y6B41xxxx (01/2007) & After

1шт.
