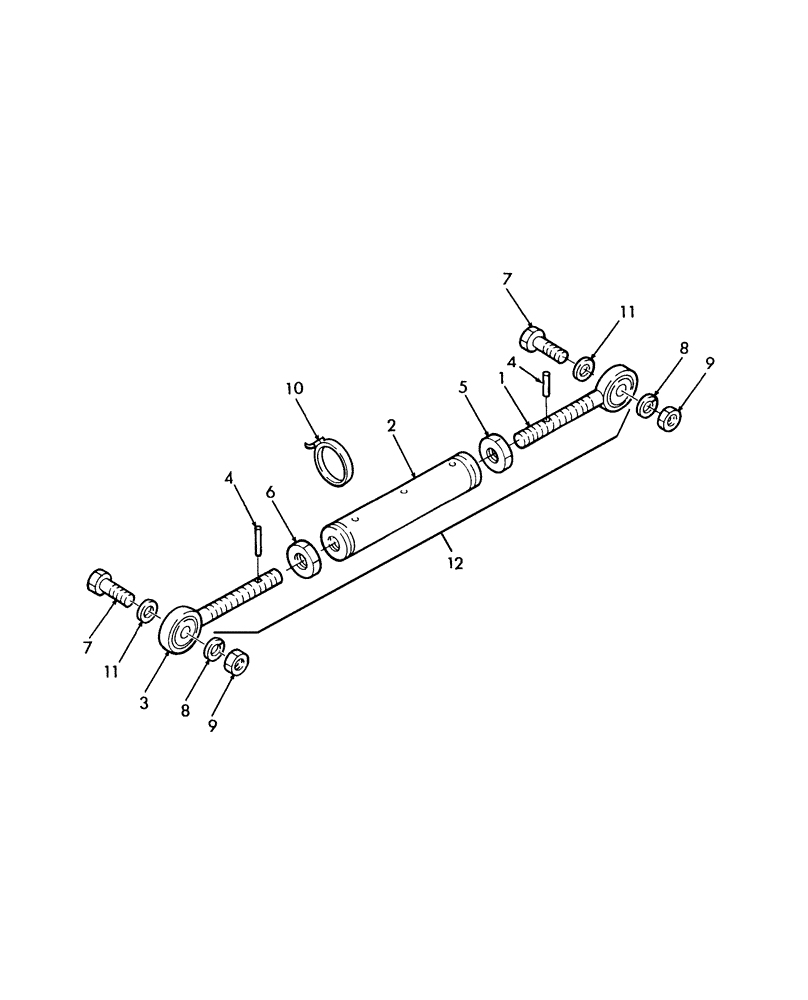

Запчасти Case IH WDX1202S (09.07[1]) - MECHANICAL HEADER TILT SYSTEM (09) - IMPLEMENT LIFT

1

87011806

LIFT LINK

End, RH

1шт.

2

86623385

TUBE,356 mm L

1шт.

3

87011805

LIFT LINK

End, LH

1шт.

4

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

2шт.

5

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

1шт.

6

80615

SEAL

1шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

8

492-11075

LOCK WASHER,3/4"

2шт.

9

425-1012

NUT,3/4"-10, G5

2шт.

10

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

2шт.

11

495-21081

WASHER,3/4"

2шт.

12

87029783

SHIELD

Top Link, Mechanical, Includes: Ref. 1 thru 6

1шт.
