(09.01[04]) - CUT HEIGHT, DRAPER LINKAGE

Запчасти Case IH WDX1202S (09.01[04]) - CUT HEIGHT, DRAPER LINKAGE (09) - IMPLEMENT LIFT

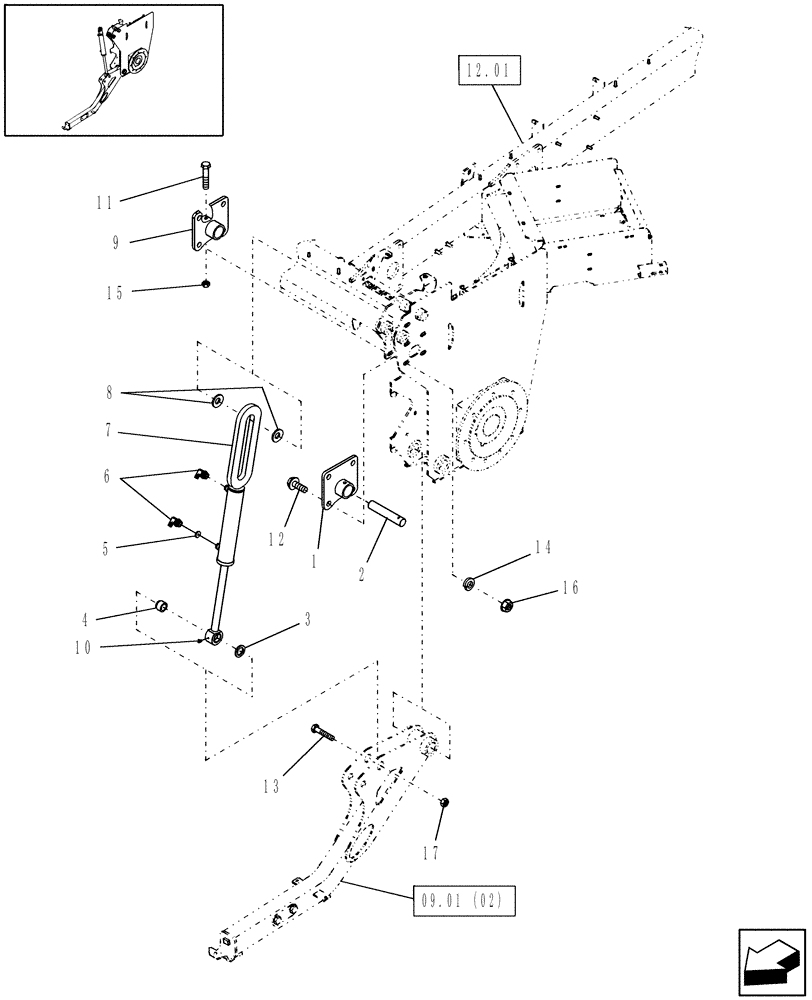

Схема запчастей Case IH WDX1202S - (09.01[04]) - CUT HEIGHT, DRAPER LINKAGE (09) - IMPLEMENT LIFT
3
13
5
11
15
1
4
17
2
12.01
16
12
10
7
09.01 (02)
9
14
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87052976

PLATE ASSY.

2шт.

2

87044412

HEADLESS PIN

2шт.

3

87044432

SPACER

2шт.

4

87044431

SPACER

2шт.

5

705914

ORIFICE

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

7

87052733

CYLINDER ASSY.

Cut Height; For Component Breakdown, See Fig. 09.01[06]

2шт.

8

191823

WASHER

10/ARшт.

9

87052974

PLATE ASSY.

2шт.

10

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

12

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

16шт.

13

86631897

BOLT

Cap, HH, G5, 1-1/8"-7 x 5"

2шт.

14

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

15

232-4145

LOCK NUT,5/16"-18, GC

2шт.

16

86521608

FLANGE NUT,Flg, 5/8"-11, G5

16шт.

17

86538215

NUT,1 1/8"-7, GB

2шт.
