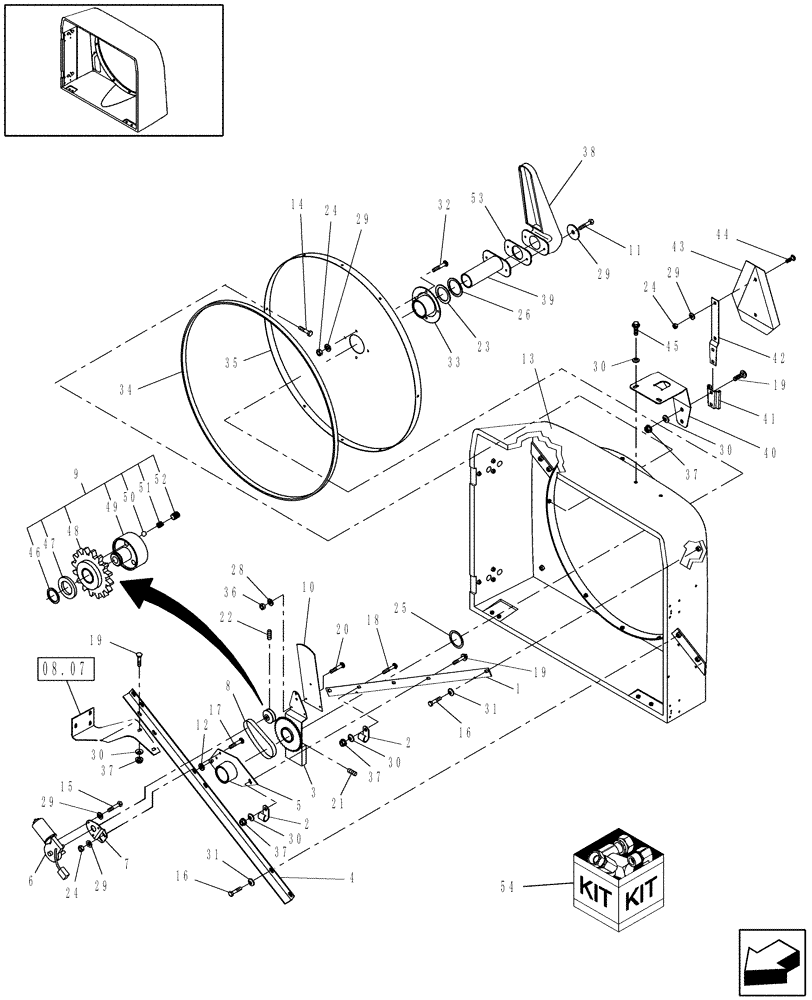

Запчасти Case IH WDX1202S (08.06[2]) - ROTARY SCREEN (08) - SHEET METAL

1

87020920

ANGLE

1шт.

2

134579

WIRE CLAMP,J

3шт.

3

86596149

HUB

, Years: -01-JUL-06

1шт.

3

87550905

BLOCK

, Start Year: 01-AUG-06

1шт.

3

87486023

DEFLECTOR

, Start Year: 01-MAR-09

1шт.

4

87020919

ANGLE

1шт.

5

86506283

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated

1шт.

5

87485682

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated, Start Year: 01-MAR-09

1шт.

6

87541053

WIPER MOTOR

Shaft OD 9.5mm

1шт.

6

87488680

ELECTRIC MOTOR

Shaft OD 12mm, Start Year: 01-JUN-09

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Shaft OD 12mm

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

6a

84210503

SPADE TERMINAL,Male, 0.20 - 0.8 mm2

, Start Year: 01-JUN-09

2шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

7

86583849

PLATE

1шт.

7

84143360

MOUNT

, Start Year: 01-JUN-09

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

8

86976085

CHAIN

1шт.

9

0C

ORDER COMPONENTS

Sprocket

1шт.

10

87057653

PLATE

1шт.

11

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

12

495-21038

WASHER,5/16"

4/ARшт.

13

86974643

FAN HOUSING

1шт.

Prior To 8/06

1шт.

13

87541347

HOUSING

Housing

1шт.

From 8/06

1шт.

14

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

Prior To 8/06

1шт.

14

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

From 8/06

1шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

16

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

17

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

18

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

19

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

7шт.

20

84821

SCREW,Truss HD, #10 - 24 x 1/2"

3шт.

21

86512757

SET SCREW,Hex Skt, 1/4" - 20 x 3/4"

Used W/Hub 86596149

1шт.

21

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

Used W/Hub 87550905

1шт.

22

86512757

SET SCREW,Hex Skt, 1/4" - 20 x 3/4"

1шт.

23

86564668

SEAL

1шт.

24

425-104

NUT,1/4"-20, Cl 5

3шт.

25

122257

WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk

2/ARшт.

26

87057652

WASHER,61.9mm ID x 77.79mm OD x 1.22mm Thk

1шт.

27

492-11025

LOCK WASHER,1/4"

8шт.

28

492-11010

LOCK WASHER,#10

3шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

4шт.

33

86506095

HUB

1шт.

34

689142

SEALING STRIP

1/4"-20 x 3/4" x 80" Long

1шт.

35

86506098

SCREEN

1шт.

36

225-14110

NUT,#10-24

3шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

9шт.

38

86617970

ARM

1шт.

39

86638972

TUBE,163 mm L

1шт.

40

87032788

BRACKET

1шт.

41

847590

BRACKET

1шт.

42

195035

SUPPORT

1шт.

43

86547710

EMBLEM

KIT SMV

1шт.

44

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

RH

2шт.

45

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

Prior To 8/06

1шт.

45

280146

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

3шт.

From 8/06

1шт.

46

103-1475

SNAP RING,#75, Ext

1шт.

47

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

48

86564592

SPROCKET

1шт.

48

87497774

SPROCKET

16 Teeth, Includes M4 x 0.70 x16 Setscrew, nss, Start Year: 01-JUN-09

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

49

87396514

HUB

Services 87541053 Motor

1шт.

50

86628554

BALL,6.53mm OD, Gr 25

3шт.

51

86628555

SPRING

3шт.

52

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

3шт.

54

84209230

KIT

Rotary Screen Motor Kit, Includes Ref 6, 6a, 7 & 48, Start Year: 01-JUN-09

1шт.
