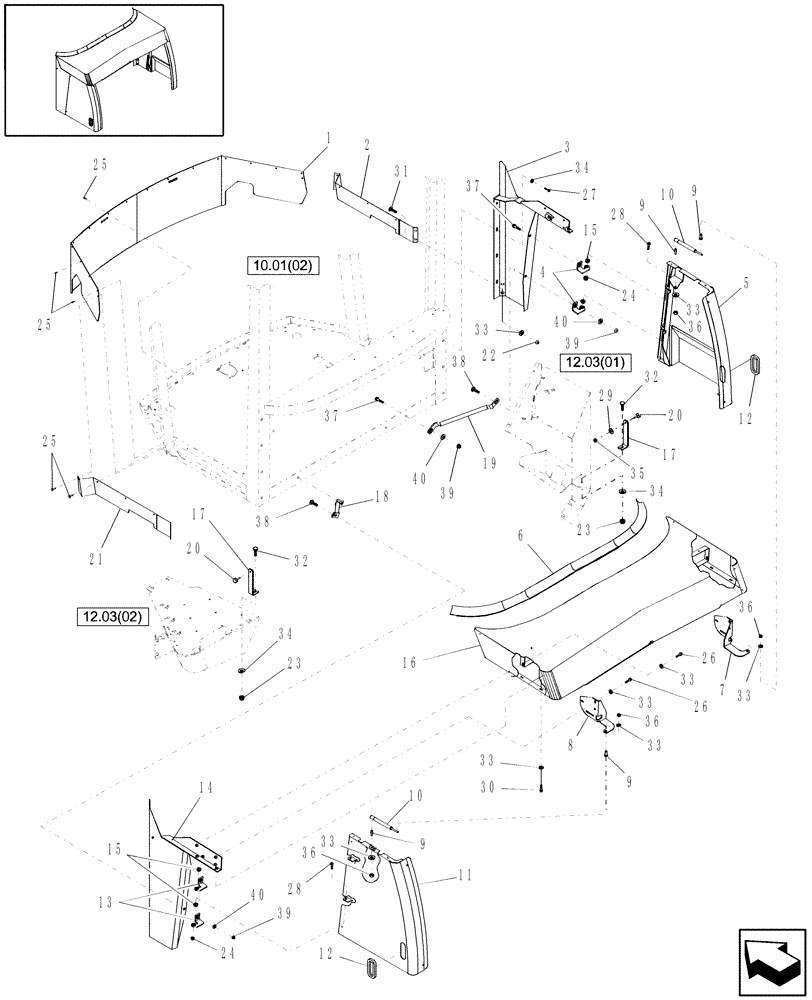

Запчасти Case IH WDX1202S (08.01[2]) - SHIELDING, FRONT (08) - SHEET METAL

1

87031810

SKIRT

1шт.

2

87043048

SKIRT

1шт.

3

87031443

PANEL ASSY.

1шт.

4

86974579

SUPPORT ASSY.

RH

2шт.

5

87031411

PANEL ASSY.

1шт.

6

87019003

SEAL

Trim, 6.5'; Cut To Fit

1шт.

7

87031454

MOUNTING PARTS

RH

1шт.

8

87047890

MOUNTING PARTS

LH

1шт.

9

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

4шт.

10

87022636

SPRING

Gas

2шт.

11

87031410

PANEL ASSY.

1шт.

12

3962571

HANDLE

2шт.

13

86974578

SUPPORT

LH

2шт.

14

87031442

PANEL ASSY.

1шт.

15

86596605

SPACER

4шт.

16

87031448

COVER ASSY

1шт.

17

87031455

ANGLE

2шт.

18

87031891

BRACE

1шт.

19

87031892

BRACE

1шт.

20

259672A2

BUMPER

2шт.

21

87043046

SKIRT

1шт.

22

425-285

FLANGE NUT,Flg, 5/16"-18, G5

8шт.

23

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

24

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

25

86636801

SELF-TAP SCREW

WH, S#3 Pt, #10 x 1"

24шт.

26

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

27

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

8шт.

28

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

30

87027009

CAPSCREW,Button Hd, 5/16" x 0.75"

CS HS BH, 5/16" x 3/4"

4шт.

31

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

32

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

35

825-1406

NUT,M6, Cl 8

2шт.

36

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

37

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

38

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

39

425-288

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

40

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.
