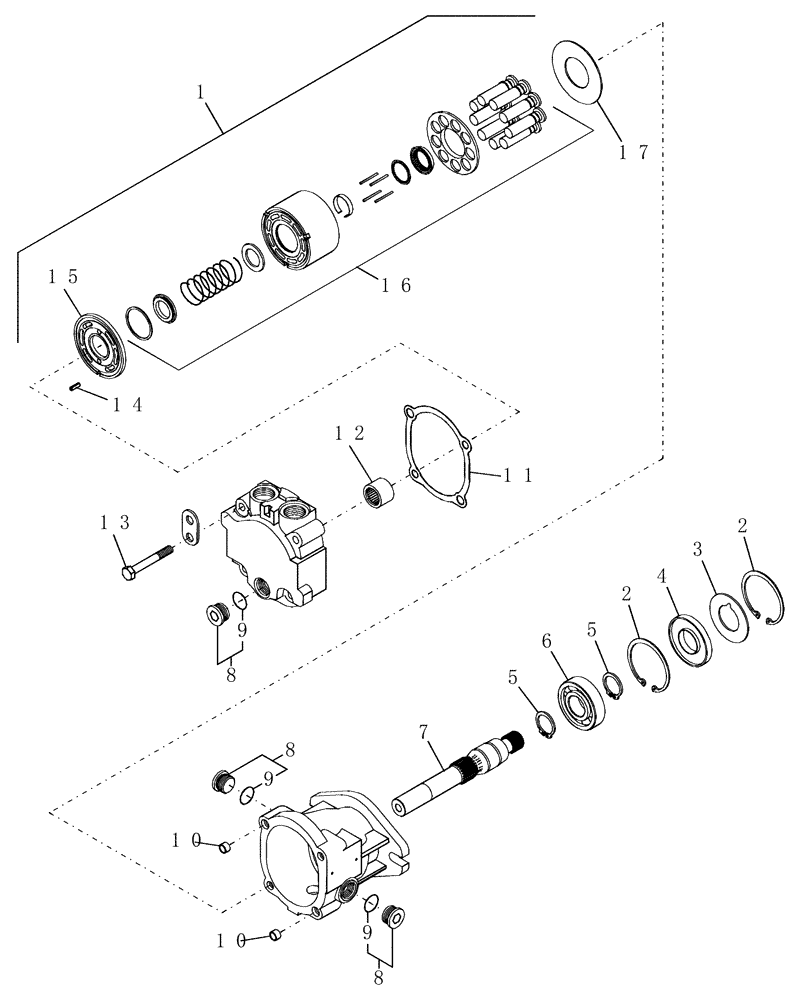

Запчасти Case IH WDX1202S (07.09[2]) - SICKLE HEADER DRIVE MOTOR, HDX2 SERIES (07) - HYDRAULIC SYSTEM

1

86837566

HYDRAULIC MOTOR

44cc, Sauer Sundstrand

1шт.

To Operate The HDX2 Series Headers

1шт.

1

86837566R

REMAN-HYD MOTOR

WDX1002S, WDX1202, WDX1202S, All (3/05-8/07), WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

1

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

87298004

REMAN-HYD MOTOR

WDX1002S, WDX1202, WDX1202S, WDX1902, WDX2302, SP Windrower

1шт.

1

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

100-21281

SNAP RING,2.812", Int, #281

2шт.

3

86537277

WASHER

1шт.

4

86502227

SEAL,32.99mm ID x 72.31mm OD x 9.53mm Thk

Lip

1шт.

5

100-11137

SNAP RING,#137, Ext

2шт.

6

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

1шт.

7

86556660

SHAFT

1шт.

8

86508737

PLUG,7/8" - 14

HSH, 7/8"-14 UNF

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

86554721

ROLL PIN

2шт.

11

86556366

GASKET

1шт.

12

F62094

NEEDLE BEARING

1шт.

13

931642R1

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

14

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

15

NSS

NOT SOLD SEPARAT

Valve Plate

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Block Kit

1шт.

17

86502277

THRUST PLATE

1шт.
