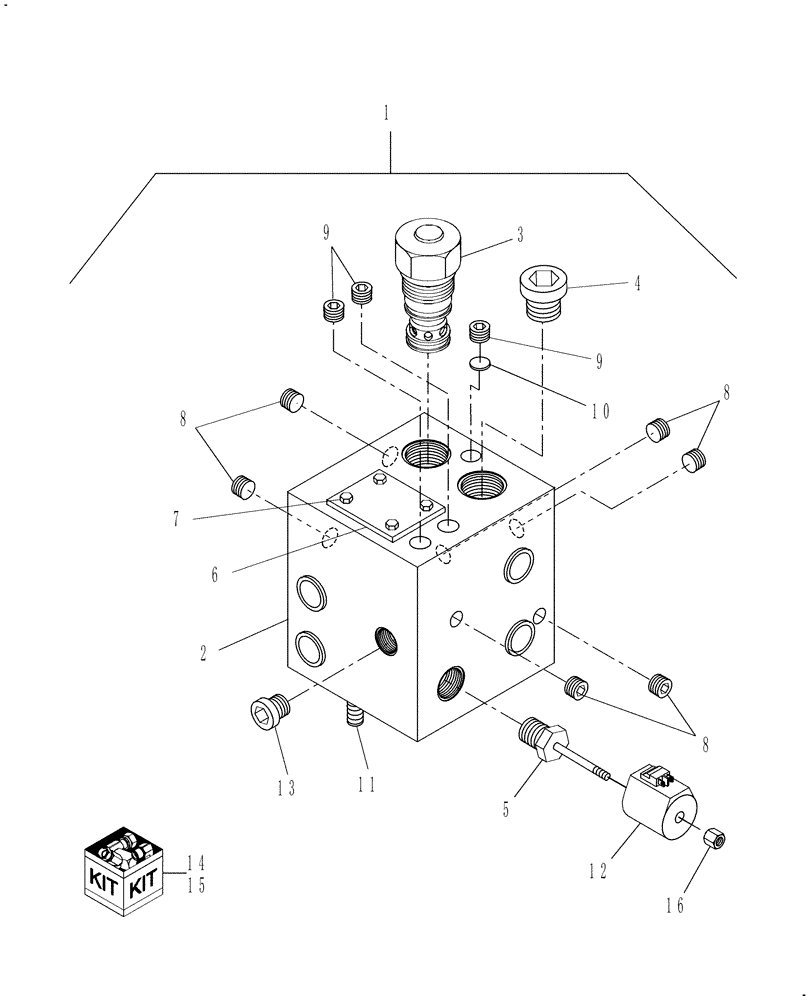

Запчасти Case IH WDX1202S (07.08) - HEADER CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

87373667

CONTROL VALVE

Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold

1шт.

3

87013678

VALVE PRESSURE RELIE

1шт.

4

87037032

PLUG

Zero-Leak -20, 1-5/8"-12

1шт.

5

87372919

VALVE PRESSURE RELIE

Includes Ref. 16

1шт.

6

87025775

PLATE

Blanking

1шт.

7

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

1шт.

8

87037029

PLUG

Zero-Leak -2, 5/16"-24

7шт.

9

87037031

PLUG

Zero-Leak -6, 9/16"-18

4шт.

10

87025778

PLUG

Orifice, 0.060"

1шт.

11

NSS

NOT SOLD SEPARAT

Stud, Threaded

2шт.

12

87352779

SOLENOID

1шт.

13

87038568

STOP PLUG

Zero-Leak -12, 1-1/16"-12

1шт.

14

87025780

SEAL KIT

Services Ref. 3, Diff Pressure Sensing Valve

1шт.

15

87026589

SEAL KIT

Services Ref. 5, Relief Valve

1шт.

16

86516836

NUT

1шт.
