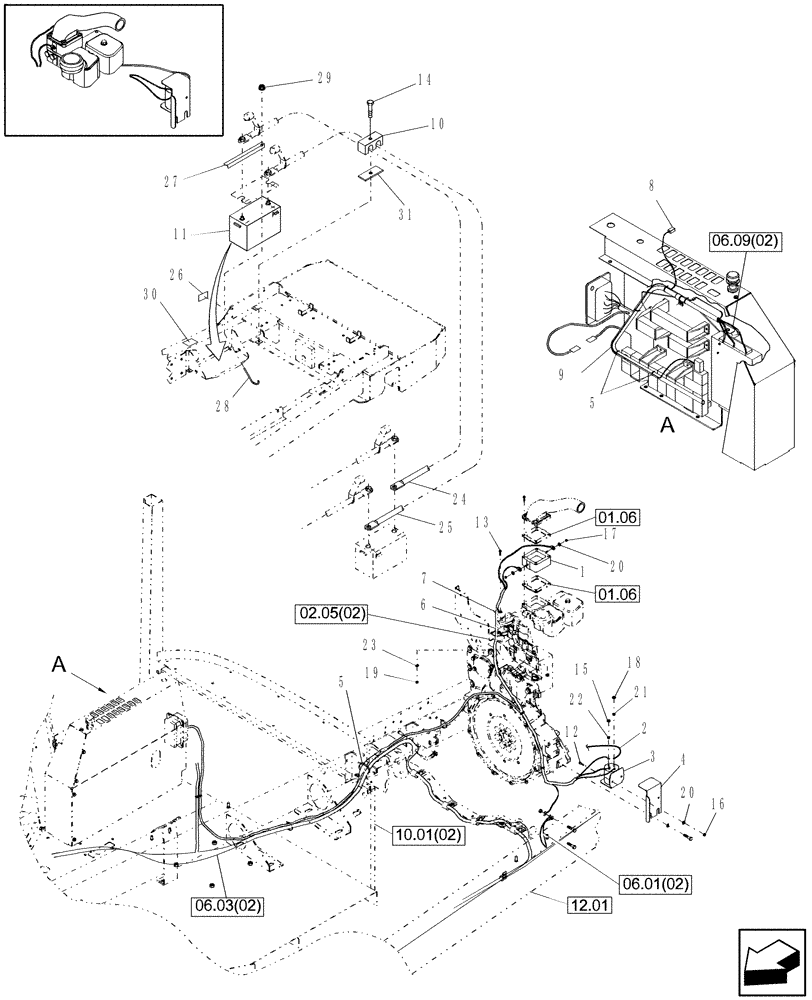

Запчасти Case IH WDX1202S (06.13[3]) - COLD START (06) - ELECTRICAL SYSTEMS

82017872

HEATER

1шт.

2

87042839

ELECTRIC CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

87043023

BRACKET

1шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

15шт.

6

87039571

HARNESS

Wire, PH-F

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

86631307

SWITCH

Cold Start

1шт.

9

87039570

HARNESS

Wire, PH-C

1шт.

10

86643219

CLAMP,Tube, 3/4"

3/4" Tube

1шт.

11

BMF31FSW

DRY BATTERY

1шт.

12

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

231-4144

NUT,1/4"-20, GB

1шт.

Not Shown

1шт.

15

225-14210

NUT,#10-32

2шт.

16

425-284

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

17

832-46406

NUT,M6 x 1, Cl 8

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

492-11010

LOCK WASHER,#10

2шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

24

86533717

ELECTRIC CABLE

Battery, NEGATIVE

1шт.

25

86533716

ELECTRIC CABLE

Battery, POSITIVE

1шт.

26

87054970

DECAL

DANGER, POISON

1шт.

27

794967

SUPPORT

Battery Strap

1шт.

28

798180

BOLT

2шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

76776

DECAL

Battery Terminal; English

1шт.

30

682668

DECAL

Battery Terminal; French

1шт.

30

86600682

DECAL

Battery Terminal; Spanish

1шт.

31

621326

PAD

1шт.
