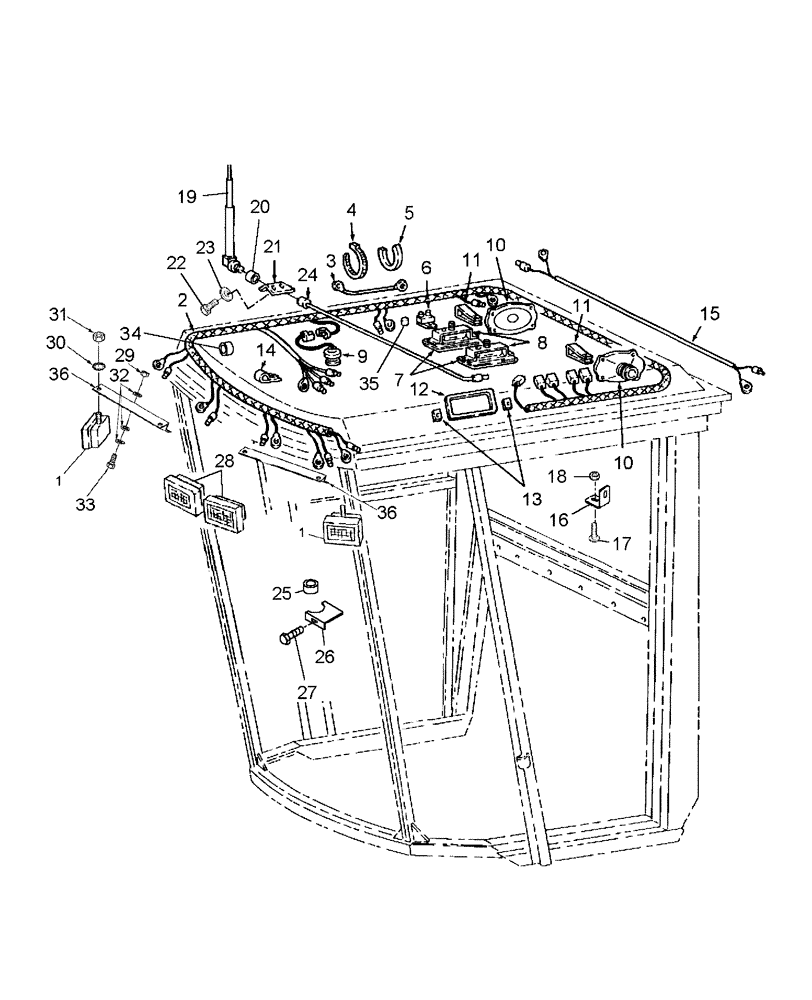

Запчасти Case IH WDX1202S (06.09[2]) - CAB ROOF ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

86705725

LAMP,Halogen, 12V, 50W, Clear

Flood, 50W 12V; Includes: Bulb

2шт.

1

87026085

BULB

2шт.

2

87038495

HARNESS

Wire, Cab

1шт.

2

248712

BODY

1шт.

2

784374

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

Wire, Antenna Ground, 25" (635mm) 14 Gauge, Black

1шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

5

PL

PROCURE LOCALLY

Foam

1шт.

6

768106

CIRCUIT BREAKER

6 AMP

1шт.

6

280-5458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

792933

BULB

2шт.

7

87654

SELF-TAP SCREW,Slotted Rd Hd, #8 x 1/2"

4шт.

8

798817

BRACKET

2шт.

8

495-31022

WASHER,#10

2шт.

8

493-21020

LOCK WASHER,Int Tooth, #10

2шт.

8

225-14110

NUT,#10-24

2шт.

9

86599526

CEILING LAMP

Console

1шт.

9

440-10636

SCREW,Cross Pan Hd, #6-32 x 2 1/4"

2шт.

9

86640249

SPACER

2шт.

9

495-31016

WASHER,#6

2шт.

9

225-14106

NUT,#6-32

2шт.

10

86610665

SPEAKER

20W

2шт.

10

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

8шт.

11

639083

NUT

Speed, 1/4"-20

8шт.

12

86637041

INSTRUMENT PANEL

1шт.

12

86621213

DECAL

Radio

1шт.

12

495-31022

WASHER,#10

2шт.

12

225-14110

NUT,#10-24

2шт.

13

86640249

SPACER

6шт.

14

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

15

847676

WIRE HARNESS

55" Lg., Low Pressure Switch to AC Circuit Breaker & AC Thermostat

1шт.

16

86640250

BRACKET

Radio

1шт.

17

84909

SCREW,Slotted Truss Hd, 1/4" - 20 x 3/4"

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

86531922

ANTENNA

1шт.

20

86534495

GROMMET

1шт.

21

86536946

BRACKET

1шт.

22

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

23

495-11028

WASHER,1/4", SAE

2шт.

24

86528584

CABLE,108mm L

1шт.

25

677603

GROMMET

1шт.

26

9841665

ANGLE

1шт.

27

86616035

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

1шт.

28

86705727

LAMP

Trap, 50W 12V; Includes: Bulb

2шт.

28

87026085

BULB

2шт.

29

425-105

NUT,5/16"-18, G5

4шт.

30

493-41052

LOCK WASHER,Ext Tooth, 1/2"

6шт.

31

425-148

JAM NUT,Jam, 1/2"-13, G5

6шт.

32

495-21038

WASHER,5/16"

1шт.

33

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

34

86528128

GROMMET

1/4" wide slot

1шт.

35

620536

SPACER

1шт.

35

88825

SELF-TAP SCREW,Hex, 5/16" - 12 x 1-1/4"

1шт.

36

86501088

BRACKET

Light

2шт.
