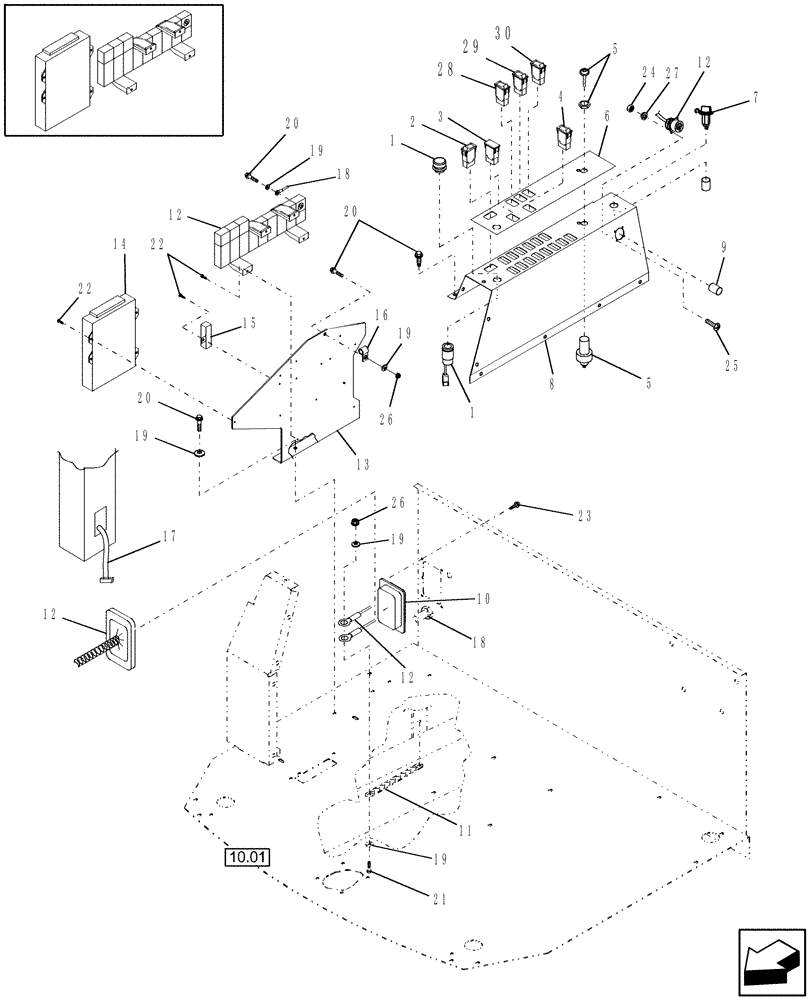

Запчасти Case IH WDX1202S (06.08[2]) - CAB ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

82027013

SWITCH ASSY

1шт.

2

87050749

SWITCH

Park Brake

1шт.

3

84320263

BLANK-OFF PLUG

1шт.

4

87023729

SWITCH

1шт.

5

641833

IGNITION SWITCH

1шт.

6

87041399

DECAL

& Cover

1шт.

6

87351366

DECAL

& Cover

1шт.

For Use W/Draper Heads

1шт.

7

86626904

OUTLET

Power, Includes: Ref. 42 - 44

1шт.

8

87039980

TOP

Console; See Also: Fig. 10.14[03]

1шт.

9

84074633

COVER

1шт.

10

87016212

FLANGE

Connector, 4 x 6

1шт.

11

87035431

GROUND STRAP

1шт.

12

87038497

HARNESS

Wire

1шт.

For Components, See Ref.s 35 Thru 44

1шт.

Non-Draper Option

1шт.

12

87346285

KIT

1шт.

Draper Option

1шт.

For Components, See Ref.s 32 Thru 44

1шт.

13

87039979

PANEL

1шт.

14

87038484

ECU

(XCM)

1шт.

Prior To 12/06

1шт.

87686360R

REMAN ELECT CONTROL

WDX1202 (3/05-8/07), Reman for New P/N 87038484

1шт.

87686360C

CORE-ELECTRONIC CONT

Return Number

1шт.

14

87388792

ECU

Electronic Unit, Control (XCM)

1шт.

From 12/06

1шт.

87686360R

REMAN ELECT CONTROL

WDX1202 (3/05-8/07), Reman for New P/N 87388792

1шт.

87686360C

CORE-ELECTRONIC CONT

Return Number

1шт.

15

86705351

RESISTOR

50 ohm

1шт.

16

700514

CLAMP,3.8mm, Coat, M8 Bolt

15/16" x 5/16" Bolt

1шт.

17

87038495

HARNESS

1шт.

18

87039586

HARNESS

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

22

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Thread-Forming, M4 x 10

8шт.

23

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

4шт.

24

825-1403

NUT,M3, Cl 8

4шт.

25

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

4шт.

26

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

27

86509827

LOCK WASHER,M3

4шт.

28

87023836

SWITCH

Rocker, Reel Speed

1шт.

For Use W/Draper Heads

1шт.

29

87048685

SWITCH

Header Tilt

1шт.

For Use W/Draper Heads

1шт.

30

87023837

SWITCH

Belt Speed

1шт.

For Use W/Draper Heads

1шт.

31

Reference Not Used

1шт.

32

84058092

CONTACT HOUSING,120 Ohm Resistor

Housing

2шт.

Not Shown

1шт.

33

9811773

FUSE,10A, Micro, Red

5шт.

Not Shown

1шт.

34

83932926

FUSE,25A

1шт.

Not Shown

1шт.

35

9623775

FUSE,5 Amp

6 Amp

3шт.

Not Shown

1шт.

36

9804895

FUSE,20A, Micro, Yellow

6шт.

Not Shown

1шт.

37

9623774

FUSE,15 Amp

16 Amp

2шт.

Not Shown

1шт.

38

86537972

RELAY

Bosch A 332 202 544

3шт.

Not Shown

1шт.

39

86509590

RELAY

Micro Module

12шт.

Not Shown

1шт.

40

87040745

AUTOM.CIRCUITBREAKER

60 Amp

4шт.

Not Shown

1шт.

41

774735

DIODE,6A

Style 30, 6 Amp

6шт.

Not Shown

1шт.

42

190812A1

COVER

1шт.

Not Illustrated

1шт.

43

308905A1

CIGARETTE LIGHTER

1шт.

Not Illustrated

1шт.

44

308904A1

CIGARETTE LIGHTER

1шт.

Not Illustrated

1шт.
