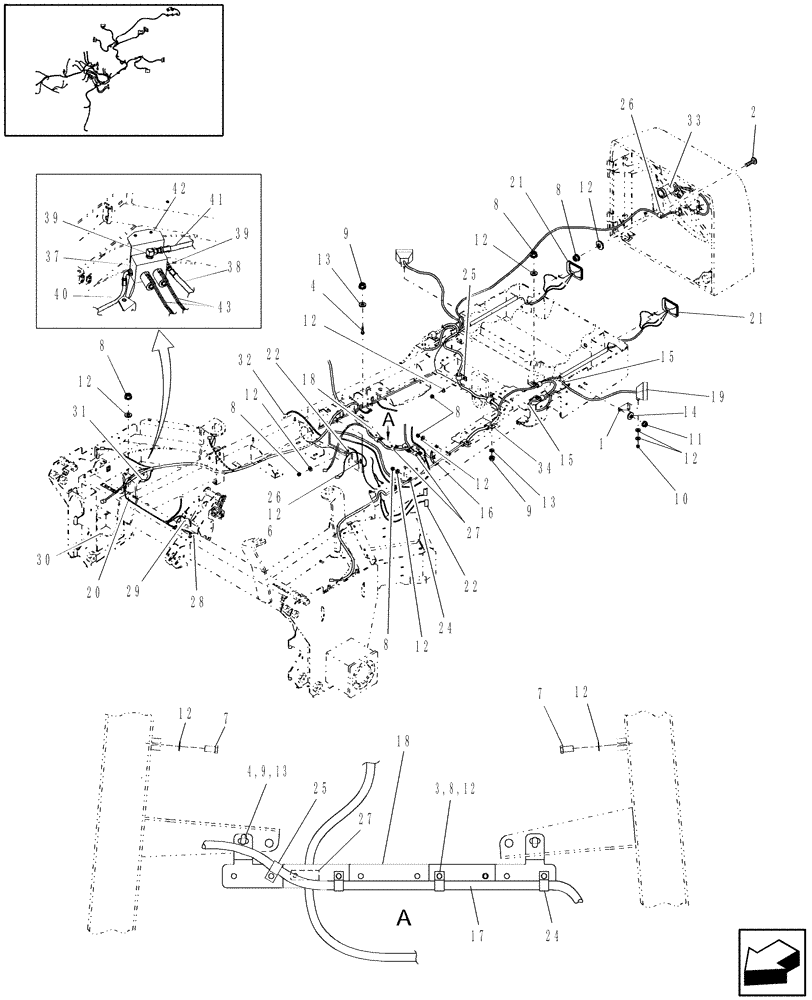

Запчасти Case IH WDX1202S (06.03[2]) - REAR FRAME ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

87013873

ANGLE

2шт.

First Year Production Only; Later Welded

1шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

6шт.

5

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

54шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

12шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

11

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

15

86500924

GROMMET

5шт.

16

87039586

HARNESS

Battery, Ground

1шт.

17

87038496

HARNESS

Main Frame; For Use W/Draper Heads, See Also Ref.s 35 & 36, Serial Range: -Y7B660500

1шт.

Prior To 12/2006, SN Format Different Prior to End SN

1шт.

17

87575160

WIRE HARNESS

Main Frame; For Use W/Draper Heads, See Also Ref.s 35 & 36, Start Serial: Y7B660500

1шт.

From 12/2006

1шт.

17

87575164

WIRE HARNESS

Main Frame, Draper Ready; Consists Of: Ref. 17, 35, & 36

1шт.

18

87030412

SUPPORT

1шт.

19

86705728

LAMP

Includes: Bulb

2шт.

19

87026085

BULB

50W 12V

2шт.

20

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

86631651

TAIL LAMP

Bulb NSS

2шт.

22

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

24

515-23254

CLAMP,1", Insul, 3/8" Bolt

4шт.

25

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

26

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

27

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

28

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Windrow Shield

1шт.

29

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Propulsion Cylinder

1шт.

30

9825943

SENSOR

Ground Speed

1шт.

31

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

32

86550810

SWITCH

Hyd. Reservoir

1шт.

33

87541053

WIPER MOTOR

Motor, Wiper

1шт.

33

87488680

ELECTRIC MOTOR

Also See Fig. 08.06(2), Start Year: 01-JUN-09

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Also See Fig. 08.06(2) Shaft OD 12mm

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

34

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

35

87039573

HARNESS

DR-F

1шт.

For Use W/Draper Heads

1шт.

Not Shown

1шт.

36

87039579

HARNESS

LT-F

1шт.

For Use W/Draper Heads

1шт.

Not Shown

1шт.

37

87545543

FLOW DIVIDER

Valve, Flow Divider

1шт.

Draper Option

1шт.

38

86979915

HOSE,12.70 mm ID x 3378.20 mm, SAE 100R16

1шт.

Draper Option

1шт.

39

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

Draper Option

1шт.

40

87041666

HOSE ASSY.

1шт.

Draper Option

1шт.

41

87518211

HOSE ASSY.

1шт.

Draper Option

1шт.

42

87517567

ANGLE

1шт.

Draper Option

1шт.

43

87528544

WIRE HARNESS

1шт.

Part Of Dealer Installed Draper Kit. Factory Installed Option Uses Ref. 17 Instead

1шт.
