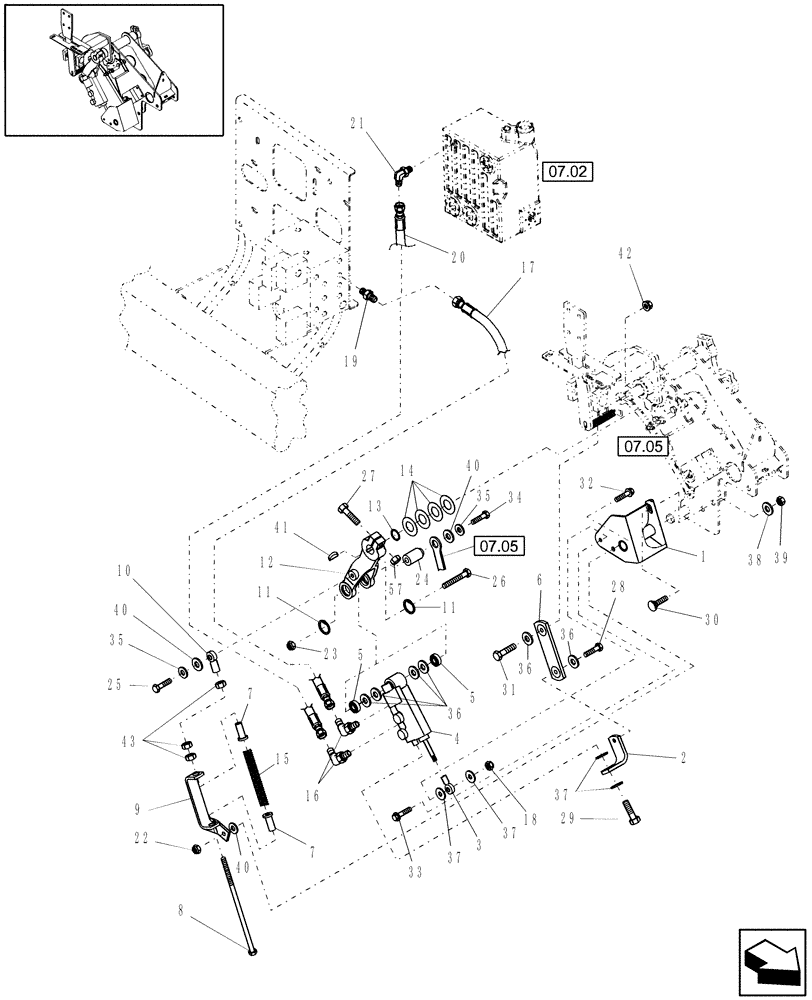

Запчасти Case IH WDX1202S (03.12) - GROUND SPEED SERVO (03) - TRANSMISSION

1

86974192

CHANNEL

1шт.

2

86974191

ANGLE

1шт.

3

221665

EYE,5/16" - 24

1шт.

4

86510015

HYDRAULIC CYLINDER,Double Acting, 9.45mm Rod, mm Stroke

Refer To Component Breakdown Figure 03.13

1шт.

5

9847562

BALL BEARING,9.99mm ID x 30mm OD x 9mm W

2шт.

6

86506697

CONNECTING LINK

1шт.

7

86516886

SPACER

2шт.

8

86974189

ROD ASSY.

1шт.

9

857205

SUPPORT

1шт.

10

86500348

BALL JOINT HEAD,3/8" - 24

1шт.

11

100-21118

SNAP RING,1.188", Int, #118

2шт.

12

86974123

ARM

1шт.

13

100-11100

SNAP RING,#100, Ext

1шт.

14

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

4/ARшт.

15

855789

SPRING

1шт.

16

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. O-Ring

2шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

86979926

HOSE ASSY.

1шт.

18

231-4145

NUT,5/16"-18, GB

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87045897

HOSE,9.65 mm ID x 1346.2 mm, SAE 100R16

1шт.

21

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

232-4146

NUT,3/8"-16, GC

2шт.

23

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

24

87044446

SPACER

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

26

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

1шт.

27

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

29

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

30

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

31

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

32

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

33

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

34

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

36

9790712

WASHER,10.06mm ID x 12.62mm OD x 1.52mm Thk

Hardened, 3/8"

6шт.

37

495-21038

WASHER,5/16"

4шт.

38

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

39

425-288

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

40

495-21044

WASHER,3/8"

3шт.

41

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

1шт.

42

86619802

FLANGE NUT,M10 x 1.5, Cl 8

Flg, CL 8, M10

1шт.

43

86509310

NUT,3/8" - 24, Gr 5

3шт.
