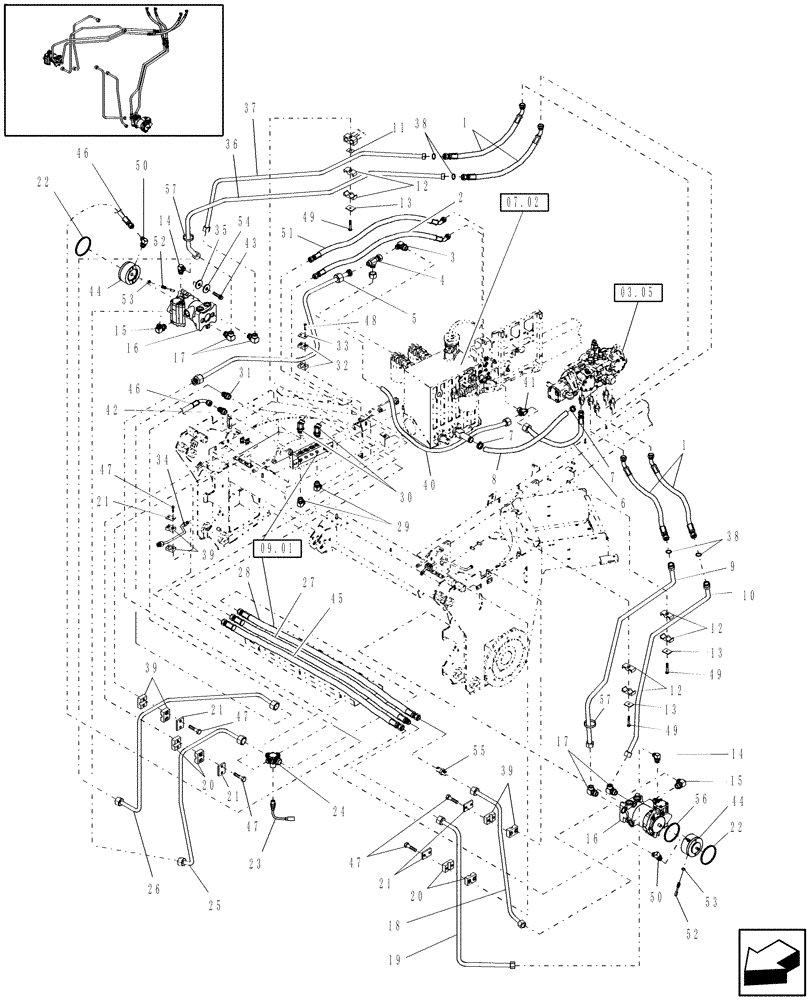

Запчасти Case IH WDX1202 (03.04[02]) - HYDRAULIC GROUND DRIVE (03) - TRANSMISSION

1

86705061

HOSE ASSY.,19.05mm ID x 533.4mm L, SAE 100R13

4шт.

2

87017544

HOSE ASSY.

1шт.

3

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Includes: O-Ring

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

5

87011227

HYD TUBE

1шт.

6

87024632

HOSE,15.88 mm ID x 469.90 mm, SAE 30R2

1шт.

7

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

Prior To TY07

1шт.

7

87301358

HOSE CLAMP,1.00/1.875 HD Worm

2шт.

From TY07

1шт.

8

87017795

HOSE,1.25" ID x 43.00", SAE 100R4

1шт.

Prior To TY07

1шт.

8

87573355

HOSE

Hose

1шт.

From TY07

1шт.

9

86974879

HYD TUBE

1шт.

10

86974878

HYD TUBE,19.30 mm ID x 25.40 mm OD

1шт.

11

86564909

WASHER

1шт.

12

86900725

CLAMP

Twin, 1"

3шт.

13

87053042

PLATE

Twin Cover

3шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Includes: O-Ring

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

87349714

HYDRAULIC MOTOR

Refer To Component Breakdown, Fig. 03.04(01.2)

2шт.

87349714R

REMAN-HYD MOTOR

WDX1202, WDX1902, WDX2302,

2шт.

87349714C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes: O-Rings

4шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

18

86974211

HYD TUBE

1шт.

19

87011231

HYD TUBE,0.625" OD

1шт.

20

86900724

CLAMP

Plastic, 1/2"

2шт.

21

86900726

COVER

Plate

5шт.

22

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

23

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

24

86978785

CROSS

1шт.

25

86974206

TUBE,15.90 mm OD

1шт.

26

87011232

HYD TUBE

1шт.

27

86979918

HOSE,9.52 mm ID x 2413.00 mm, SAE 100R6

1шт.

28

86979928

HOSE,12.70 mm ID x 2387.60 mm, SAE 100R1 Type AT, SAE 100R3

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

30

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: O-Ring

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

2шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

32

86900723

CLAMP

Plastic, 3/4"

1шт.

Used Only On Early Production Units

1шт.

33

86900727

COVER

Plate, Cover-3

1шт.

Used Only On Early Production Units

1шт.

34

86974207

TUBE,12.57 mm ID x 15.87 mm OD

1шт.

35

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

4шт.

36

86974876

HYD TUBE

1шт.

37

86974877

HYD TUBE,19.30 mm ID x 25.40 mm OD

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

39

87040663

CLAMP

Plastic, 5/8"

3шт.

40

87022628

TUBE,19.05 mm OD

1шт.

41

218-596

TEE,1 1/16"-12 37 Degree

1шт.

42

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes: O-Ring

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

87041225

BOLT

12 Pt., 1/2" x 5"

4шт.

44

87038584

BRAKE ASSY.

Modular

2шт.

44

87055273

SCREW,5/16" x 1 17/64"

Bleeder

1шт.

44

87055272

KIT

O-Ring

1шт.

45

86900548

HOSE,9.52 mm ID x 3048.00 mm, SAE 100R6

1шт.

46

87017787

HOSE ASSY.

1шт.

47

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

6шт.

48

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

49

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

50

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. O-Ring

2шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

51

86900546

HOSE ASSY.

1шт.

52

9825943

SENSOR

2шт.

53

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

54

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

55

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

56

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

57

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.
