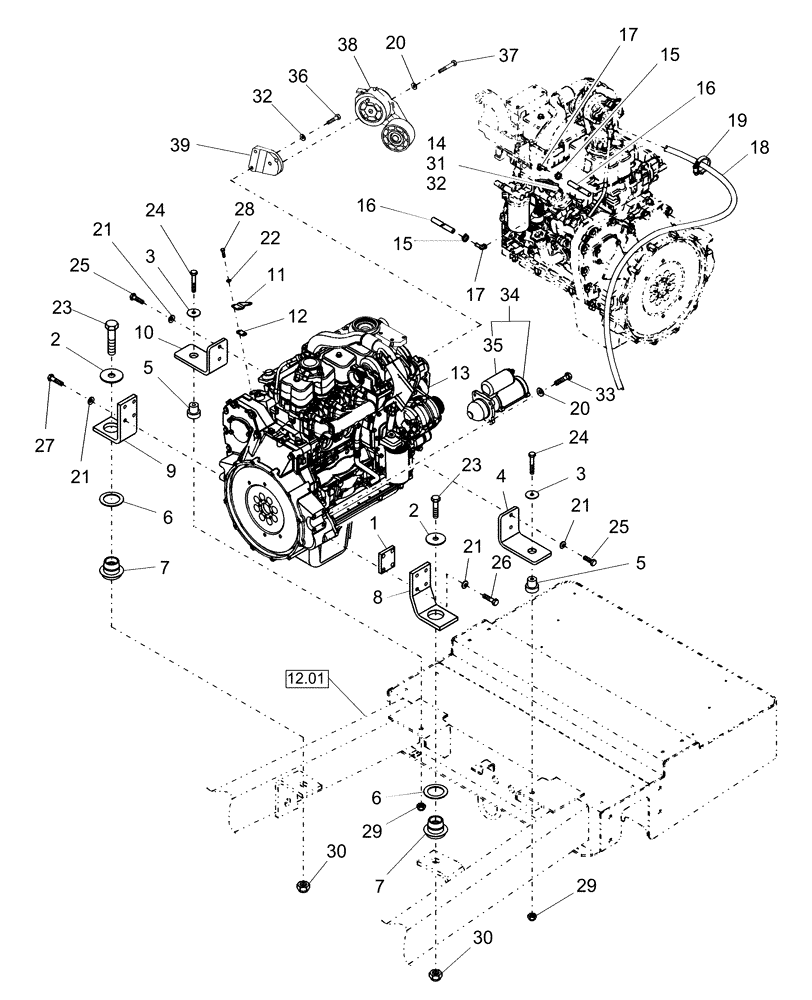

Запчасти Case IH WDX1202 (02.10[2]) - ENGINE MOUNTS & STARTER (02) - ENGINE EQUIPMENT

1

87025863

SPACER

1шт.

2

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

M25.9 ID x 101.6 OD x 4.8 Thk

2шт.

3

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

4

87025859

MOUNTING PARTS

Rear LH

1шт.

5

86541277

INSULATOR

2шт.

6

9823910

WASHER

M65 ID x 95 OD x 3.5 Thk

2шт.

7

86550697

INSULATOR

2шт.

8

87025862

MOUNTING PARTS

Front LH

1шт.

9

87025861

MOUNTING PARTS

Front RH

1шт.

10

87025860

MOUNTING PARTS

Rear RH

1шт.

11

87017349

BRACKET

1шт.

12

87017351

PLATE

1шт.

13

86640100

ENGINE

1шт.

WDX1202 & WDX1202S

1шт.

13

86640100R

REMAN-REPLACEMENT EN,94kW, 4.5L, 4 Cylinders, W/ Turbocharger

ENGINE (EXCHANGE) WDX1202, WDX1202S

1шт.

13

86640100C

CORE-ENGINE

Return Number

1шт.

13

86637947

ENGINE

1шт.

WDX1002S

1шт.

14

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

16

86561591

FLEXIBLE HOSE

L = 8 Ft.

1шт.

Production hoses are 7' & 9.25' long

1шт.

17

87400460

90 ELBOW

Incl. Plastic Locking Ring

2шт.

18

87052750

HOSE,0.75" ID x 45.00", SAE 30R2/100R6

1шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

23

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

26

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

29

232-4148

NUT,1/2"-13, GC

2шт.

30

280286

NUT,1"-8, GB

2шт.

31

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

33

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

34

87577368

STARTER MOTOR,3 hole

Starter, 4.2 KW

1шт.

34

87577368R

REMAN-STARTER,3 hole

WDX1002S, WDX1202, WDX1202S, WD1903, WD2303

1шт.

34

87577368C

CORE-STARTER

Return Number

1шт.

35

82012426

KIT

Cover/Solenoid Seal

1шт.

36

2852247

BOLT,Hex, M8 x 1.25 x 30mm

2шт.

Prior To 11/15/06

1шт.

36

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

From 11/15/06

1шт.

37

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

Prior To 11/15/06

1шт.

37

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

From 11/15/06

1шт.

38

2852161

BELT TENSIONER

(Pulley Width = 33mm)

1шт.

Prior To 11/15/06

1шт.

38

87053620

TENSIONER

(Pulley Width = 39mm)

1шт.

From 11/15/06

1шт.

39

2852246

BELT TENSIONER

1шт.

Prior To 11/15/06

1шт.

39

87564426

SUPPORT

Support

1шт.

From 11/15/06

1шт.
